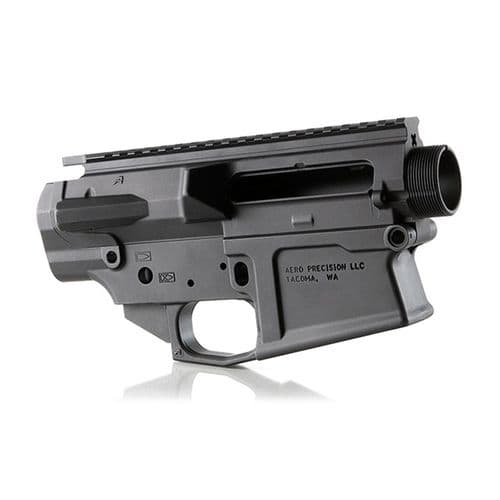

Product Features & Specifications

Our M5 receivers are engineered to match flawlessly, providing the operator superior performance and accuracy in a durable and dependable platform

Upper Receiver Features:

Platform: M5 (.308)
Material: Machined from 7075-T6 forged aluminum
Coating: Matte black hard-coat anodized Mil 8625 Type 3 Class 2
M4 Feedramps
.2795" takedown pin holes (DPMS size)
DPMS High Profile (.210) Tang
Accepts standard DPMS .308 components
Lazer engraved T-marks

Lower Receiver Features:

Platform: M5 (.308)
Material: Machined from 7075-T6 forged aluminum
Coating: Matte black hard-coat anodized Mil 8625 Type 3 Class 2
Markings: "Cal Multi"
Works with standard DPMS 308 components and magazines
Rear takedown pin detent hole is threaded for a 4-40 set screw
Bolt catch is threaded for a screw pin (no roll pin needed)
Integrated trigger guard
Selector markings will work with 45, 60 or 90 degree safety selectors
Accepts Battle Arms Development short throw safety selectors, but will work with any standard selector
No gap with aftermarket pistol grips

SKU: APCS100151S
