Product Features & Specifications

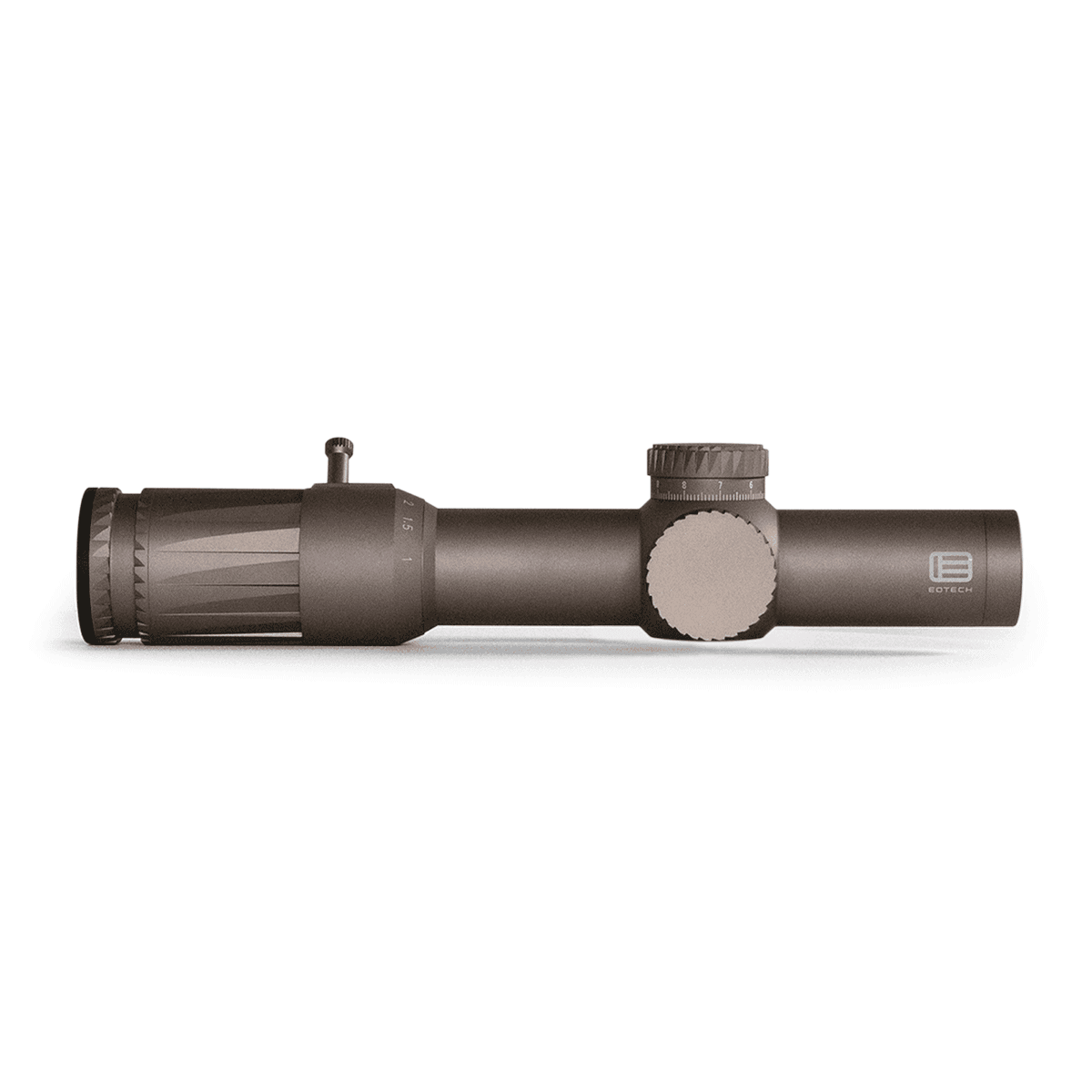

Eotech VDU110FFSR4TAN Vudu Tan 1-10x28mm 34mm Tube, 1 MOA Illuminated Red SR4 MOA Reticle

EOTECHs Vudu 1-10x28 offers a robust 34mm, one-piece aircraft aluminum tube and single-piece eyepiece that includes a removable throw-lever for fast changes in magnification.The low profile elevation turret includes a push/pull locking system and a capped windage turret for a secure zero.

The illuminated, glass-etched reticle and first focal plane design allows for distance estimation at any magnification and lighting condition.The SR-4 incorporates the iconic EOTECH illuminated speed ring along with a hashmarked inner crosshair reticle that uses MOA subtension lines for ranging holdover and wind compensation.

With a 1 MOA center aiming dot, the clean sight picture provides improved down range visibility while still allowing the full use of the horizontal and vertical stadia lines for hold-overs and wind calls.The Vudu 1-10x contains an auto-shutdown feature that will automatically turn the illumination off after approximately 2 hours of inactivity (no button pushes).

This preserves battery life and eliminates the chance of accidentally leaving the illumination on.

Brand	Eotech
Model	Vudu
Magnification	1-10x
Tube Diameter	34mm
Color	Tan
Reticle	Illuminated Red SR4 MOA
Material	Aircraft Grade Aluminum
Firearm Type	Rifle
Field of View	116.6 x 11.7 ft @ 100 yds
Adjustment Size	.25 MOA
Focal Plane	First
Objective	28mm
Brightness Settings	10 Day
Eye Relief	3.27" - 3.90"
Battery Size	CR2032
Windage Adjustment	80 MOA
Length	10.63"
Proofs	Fog / Shock / Water Resistant
Dot Size	1 MOA
Elevation Adjustment	100 MOA
Includes	Lens Cloth / Manual / Throw Lever
Optic Coating	Anti-Reflection
Weight	21.30 oz
Windage Elevation	Adjustable
SKU	157431
UPC	672294110248
MPN	VDU110FFSR4TAN
