Product Features & Specifications

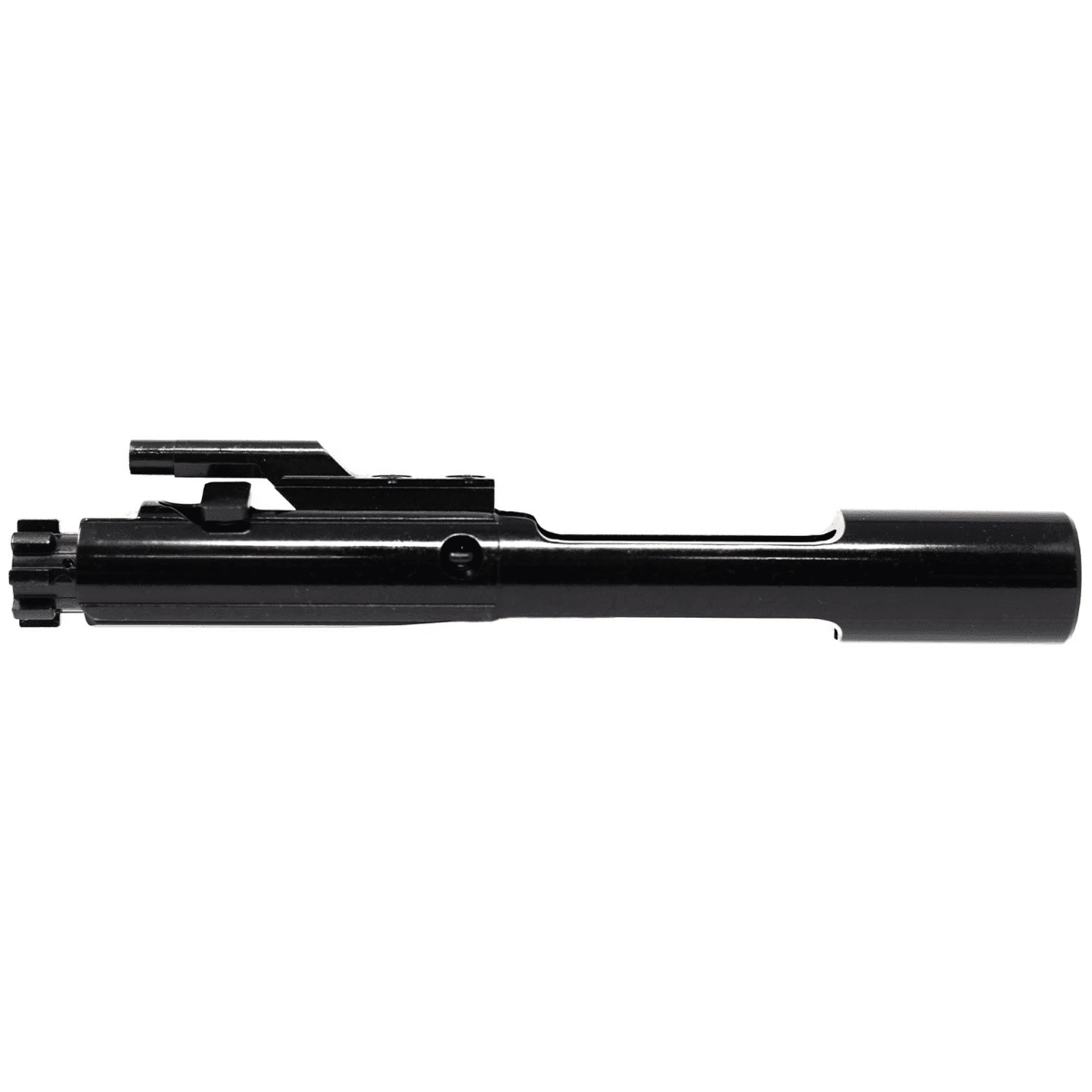

FAXON FF76239GBCGCNITRIDE TYPE 1 762X39 9310 BCG

Seeing "MIL-SPEC" as just the starting point, Faxon set out to ensure the best options are available for our demanding customers.

Improvements include using 9310 tool steel for the bolt, and nitriding the assembly to increase surface hardness, decrease resistance, and have superior corrosion resistance compared to typical chrome and phosphasted bolt carrier groups. All bolts are fully MPI tested to ensure the material is sound and without defects. Bolt lugs are chamfered 45 degrees to ensure reliable action for even the highest pressure hand loads and fast lightweight actions.

Faxon Bolt Carrier Groups are Superfinished to reduce friction, increase smoothness of operation, and reduce fouling. Further, they are full-Auto rated and maintain the trip for full-auto fire control groups and new multi-stage trigger systems. Gas keys use grade 8 fasteners and are fully staked for a lifetime of service.

*Not Compatible w/ Faxon 6.5 Grendel Barrels

Detailed Specifications:

• 9310 Tool Steel Bolt
• Full MIL-SPEC Heat Treatment
• Shot Peened to MIL-SPEC
• Magnetic Particle Inspection (MPI)
• Back of Lugs Chamfered for Reliability
• Spring, Insert, & "Crane" O-Ring Installed
• Salt Bath Nitrided Bolt & Carrier
• S7 Extractor
• Superfinished Carrier Body
• Full Auto Compatible
• Forward Assist Serrations

Brand	Faxon Firearms
Finish	Black Nitride
SKU	181954
UPC	816341024274
MPN	FF76239GBCGCNITRIDE
