Mastering Precision Reloading: The Hornady Lock-N-Load Headspace Comparator Kit (HK66) – An Essential Guide for Serious Reloaders

For anyone serious about rifle ammunition reloading, whether you're a competitive shooter chasing sub-MOA groups, a dedicated hunter seeking consistent performance in the field, or a meticulous handloader looking to maximize brass life and ensure utmost safety, understanding and controlling cartridge headspace is paramount. The Hornady Lock-N-Load Headspace Comparator Kit with Body (HK66) emerges as an indispensable tool, specifically engineered to provide the critical measurements needed to achieve these goals.

What exactly is headspace, and why is it so vital? In simple terms, headspace refers to the distance between the face of the bolt and a specific point on the chamber that supports the cartridge. For bottleneck rifle cartridges, this measurement is typically taken from the bolt face to a datum line on the shoulder of the case. Incorrect headspace can lead to a multitude of issues, ranging from minor annoyances to potentially dangerous scenarios. For instance, excessive headspace can result in premature case stretching, leading to case head separation – a severe safety hazard – or inconsistent ignition, which directly impacts accuracy. Conversely, insufficient headspace can prevent the bolt from closing fully, making the rifle unsafe to fire, or cause excessive pressure build-up.

This is precisely the problem the Hornady Lock-N-Load Headspace Comparator Kit is designed to solve. It provides a reliable, repeatable method to measure these critical dimensions, allowing handloaders to:

• Extend Brass Life Significantly: By ensuring proper shoulder setback during resizing, you prevent over-working your brass. Each time a case is fired, it expands to fit the chamber. When resizing, the shoulder needs to be "bumped" back just enough to allow the cartridge to chamber easily, but not so much that the case is excessively stretched. This precise control reduces metal fatigue and dramatically increases the number of reloads you can get from each piece of brass, saving you money and time.
• Improve Accuracy and Consistency: Uniform cartridge dimensions lead to uniform ignition and consistent bullet seating, which are cornerstones of superior accuracy. When headspace is precisely controlled, every round chambers identically, contributing to tighter groups downrange.
• Enhance Reloading Safety: Preventing excessive headspace or insufficient shoulder setback mitigates risks associated with dangerous pressure levels or catastrophic case failures, protecting both the shooter and the firearm.

Why the Hornady Lock-N-Load Headspace Comparator Kit Stands Out

The Hornady Lock-N-Load Headspace Comparator Kit is not just another reloading gadget; it's a precision instrument built on a foundation of reliability and user-friendliness, hallmarks of Hornady's commitment to quality reloading tools. The system features:

• Quick and Easy Measurement: The core of the system is its ability to measure variations in brass before and after firing, or, more critically, before and after resizing. This allows for a direct comparison between your fire-formed brass (which represents your chamber's specific dimensions) and your resized brass. This comparison is key to determining the optimal "shoulder bump."
• Comprehensive Bushing Set: The kit includes five precision-machined bushings, providing unparalleled versatility. These bushings are designed to accommodate nearly all bottleneck cases, from the diminutive .17 Remington up through the powerful belted magnums. This broad compatibility means one kit can serve the needs of a diverse collection of rifle cartridges, making it a valuable, long-term investment for any reloader. For specific calibers like Ackley Improved chambers, the same bushing size as the parent case is utilized, simplifying the process.
• The Lock-N-Load Advantage: As part of the Lock-N-Load ecosystem, this comparator body features the quick-change bushing system, allowing for rapid and effortless transitions between different bushings. This efficiency saves valuable time at the reloading bench, especially when working with multiple calibers or performing extensive brass preparation.
• Datum Line Measurement: Unlike simple overall length measurements, the Hornady Headspace Comparator measures from a specific point on the case shoulder (the datum line), which is the industry-standard and most accurate method for assessing headspace for bottleneck cartridges. This scientific approach ensures that your adjustments are precise and meaningful.

Who Needs This Essential Reloading Tool?

If you've ever asked yourself questions like "How do I make my reloads more accurate?", "Why am I experiencing pressure signs with my reloaded ammunition?", or "What's the best way to extend the life of my expensive rifle brass?", then the Hornady Lock-N-Load Headspace Comparator Kit is your answer. It's designed for:

• Precision Rifle Shooters: Achieving sub-minute-of-angle (MOA) accuracy requires obsessive attention to detail. Consistent cartridge dimensions, facilitated by precise headspace control, are fundamental to repeatable performance.
• Long-Range Enthusiasts: At extended distances, even minuscule variations in ammunition can be magnified. This tool helps eliminate one more variable, leading to tighter groups at 600 yards and beyond.
• Hunters Seeking Reliability: When that one critical shot matters, you need absolute confidence in your ammunition. Properly headspaced cartridges ensure reliable chambering and consistent ballistic performance.
• Economic-Minded Reloaders: Brass is a significant component of reloading costs. By extending brass life, this comparator pays for itself many times over.
• Safety-Conscious Handloaders: Understanding and controlling headspace is a core safety practice that every reloader should adopt.

Practical Applications and How to Use the Hornady Headspace Comparator

Integrating the Hornady Lock-N-Load Headspace Comparator into your reloading process is straightforward and yields immediate benefits. Here are common use cases:

1. Establishing Your Baseline (Fire-Formed Cases):
   • Begin by firing a few rounds of your new, unfired factory ammunition in your rifle.
   • Measure these "fire-formed" cases using the appropriate Hornady comparator bushing and your dial or digital caliper. This measurement represents the actual dimensions of your rifle's chamber. This is your critical baseline. Record this measurement meticulously.
2. Optimizing Resizing (Shoulder Bump):
   • After cleaning your brass, run a case through your full-length resizing die.
   • Measure the resized case.
   • Compare this measurement to your fire-formed baseline. Your goal is to "bump" the shoulder back just enough – typically 0.001" to 0.002" for bolt-action rifles, or slightly more (0.003" to 0.005") for semi-automatic rifles to ensure reliable feeding and extraction.
   • Adjust your resizing die incrementally until you achieve this precise setback. This minimal bump prevents excessive case stretching, the primary cause of case head separation and short brass life.
3. Troubleshooting Chambering Issues:
   • If you're experiencing difficulty chambering a round, measure the cartridge's headspace. Comparing it to your known chamber dimensions will quickly tell you if insufficient shoulder setback is the culprit.
4. Assessing Die Performance:
   • Compare the shoulder setback achieved by different resizing dies. This can help you select the most consistent die for your needs.
5. Quality Control During Production:
   • Periodically check a sample of your resized cases during a reloading session to ensure your die setting hasn't shifted and that consistency is maintained.

The Science of Shoulder Bump and Why it Matters

The concept of "shoulder bump" is central to precision reloading with bottleneck cartridges. When a round is fired, the brass expands, "fire-forming" to the specific dimensions of your rifle's chamber. If you simply resize the case back to SAAMI minimums (which many full-length sizing dies are set to do), you are often sizing the case much more than necessary for your specific chamber. This over-sizing introduces stress on the brass, particularly at the web area just above the case head, where case head separations typically occur.

By using the Hornady Headspace Comparator, you measure your fired brass, then adjust your sizing die to only "bump" the shoulder back a few thousandths of an inch (0.001-0.002" for bolt guns, 0.003-0.005" for semi-autos). This minimal bump allows the cartridge to chamber smoothly in your rifle while minimizing the work done on the brass, drastically extending its life and preventing premature fatigue. This also contributes to better concentricity and more uniform neck tension, both of which are critical for accuracy.

Beyond Headspace: A Holistic View of Reloading Precision

While the Hornady Lock-N-Load Headspace Comparator Kit is a powerful standalone tool, its full potential is realized when integrated into a comprehensive approach to precision reloading. It complements other critical measurements and practices:

• Case Trimming: Ensuring consistent case length prevents issues like crimping the bullet in the rifling or excessive pressure.
• Concentricity Checks: Measuring runout helps identify bent cases or incorrectly seated bullets that can negatively impact accuracy.
• Bullet Seating Depth (COL/CBTO): Optimizing bullet seating depth (Cartridge Overall Length or Cartridge Base To Ogive) for your specific rifle and bullet can unlock significant accuracy improvements.
• Powder Charge Consistency: Using a precise powder measure and scale ensures consistent velocity and pressure.

The Hornady Headspace Comparator plays a fundamental role in laying the foundation for all these subsequent steps, ensuring that the primary dimensions of your case are correct and safe before you even consider powder and bullet seating.

Hornady: A Legacy of Reloading Excellence

Hornady has long been a trusted name in the shooting sports industry, known for its innovative bullet designs and high-quality reloading equipment. Their commitment to precision and performance is evident in every tool they produce, including the Lock-N-Load Headspace Comparator. When you choose Hornady, you're investing in a brand with a proven track record, backed by decades of experience in empowering handloaders to produce the best possible ammunition. This particular kit, with its robust construction and intuitive design, exemplifies that dedication to empowering reloaders to achieve optimal results.

For serious reloaders seeking to elevate their craft, maximize brass longevity, and ensure the utmost safety and accuracy in their handloads, the Hornady Lock-N-Load Headspace Comparator Kit (HK66) is an indispensable asset. It provides the clarity and control needed to precisely manage cartridge dimensions, leading to more consistent, accurate, and safer ammunition.

This essential reloading tool, along with a full range of Hornady products and other premium shooting supplies, is readily available to enhance your reloading bench. These products are all available at DEGuns.

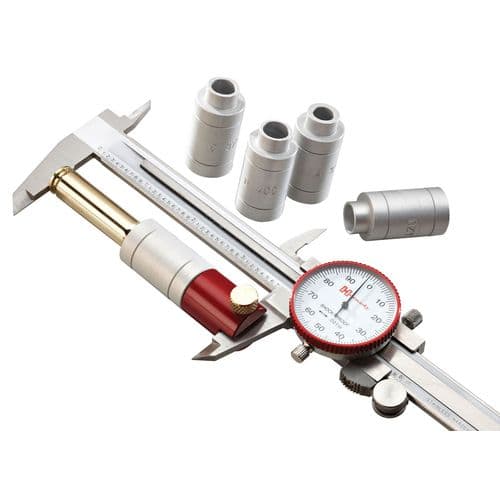

Hornady Lock-N-Load Headspace Comparator Kit (HK66) Overview

Feature	Detail
Brand	Hornady
Series	Lock-N-Load Headspace Kit w/ Body
Model	Lock-N-Load
Caliber Compatibility	.17 Rem Through Belted Magnums
Firearm Type	Rifle (Primarily)
Included Components	Comparator Body, 5 Bushing Set
Bushing Diameter	Bushing Blank with .188 Diameter Hole
SKU	123409
UPC	090255704846
MPN	HK66
