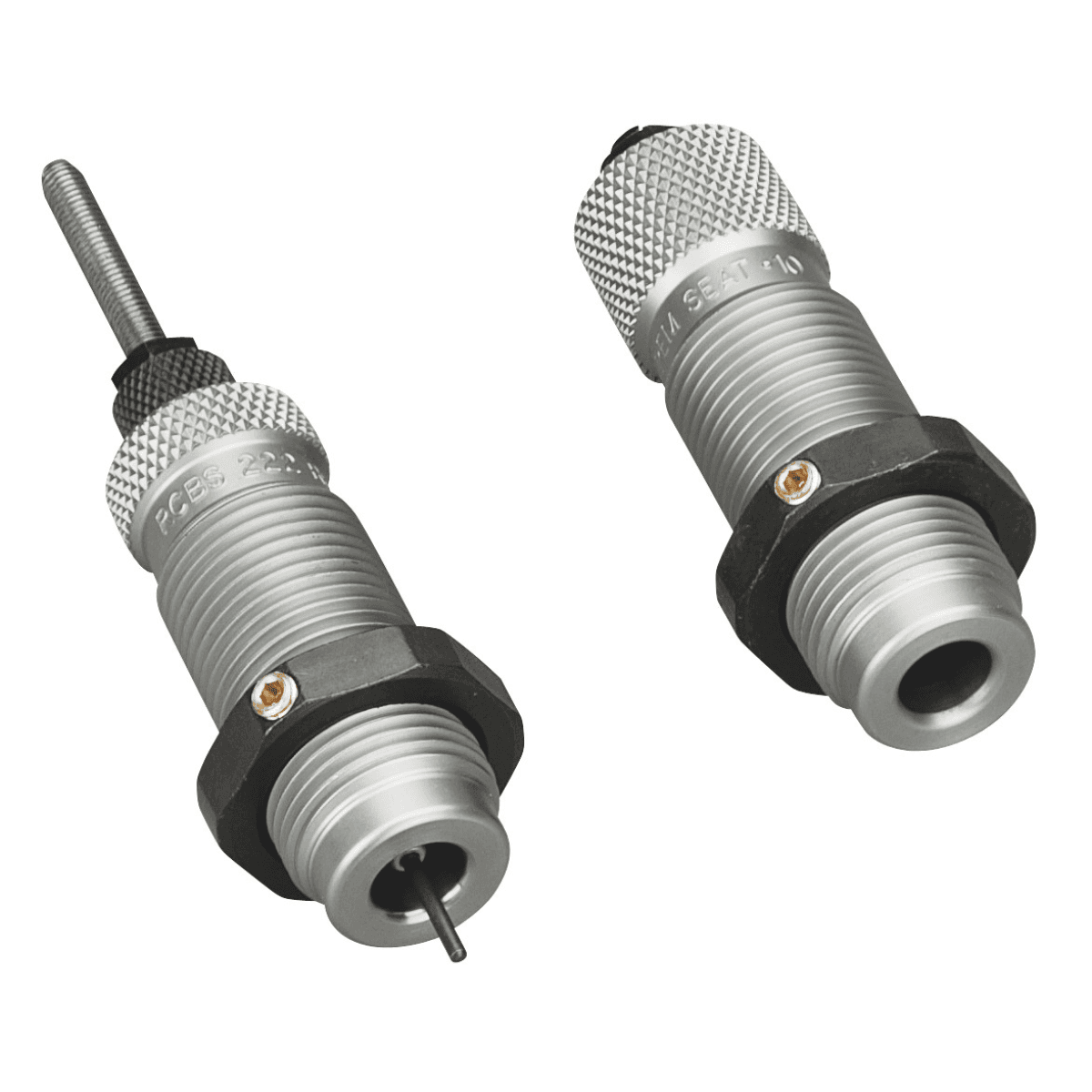

Mastering .240 Weatherby Magnum Reloading with the RCBS Full-Length 2-Die Set Group D

Are you a dedicated handloader striving for unparalleled precision and consistency in your .240 Weatherby Magnum ammunition? Do you demand components that ensure both safety and peak performance from your meticulously crafted cartridges? For serious rifle shooters, competitive marksmen, and avid hunters, the quality of their reloading dies is paramount. Achieving the tight groups and reliable feeding that define superior rifle ammunition begins with precise case preparation and bullet seating. The RCBS 33201 Full-Length 2-Die Set Group D is engineered to meet these exacting standards, offering the reliability and precision that experienced reloaders expect from a trusted name like RCBS.

This comprehensive two-die set is specifically designed for reloading bottleneck rifle cases, a common configuration for high-performance cartridges like the .240 Weatherby Magnum. It provides the essential tools needed to restore fired brass to its optimal dimensions and accurately seat bullets for consistent performance shot after shot.

Why Choose a Full-Length Sizer Die for Your .240 Weatherby Magnum Brass?

Many reloaders, especially those producing ammunition for bolt-action rifles, often inquire, "Should I full-length size or neck size my brass?" While neck sizing can extend brass life for specific rifles, full-length sizing is often preferred and, in many cases, necessary for reliable feeding and chambering across various firearms or after multiple firings.

The Full-Length Sizer Die within this RCBS set addresses a critical step in the reloading process: returning your fired brass to SAAMI (Sporting Arms and Ammunition Manufacturers' Institute) minimum cartridge dimensions. Fired cases expand to fill the chamber of your firearm, and this expansion can vary based on chamber dimensions and pressure. A full-length sizer die ensures that every case is resized uniformly, allowing for smooth feeding and consistent chambering in any firearm chambered for .240 Weatherby Magnum, not just the one it was originally fired in. This is particularly vital for hunters who may rely on their reloads in different rifles or during high-stakes situations where a failure to chamber is unacceptable.

Here’s a closer look at the key features and benefits of the Full-Length Sizer Die:

• Exterior Case Sizing: The die precisely sizes the outside of the case body, bringing it back to factory specifications. This corrects any expansion that occurred during firing, ensuring the case will fit snugly and reliably into the chamber without undue force.
• Expander-Decapping Unit: Integrated into the sizer die, this crucial component serves two vital functions:
  1. Decapping: It efficiently removes the spent primer from the primer pocket, preparing the case for a new primer. This is a swift and essential step in the reloading process, ensuring that the primer pocket is clean and ready.
  2. Neck Expansion: After sizing, the case neck is typically undersized. The expander button passes through the neck, expanding it to the correct internal diameter to securely accept a new bullet without deforming it. This meticulous expansion is critical for consistent bullet tension, which directly impacts accuracy.
• Vented Design: A subtle yet significant feature of this die is its vented body. These vents serve a dual purpose:
  1. Prevents Case Damage from Trapped Air: As the case enters the die, air can become trapped, potentially causing dimples or dents on the case shoulder, known as "hydraulic dents." The vents allow this trapped air to escape, safeguarding your valuable brass from cosmetic and structural imperfections.
  2. Manages Excessive Lubricant: Over-lubrication can also lead to hydraulic dents. The vents provide an escape route for any excess case lubricant, ensuring smooth operation and preventing pressure buildup that could damage your cases. This attention to detail reflects RCBS's commitment to brass longevity and ease of use.
• Minimal Headspace Tolerance: RCBS engineers this full-length sizer die to hold headspace dimensions to minimal tolerances. What does this mean for the reloader? It prevents changing the case body length during the sizing process. Maintaining precise headspace is critical for several reasons:
  • Consistency: Ensures uniform case dimensions, which is a cornerstone of accurate ammunition.
  • Brass Life: Prevents overworking the brass, particularly at the web area, thereby extending the number of times you can safely reload a case.
  • Safety: Reduces the risk of excessive headspace, which can lead to dangerous pressure issues or case head separations.

For those asking, "How do I ensure my .240 Weatherby Magnum reloads feed smoothly and reliably in any rifle?" The RCBS Full-Length Sizer Die is your answer. Its design guarantees that your resized cases will meet industry standards, providing peace of mind whether you're at the range or in the field.

Achieving Consistent Bullet Seating with the RCBS Seater Die

Once your brass is prepped and primed, the next critical step is seating the bullet. This process directly impacts the overall length of your cartridge, bullet concentricity, and ultimately, your ammunition's accuracy. The Seater Die with Bullet Seater Plug included in this RCBS set is crafted to perform this task with exceptional precision.

Key attributes of the Seater Die:

• Precise Bullet Seating: The die guides the bullet straight into the case mouth, ensuring it is seated to the desired depth. Consistent seating depth is vital for maintaining uniform pressure and velocity, leading to tighter groups on target. The included bullet seater plug is specifically designed for the common ogive (shape) of .240 Weatherby Magnum bullets, minimizing deformation and ensuring a straight, concentric seat.
• Integrated Roll Crimper: A distinguishing feature of this RCBS Seater Die is its built-in roll crimper. This intelligent design allows you to secure the bullet in the case at the exact moment it is seated, streamlining the reloading process.
  • What is a Roll Crimp? A roll crimp is a type of crimp where the mouth of the case is rolled inward into a cannelure (a groove around the bullet) or onto the bullet itself.
  • Benefits for Rifle Ammunition: While not always necessary for light-recoiling cartridges, a roll crimp is highly beneficial for rifle rounds, especially those with significant recoil, those used in tube magazines, or those transported roughly. It prevents the bullet from being pushed further into or pulled out of the case due to recoil or handling. This maintains the cartridge's overall length (OAL), which is crucial for consistent pressure and safe chambering.
  • Simultaneous Operation: By combining seating and crimping into one step, the RCBS die simplifies your reloading workflow, saving time and reducing the number of operations required per cartridge. This efficiency is highly valued by reloaders who prioritize both speed and quality.

For reloaders wondering, "What is the best way to secure my bullets in .240 Weatherby Magnum cases for maximum accuracy and safety?" The RCBS Seater Die, with its integrated roll crimper, offers a robust and reliable solution.

The RCBS Advantage: Crafting Superior .240 Weatherby Magnum Ammunition

Investing in quality reloading dies like the RCBS Full-Length 2-Die Set Group D (UPC: 076683332011) translates directly into tangible benefits for the handloader:

1. Enhanced Accuracy: The precision engineering of both the sizer and seater dies contributes to consistent case dimensions and bullet seating depth. This uniformity is the bedrock of accurate ammunition, allowing you to achieve smaller group sizes and more predictable ballistic performance.
2. Unwavering Consistency: Every stage of the reloading process, from decapping to final crimping, is controlled to minimize variation. This consistency in your reloaded ammunition means reliable velocity, predictable point of impact, and overall dependable performance in the field or on the range.
3. Extended Brass Life: By properly resizing cases to SAAMI specifications and preventing over-working, the RCBS Full-Length Sizer Die helps maximize the number of times you can safely reload your precious .240 Weatherby Magnum brass. This significantly reduces your long-term reloading costs.
4. Cost Savings: While the initial investment in quality reloading equipment is necessary, handloading your own ammunition for cartridges like the .240 Weatherby Magnum offers substantial long-term cost savings compared to purchasing factory-loaded ammunition. This die set is a foundational component for realizing those savings.
5. Unparalleled Control: Handloading puts you in complete control of your ammunition's performance. With RCBS dies, you can fine-tune every aspect of your cartridge to optimize it for your specific firearm, desired velocity, and projectile type, something factory ammunition simply cannot offer.
6. RCBS Reputation and Support: RCBS has been a leading name in reloading equipment since 1943, earning a reputation for producing durable, reliable, and high-performance tools. Their products are known for their longevity and precision manufacturing, offering a lifetime warranty against manufacturing defects. This commitment to quality ensures that your investment in RCBS dies is a long-term asset in your reloading bench.
7. Specifically Tailored for .240 Weatherby Magnum: This die set isn't a generic solution; it's meticulously crafted for the unique specifications of the .240 Weatherby Magnum. This ensures optimal fit and function for this high-velocity, flat-shooting cartridge, critical for its performance.

Maintenance and Care for Your RCBS Dies

To ensure your RCBS Full-Length 2-Die Set continues to perform at its peak for years to come, proper maintenance is essential. Always clean your dies after use, especially if using corrosive primers or if they've been exposed to heavy lubrication. A soft cloth and a dedicated gun cleaning solvent are typically sufficient. Periodically, disassemble the expander-decapping unit for thorough cleaning and ensure the decapping pin is straight and secure. Store your dies in their original protective case to prevent rust and damage. A light coat of rust preventative can be applied if storing for extended periods in humid environments. This simple care routine will preserve the precision and functionality of your dies, ensuring they are always ready for your next reloading session.

Where to Acquire Your RCBS Reloading Tools

For handloaders seeking reliable performance and enduring quality, the RCBS 33201 Full-Length 2-Die Set Group D for .240 Weatherby Magnum is an indispensable addition to any reloading setup. These dies are a testament to RCBS's commitment to precision and durability, empowering you to produce ammunition that consistently meets the highest standards of accuracy and safety. When you are ready to elevate your reloading game, you can find this essential RCBS die set, along with a wide array of other quality reloading components and equipment, at DEGuns. As a trusted retailer, DEGuns provides access to the finest tools and supplies needed by dedicated reloaders to achieve their ballistic goals.

Whether you're new to reloading and asking, "What are the essential tools for reloading rifle cartridges?", or an experienced handloader seeking to upgrade or replace your current .240 Weatherby Magnum dies, the RCBS Full-Length 2-Die Set offers a definitive answer. It's a complete solution for anyone serious about crafting high-performance, accurate, and safe .240 Weatherby Magnum ammunition.

Attribute	Detail
Brand	RCBS
Series	Group D
Model	Full-Length 2-Die Set
Caliber	.240 Weatherby Magnum
Die Type	Sizer Die & Seater Die
Gun Type	Rifle
Dies in Set	2
MPN	33201
UPC	076683332011
