Revolutionize Your Reloading: The RCBS X-Die Full Length Sizer – End Trimming Forever

Are you a dedicated handloader constantly seeking to optimize your reloading process, improve ammunition consistency, and reclaim valuable time from tedious case preparation? For experienced reloaders and enthusiasts embarking on the journey of producing high-performance rifle ammunition, the unending cycle of case trimming can be one of the most frustrating and time-consuming aspects of the craft. Traditional full-length sizing dies often leave you with brass that continues to grow with each firing and subsequent sizing, demanding repetitive trimming to maintain consistent case length and ensure optimal chambering and projectile performance. This relentless chore not only eats into your reloading schedule but can also introduce subtle inconsistencies if not executed perfectly every time.

Imagine a world where, after an initial preparation, you never have to trim a bottleneck rifle case again. A solution that not only eliminates this recurring task but also enhances the overall consistency, accuracy potential, and longevity of your valuable brass. This seemingly impossible feat is precisely what the innovative RCBS X-Die Full Length Sizer Die delivers, offering a transformative approach to rifle case sizing that promises unprecedented efficiency and performance.

What Problem Does the RCBS X-Die Solve?

The core challenge for anyone reloading bottleneck rifle cartridges is managing case growth. As a case is fired, the internal pressure expands the brass, pushing it forward into the chamber. Upon extraction, the brass springs back, but it often retains a slightly elongated shape. When this case is then run through a standard full-length sizing die, the die works to reduce the diameter of the case body and neck back to spec, but this process can also push material forward, causing the case to lengthen further. This necessitates frequent trimming to bring the case back to a safe and optimal length for reliable chambering and consistent bullet seating.

• Problem 1: Time Consumption: Repetitive trimming is incredibly time-consuming, especially for high-volume reloaders or those preparing large batches of brass. Each case must be individually handled, trimmed, and often chamfered and deburred.
• Problem 2: Inconsistency: Manual trimming introduces potential for human error, leading to slight variations in case length which can impact neck tension, bullet seating depth, and ultimately, shot-to-shot consistency and accuracy.
• Problem 3: Reduced Case Life: While essential, repeated trimming and the associated stress on the brass can contribute to metal fatigue and shorten the overall lifespan of your rifle cases.
• Problem 4: Equipment Wear: Trimming tools, whether manual or powered, require maintenance and can wear out over time, adding to the cost and complexity of the reloading process.

The RCBS X-Die directly addresses these pain points by offering a patented solution that fundamentally alters how bottleneck rifle cases behave during the sizing process, ensuring that once an initial trim is performed, subsequent trimming becomes obsolete.

How Does the RCBS X-Die Work? A Deep Dive into its Patented Technology

At the heart of the RCBS X-Die's revolutionary capability is its uniquely engineered mandrel system, combined with an exceptionally tight tolerance within the die itself. Unlike conventional sizing dies that simply push the case back to specified dimensions, the X-Die actively controls and manages case growth.

1. The Patented Mandrel: The X-Die features a specially designed mandrel, which includes an expander ball and a decapping pin. What makes this mandrel unique is its role in interacting with the case mouth during the sizing process. As the case is pushed into the die, and the neck enters the sizing portion, the mandrel reaches a precise point where it prevents further elongation of the brass.
2. Controlled Case Growth: The genius of the X-Die lies in its ability to reduce the growth typically caused by the case mouth contacting the mandrel during sizing. Instead of simply lengthening, the X-Die's design ensures that the case material is directed back, maintaining the desired overall length.
3. Extremely Close Tolerance: Complementing the mandrel, the X-Die boasts an extremely close tolerance between the mandrel and the die neck wall. This critical engineering detail ensures that as the case length is pushed back, the neck wall of the case does not thicken. Maintaining consistent neck wall thickness is paramount for uniform neck tension, which directly translates to consistent bullet pull and, consequently, superior accuracy.
4. Initial Trim and Stabilization: To initiate this "no-trim" process, an initial trim of approximately 0.020 inch off the maximum case length is required for each new batch of brass. This slightly shorter starting point allows the X-Die to begin its length-stabilizing work effectively. Once cases are repeatedly sized in the X-Die after this initial trim, they will typically grow a few thousandths of an inch for the first couple of cycles and then stabilize below the maximum case length. This stabilization means your cases will consistently remain at a predictable and safe length, eliminating the need for any further trimming for the life of the brass.

This innovative mechanism is why reloaders can confidently state they "trim once, and never trim again" with the RCBS X-Die. The system is designed not to shorten the case beyond the initial trim but to prevent its progressive elongation, ensuring long-term consistency.

Unlocking Reloading Efficiency, Consistency, and Accuracy

The benefits of integrating the RCBS X-Die into your reloading setup extend far beyond simply eliminating trimming. It fundamentally enhances several critical aspects of ammunition production:

• Unprecedented Time Savings: For high-volume shooters or those preparing brass for multiple calibers, the time saved by eliminating repeated trimming is substantial. This translates to more time shooting, less time at the workbench, and a more enjoyable reloading experience.
• Enhanced Ammunition Consistency: Consistent case length is a cornerstone of precision reloading. The X-Die ensures that every case in your batch maintains a highly uniform length, leading to more consistent neck tension, bullet seating depth, and ultimately, more uniform internal ballistics.
• Superior Accuracy Potential: By promoting consistent case length and preventing neck thickening, the X-Die contributes directly to tighter groups downrange. When every component of your cartridge is optimized for consistency, the variables that can degrade accuracy are minimized. Many competitive shooters and long-range enthusiasts rely on such meticulous case preparation for peak performance.
• Extended Case Life: By reducing the need for repeated cutting and minimizing the stress on the brass associated with progressive growth, the X-Die helps prolong the useful life of your rifle cases. This is especially valuable for costly or hard-to-find brass.
• Cost Efficiency: While an initial investment, the X-Die pays for itself over time through reduced wear on trimming equipment, less frequent brass replacement, and the immeasurable value of your time.
• Streamlined Process: The X-Die simplifies the case preparation stage, allowing for a more linear and less interrupted workflow. This not only makes reloading more enjoyable but also reduces the chances of errors.

Who Can Benefit from the RCBS X-Die?

The RCBS X-Die Full Length Sizer is an invaluable tool for a wide range of shooting enthusiasts:

• Precision Rifle Shooters: For those pursuing the smallest possible groups, consistency in every aspect of the cartridge is vital. The X-Die helps remove a significant variable.
• High-Volume Reloaders: If you process hundreds or thousands of cases, the time savings alone make the X-Die an indispensable investment.
• Competitive Shooters: Consistency under pressure is key. Knowing your brass is uniformly prepared provides a mental edge and tangible performance benefits.
• Hunters: Ensuring reliable, accurate ammunition for that crucial shot.
• Any Reloader Tired of Trimming: Quite simply, if the chore of trimming is weighing you down, the X-Die offers a liberating solution.

Getting Started with Your RCBS X-Die

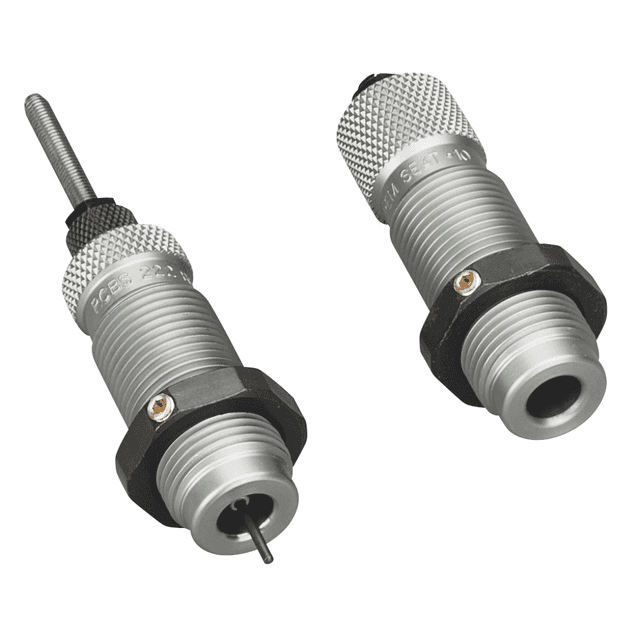

For those just beginning to reload a specific caliber, it is highly recommended to order the RCBS X-Die Full Length Set. This comprehensive set contains both the X-Die Sizer and a Standard Seater Die, providing all the necessary components for complete case preparation and bullet seating. This approach ensures you have the correct, matched tools to immediately begin benefiting from the X-Die's unique capabilities.

To ensure optimal performance and longevity of your RCBS X-Die, always:

• Clean and Inspect Brass: Start with clean, decapped cases. Inspect them for any damage or abnormalities.
• Lubricate Properly: Full-length sizing requires proper case lubrication to prevent stuck cases and facilitate smooth operation. Use a high-quality reloading lubricant.
• Initial Trim: Remember the critical initial trim of 0.020 inch below maximum case length for each new batch of brass. This is a one-time step per batch.
• Follow Instructions: Always refer to the detailed instructions provided with your RCBS X-Die for caliber-specific guidance and best practices.

The RCBS X-Die represents a significant leap forward in reloading technology, allowing handloaders to achieve unparalleled consistency and efficiency. By addressing the age-old problem of case growth with an innovative and patented solution, RCBS has once again demonstrated its commitment to providing high-quality, practical tools that empower shooters to produce the best possible ammunition.

When considering an upgrade to your reloading bench, or if you're looking for ways to significantly reduce the most tedious part of rifle case preparation, the RCBS X-Die is not just a tool; it's an investment in your time, your accuracy, and the overall enjoyment of your shooting sports. Experience the difference that truly consistent, trim-free brass can make.

You can find the RCBS X-Die Full Length Sizer, along with a wide range of other high-quality reloading equipment and accessories, available at DEGuns and deguns.com. Elevate your reloading game and make repetitive trimming a thing of the past.

RCBS X-Die Full Length Sizer Specifications & Key Details

Feature	Description	Benefit
UPC	076683388094	Unique Product Identifier
SKU	38809	Stock Keeping Unit for Inventory
Die Type	Full Length Sizer Die (X-Die)	Resizes fired bottleneck cases to factory specifications while preventing future growth.
Patented Design	Features a specially designed mandrel with an expander ball and decapping pin attached, engineered to manage case length.	Eliminates the need for repeated case trimming after an initial trim, saving significant time and effort.
Growth Control	The mandrel reduces case growth caused by the case mouth contacting it during sizing, ensuring cases do not progressively lengthen.	Maintains consistent case length, crucial for accuracy and reliable feeding, without constant manual intervention.
Neck Wall Integrity	Extremely close tolerance between the mandrel and die neck wall prevents the neck wall of the case from thickening as case length is pushed back.	Preserves consistent neck tension, leading to more uniform bullet seating and improved shot-to-shot consistency and accuracy.
Case Stabilization	Cases repeatedly sized in the X-Die will initially grow a few thousandths of an inch then stabilize below the maximum case length.	Ensures long-term consistency in case dimensions, extending brass life and eliminating the need for further trimming.
Initial Trim Required	Requires an initial trim of approximately 0.020 inch off the maximum case length to standardize the case for the X-Die system.	Sets up the case for the X-Die's unique growth control mechanism, making subsequent trimming unnecessary for the life of the brass.
Accuracy & Case Life	No discernible loss of accuracy or case life when cases are sized using the X-Die, maintaining performance while offering efficiency benefits.	Provides peace of mind that efficiency gains do not come at the expense of ballistic performance or the longevity of your reloading components.
Recommended For	Those starting to reload a given caliber should consider the X-Die Full Length Set, which includes the X-Die Sizer and a Standard Seater Die.	Offers a complete solution for new calibers, ensuring proper components for both sizing and seating from the outset.
Availability	Available for various bottleneck rifle calibers, ensuring broad applicability across popular shooting disciplines.	Caters to a wide range of reloading needs, from precision benchrest to high-volume hunting and tactical ammunition.
