Unlock Unprecedented Precision: The Redding Type S - Bushing Style Neck Sizing Die for Elite Handloaders

For serious handloaders, precision rifle shooters, and competitive marksmen, the pursuit of optimal ammunition concentricity and consistent neck tension is paramount. It's the difference between a good group and a match-winning performance, between a reliable shot and a frustrating flyer. If you've ever asked, "What's the best way to achieve ultimate accuracy from my handloads?" or "How can I extend the life of my valuable rifle brass while ensuring consistent bullet seating?" then the Redding Type S - Bushing Style Neck Sizing Die is designed precisely for you. This sophisticated tool tackles the critical challenge of case neck preparation, providing an unmatched level of control that translates directly into tighter groups and enhanced projectile stability downrange.

Why Consistent Neck Tension and Concentricity Matter: A Deep Dive for Handloaders

The neck of your cartridge case is where the bullet is held. Its dimensions and the force with which it grips the bullet – known as neck tension – profoundly impact ballistic performance. Inconsistent neck tension can lead to varied bullet release forces, causing different muzzle velocities and trajectories, ultimately opening up your groups. Similarly, if the case neck isn't perfectly round or if the bullet isn't seated perfectly straight (a concept known as concentricity), the bullet can yaw slightly as it leaves the muzzle, again diminishing accuracy.

Many reloaders grapple with these issues, often using full-length sizing dies that, while effective for general resizing, may overwork the brass or not offer the fine-tuned control needed for extreme precision. This is where the Redding Type S - Bushing Style Neck Sizing Die shines. It addresses these critical factors directly, offering a dedicated solution for neck sizing that allows for unparalleled customization and consistency, pushing the boundaries of what your rifle and ammunition are capable of.

Unrivaled Control: Key Features Explained for the Discerning Reloader

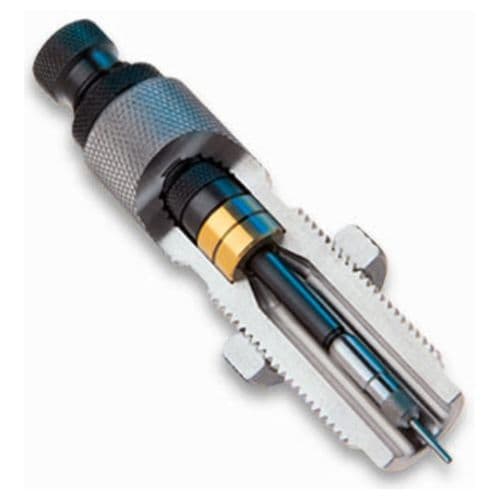

The Redding Type S - Bushing Style Neck Sizing Die is engineered with features that cater directly to the needs of precision handloaders. Each element is designed to contribute to the overall goal of producing ammunition with superior concentricity and perfectly calibrated neck tension.

Interchangeable Sizing Bushings: Tailoring Neck Tension to Perfection

At the heart of this die's precision is its use of interchangeable sizing bushings. These bushings are available in minute .001" increments, sold separately, allowing you to select the exact inside diameter required for your specific case neck and desired neck tension.

• Customization: Imagine being able to fine-tune the bullet pull for different bullet weights, jacket thicknesses, or even different powder charges. This level of customization allows you to discover the "sweet spot" for your particular rifle and load combination, leading to optimal ignition and consistent bullet departure.
• Adaptability: Whether you're reloading for a .223 Remington with varied brass manufacturers or a .308 Winchester with a specific bullet, the ability to swap bushings means one die body can serve multiple purposes within a caliber family, simply by changing the bushing.
• Consistency: By precisely controlling the neck diameter, you ensure that every case neck is sized to the exact same dimension, leading to highly consistent neck tension shot after shot. This uniformity is a cornerstone of precision handloading.

This feature is invaluable for those who are meticulous about their reloading process and understand that even a thousandth of an inch can impact performance at extended ranges. It directly answers the question, "How can I get the most consistent bullet pull for my competitive shooting loads?"

Adjustable Decapping Rod: The Art of Partial Neck Sizing

Another ingenious feature is the adjustable decapping rod. This allows the reloader to position the sizing bushing so that only a portion of the case neck length is resized, if desired.

• Reduced Brass Work Hardening: When you resize the entire neck, you work-harden the brass along its full length. Partial neck sizing reduces the amount of brass that is compressed and expanded, significantly minimizing work hardening.
• Extended Case Life: Less work hardening means the brass retains its elasticity longer, reducing the likelihood of cracking and extending the overall lifespan of your expensive cases. This is a critical benefit for those investing in premium brass.
• Optimized Bullet Seating: By sizing only the portion of the neck that holds the bullet, you can sometimes achieve a smoother bullet seating experience and maintain integrity in the neck-shoulder junction area, which can be beneficial for certain chamber designs.

For handloaders who ask, "How do I extend the life of my rifle brass?" or "What techniques can I use to prevent brass fatigue?", the adjustable decapping rod offers a highly effective and proven solution.

Self-Centering Resizing Bushing: The Foundation of Superior Concentricity

The design of the Redding Type S - Bushing Die ensures that the resizing bushing can self-center on the case neck.

• Enhanced Concentricity: This self-centering capability is fundamental to achieving superior ammunition concentricity. As the case enters the die, the bushing aligns itself perfectly with the case neck, ensuring that the neck is resized uniformly around its entire circumference. This prevents the "egg-shaped" or off-center neck issues that can plague lesser dies.
• Improved Bullet Alignment: When the case neck is truly concentric, the bullet seats straighter and more consistently, reducing any runout. This directly translates to a more stable projectile in flight and tighter groups on target.

If your goal is to minimize bullet runout and maximize the inherent accuracy of your rifle, the self-centering bushing design of the Redding Type S die provides a significant advantage. It answers the critical question, "How do I ensure my bullets are perfectly aligned for maximum accuracy?"

Standard Size Button: Convenience for Commercial Brass Users

The decapping rod is supplied with a standard size button. This feature is particularly useful for reloaders who primarily use commercial brass as is, without undertaking extensive case preparation like neck turning.

• Consistent Internal Diameter: The size button ensures that the inside diameter of the case neck is expanded to a consistent dimension after sizing, providing a uniform foundation for bullet seating.
• Ease of Use: For those who prioritize efficiency and reliability with standard brass, the size button simplifies the process, ensuring reliable bullet retention without additional steps.

This addresses the needs of a wide range of reloaders, ensuring that even those without specialized brass preparation equipment can achieve excellent results. It's ideal for those asking, "What's a reliable die for processing commercial rifle brass for improved accuracy?"

Decapping Pin Retainer (without Size Button): For Neck-Turned or Sorted Brass

A decapping pin retainer is also supplied with most Type S - Bushing Dies (excluding 17 and 20 Caliber models due to their small dimensions). This crucial component enables neck sizing without the use of the size button.

• Optimal for Sorted/Turned Necks: This is an indispensable feature for advanced reloaders who meticulously sort their brass by neck thickness or who perform neck turning to achieve absolute uniformity. When neck thickness is already precise, a size button can actually introduce inconsistencies by expanding the neck unnecessarily.
• True Bushing Performance: By removing the size button, the bushing itself becomes the sole arbiter of the neck's final outside diameter, allowing for the most precise control over neck tension, especially critical when aiming for minimal neck expansion upon bullet seating.
• Enhanced Concentricity for Custom Brass: For those who go the extra mile to prepare their brass, eliminating the size button further enhances concentricity, as there's no additional component influencing the internal diameter after the precision sizing by the bushing.

This feature directly caters to the highly dedicated reloader who asks, "How can I extract the absolute maximum precision from my neck-turned or match-grade brass?" and seeks to minimize any variable in their ammunition production chain.

The Redding Standard: A Legacy of Precision Engineering

Redding Reloading Equipment has long been recognized as a benchmark in the reloading industry, trusted by discerning handloaders worldwide for its commitment to precision, durability, and innovative design. The Type S - Bushing Style Neck Sizing Die is a testament to this legacy, embodying decades of engineering expertise focused on helping shooters achieve their full potential. When you choose Redding, you're investing in tools that are built to last, engineered for accuracy, and designed to perform consistently over countless reloading cycles. This die is not just a tool; it's an investment in your shooting performance and the longevity of your reloading equipment.

Common Questions Answered by the Redding Type S - Bushing Style Neck Sizing Die

• "How do I achieve sub-MOA accuracy with my handloads?" By providing precise control over neck tension and concentricity, this die helps eliminate key variables that can degrade accuracy, allowing your rifle to perform to its utmost.
• "What's the best die for consistent neck tension in my competitive rifle ammunition?" The interchangeable bushings and the ability to fine-tune neck dimensions make this die a top choice for achieving perfectly consistent neck tension.
• "How can I extend the life of my valuable rifle brass?" The option for partial neck sizing significantly reduces work hardening, dramatically prolonging brass life and reducing your cost per shot.
• "Is there a reloading die that works best with neck-turned brass?" Absolutely. The decapping pin retainer allowing sizing without a button is specifically designed for optimal results with neck-turned or precisely sorted brass.
• "What equipment do I need to start making match-grade ammunition?" While many components contribute, a high-quality neck sizing die like the Redding Type S is a foundational tool for building truly precise ammunition.

The Redding Type S - Bushing Style Neck Sizing Die is more than just a piece of reloading equipment; it's a critical component for anyone serious about elevating their shooting performance. Available at deguns.com, it represents a commitment to precision, consistency, and the relentless pursuit of perfection in every shot fired.

Redding Type S - Bushing Style Neck Sizing Die: Specifications at a Glance

Feature	Description
Interchangeable Sizing Bushings	Allows precise control over neck tension by selecting from minute .001" increment bushings (sold separately), enabling customization for different bullet weights, jacket thicknesses, and powder charges for optimal ignition and consistent bullet departure. Enables one die body to serve multiple purposes within a caliber family. Ensures every case neck is sized to the exact same dimension for high consistency.
Adjustable Decapping Rod	Permits partial neck sizing to reduce brass work hardening, significantly extending case life by minimizing the amount of compressed and expanded brass. This also helps maintain elasticity and reduces cracking, critical for valuable cases. Can optimize bullet seating and maintain neck-shoulder junction integrity for certain chamber designs.
Self-Centering Resizing Bushing	Ensures superior ammunition concentricity by aligning perfectly with the case neck as it enters the die, uniformly resizing the neck around its entire circumference. This design prevents "egg-shaped" or off-center neck issues and leads to straighter, more consistent bullet seating, reducing runout for improved projectile stability and tighter groups.
Standard Size Button	Included on the decapping rod to expand the inside diameter of the case neck to a consistent dimension after sizing. Primarily useful for reloaders using commercial brass without extensive case preparation like neck turning, ensuring a uniform foundation for reliable bullet seating and retention.
Decapping Pin Retainer (without Size Button)	Supplied with most Type S - Bushing Dies (excluding 17 and 20 Caliber models) for advanced reloaders using neck-turned or meticulously sorted brass. Allows neck sizing without the size button, making the bushing the sole arbiter of the neck's final outside diameter. This minimizes neck expansion upon bullet seating, enhances concentricity, and extracts maximum precision from custom-prepared brass.
Material & Construction	Manufactured from high-quality steel, typically heat-treated and precision-ground to Redding's exacting standards. Ensures exceptional durability, long-term performance, and resistance to wear even under heavy use. The robust construction provides reliable and consistent sizing over countless reloading cycles, maintaining accuracy over the product's lifespan.
Thread Size	Standard 7/8"-14 thread, compatible with all major single-stage and turret reloading presses on the market. This universal compatibility ensures easy integration into existing reloading setups without the need for specialized adapters or equipment.
Compatibility	Designed for specific rifle calibers; requires selection of the appropriate die for the desired cartridge. Bushings are caliber-specific but interchangeable within the Type S die body for that caliber family, offering versatility for reloaders working with different brass types or bullet diameters within the same cartridge.
Finish	Often features a polished and/or black oxide finish for corrosion resistance and smooth operation. The finish contributes to the die's longevity and ease of maintenance, ensuring it remains in optimal condition for extended periods.
Package Contents	Typically includes the Type S Neck Sizing Die body, an adjustable decapping rod assembly (with standard size button), and a decapping pin retainer (without size button, for most calibers). Bushings are generally sold separately, allowing users to customize their setup to specific needs.
Application	Primarily used for neck sizing fired rifle brass, which resizes only the case neck to optimize neck tension and improve concentricity, without significantly altering the case body. This method is favored by precision shooters to minimize brass working, extend case life, and enhance accuracy in bolt-action rifles where cases are fire-formed to a specific chamber.
Benefits for Precision Reloading	Key benefits include improved ammunition concentricity, highly consistent neck tension, extended brass life, reduced bullet runout, and the ability to fine-tune loads for optimal accuracy. These benefits collectively contribute to tighter groups and enhanced ballistic performance, making it an indispensable tool for competitive shooters and elite handloaders.
Redding Quality Assurance	Undergoes rigorous quality control checks throughout the manufacturing process to ensure dimensional accuracy and consistent performance. Redding's reputation for precision engineering ensures that each die meets the highest standards for reliability and durability, backed by a legacy of trust in the reloading community.
Maintenance & Care	Requires regular cleaning and light lubrication (as per Redding's recommendations) to ensure smooth operation and prevent rust. Proper care helps maintain the die's precision and extends its service life, preserving the investment for many years of reloading.
Usage Recommendations	Best used on cases that have been fire-formed to a specific chamber. For new brass or cases fired in different chambers, a full-length sizing die might be required initially. It's recommended to measure case neck thickness and bullet diameter to select the appropriate bushing for desired neck tension.
