Unlocking Precision: The Essential Guide to AR-15 Barrel Nut Shims and the TacFire MAR063 10-Pack

Are you an AR-15 enthusiast, a dedicated rifle builder, or a seasoned gunsmith looking to elevate the performance and reliability of your firearms? Perhaps you’re tackling your first AR-15 assembly and want to ensure every component is perfectly aligned and torqued for optimal function. One often-overlooked yet critically important component in achieving this precision is the barrel nut shim. Specifically, for anyone working with free-float handguards, a set of high-quality shims, such as the TacFire MAR063 AR15 Black Barrel Nut Shim 10 Pack, is an indispensable tool. These small but mighty washers are the unsung heroes of a perfectly timed barrel nut and a flawlessly aligned free-float handguard system, ensuring everything from gas tube alignment to overall rifle aesthetics is on point.

Why Are Barrel Nut Shims Essential for Your AR-15 Build?

Many AR-15 builders ask, "Do I really need barrel nut shims?" The simple answer is yes, if you prioritize precision, reliability, and the longevity of your rifle. The barrel nut on an AR-15 serves two primary functions: securing the barrel to the upper receiver and providing the attachment point for the handguard. When installing a free-float handguard, proper "timing" of the barrel nut is crucial. Timing refers to aligning specific cutouts or features on the barrel nut with the gas tube hole in the upper receiver, allowing the gas tube to pass through unhindered and without binding.

Without shims, achieving the correct torque specification and the precise alignment simultaneously can be a significant challenge. You might find yourself either under-torquing the barrel nut, leading to potential movement and accuracy issues, or over-torquing it, which can deform the receiver threads or make future disassembly difficult. This is precisely where barrel nut shims come into play. They act as precise spacers, allowing you to achieve the ideal torque value – typically between 30 and 80 foot-pounds – while also ensuring the barrel nut's alignment marks or gas tube channels line up perfectly.

The TacFire MAR063 AR15 Black Barrel Nut Shim 10 Pack provides a comprehensive solution for this common building dilemma. Each pack contains ten individual shims, offering a range of thicknesses that allow for minute adjustments. This variety ensures that whether you're working with a new barrel or an existing setup, you'll have the right shim to achieve that critical perfect alignment without compromising the essential torque.

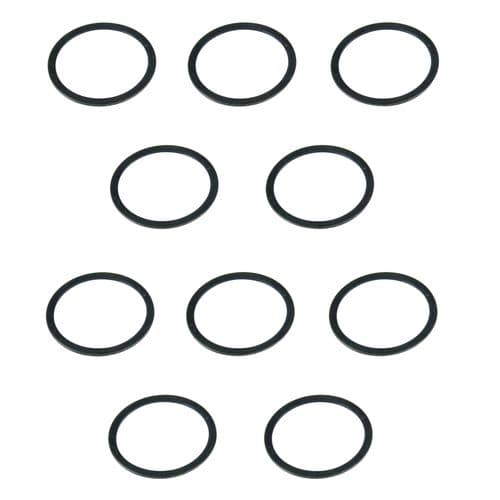

Product Deep Dive: TacFire MAR063 AR15 Black Barrel Nut Shim 10 Pack

Let's take a closer look at what makes the TacFire MAR063 shims a standout choice for any AR-15 builder or armorer.

• Designed for AR-15 Platforms: These shims are specifically engineered for the AR-15 platform, ensuring compatibility with standard Mil-Spec barrel nuts and free-float handguards. This dedicated design simplifies the building process, removing guesswork and ensuring a reliable fit.
• Optimal Dimensions: Each shim in the pack has a diameter of 1.25 inches, making them perfectly sized to fit around the barrel extension and sit flush against the receiver face. Their uniform size ensures consistent application of pressure and even torque distribution.
• Robust Construction: While TacFire does not explicitly state the material for these shims, barrel nut shims are typically made from hardened steel or other durable alloys to withstand the significant forces involved in barrel nut torquing. Their black finish often indicates a protective coating to resist corrosion and wear, enhancing their longevity.
• Generous Quantity: The 10-pack quantity is a significant advantage. Building AR-15s often requires iterative adjustments. Having multiple shims of varying thicknesses (though not explicitly stated as varying in thickness, a pack like this usually offers some range through multiple applications or just offers backup) means you have ample options to fine-tune your barrel nut's position without running out or needing to purchase additional sets in the middle of a build. This ensures you can achieve the precise alignment needed for optimal gas tube passage and handguard orientation, every time.
• Lightweight Design: At just 30 ounces for the entire pack, these shims add negligible weight to your build, maintaining the lightweight nature desired in modern AR-15 configurations. This small weight, despite the precision it enables, ensures your rifle remains agile and balanced.

These shims are not just a convenient accessory; they are a fundamental component for any serious AR-15 assembly, particularly when installing modern free-float handguards. They address the critical requirement of balancing proper torque with precise alignment, which directly impacts the accuracy and cycling reliability of your rifle. The TacFire brand is known for producing quality AR-15 accessories, and this shim pack reinforces their commitment to providing builders with reliable, effective components.

How to Properly Install Free-Float Handguards with Barrel Nut Shims

Understanding the theory behind barrel nut shims is one thing, but knowing how to properly integrate them into your AR-15 build is another. Here’s a step-by-step guide to help you achieve perfect barrel nut timing and handguard alignment using your TacFire shims:

1. Gather Your Tools: Before you begin, ensure you have all necessary tools. This includes:
   • An AR-15 upper receiver vise block
   • A torque wrench (capable of 30-80 ft-lbs)
   • An AR-15 armorer's wrench
   • Your barrel nut (likely included with your free-float handguard)
   • Your new TacFire MAR063 AR15 Black Barrel Nut Shim 10 Pack
   • Barrel nut grease (often an anti-seize compound like AeroShell 33MS or equivalent)
   • Your barrel and gas tube
   • Your free-float handguard
2. Prepare the Upper Receiver and Barrel:
   • Secure your upper receiver in a vise using a proper upper receiver vise block. This prevents any damage to the receiver during the torquing process.
   • Apply a thin, even layer of barrel nut grease to the threads of the upper receiver and the mating surface where the barrel extension meets the receiver. This lubrication is crucial for achieving accurate torque readings and preventing galling of the threads.
   • Insert your barrel into the upper receiver, ensuring the index pin on the barrel extension aligns perfectly with the slot in the upper receiver.
3. Initial Barrel Nut Installation (No Shims Yet):
   • Thread the barrel nut onto the upper receiver by hand until it is finger-tight.
   • Using your armorer's wrench and torque wrench, tighten the barrel nut to a torque of approximately 30 ft-lbs. This initial torque helps "bed" the barrel into the receiver and allows the threads to settle.
   • Loosen the barrel nut completely. Repeat this process two to three times. This "conditioning" of the threads helps to ensure a more accurate final torque reading and prevents the barrel nut from binding prematurely.
4. Checking for Gas Tube Alignment:
   • After conditioning the threads, thread the barrel nut on again by hand until it's snug.
   • Carefully observe the orientation of the gas tube hole(s) or indexing points on your barrel nut relative to the gas tube hole in your upper receiver.
   • Without a shim, try to apply minimal torque (just enough to snug it down, perhaps 20-25 ft-lbs) and see if the gas tube channel on the barrel nut aligns. It's highly unlikely it will align perfectly at the desired torque range without adjustment.
5. Selecting and Applying Shims:
   • If the barrel nut doesn't align at the desired torque range (30-80 ft-lbs), you will need to add shims.
   • Remove the barrel nut.
   • Place a single TacFire barrel nut shim over the barrel extension and against the face of the upper receiver.
   • Re-thread the barrel nut onto the receiver.
   • Now, apply torque within the specified range (e.g., 30-80 ft-lbs, consult your handguard manufacturer's instructions for precise values).
   • As you torque, continually check the alignment of the barrel nut's gas tube channel with the gas tube hole in the receiver. The goal is to get it to align within the specified torque range.
   • If it still doesn't align, remove the barrel nut, add another shim (or swap for a different thickness if your pack contains varying sizes, or stack them carefully as needed), and re-torque. This trial-and-error process is normal and highlights the value of having a 10-pack of TacFire shims. You can incrementally adjust the spacing until you achieve perfect alignment at the proper torque.
6. Final Torque and Verification:
   • Once the barrel nut is perfectly aligned within the 30-80 ft-lbs torque range, give it one final check. Ensure the gas tube can pass freely through the barrel nut and into the upper receiver without any binding.
   • If your handguard has anti-rotation tabs or other features that mate with the upper receiver, ensure they also align correctly.

By following these steps with your TacFire MAR063 AR15 Black Barrel Nut Shim 10 Pack, you'll achieve a professional-level assembly that contributes significantly to the accuracy and reliable function of your AR-15. This process, while requiring patience, prevents issues like gas tube impingement, which can lead to cycling malfunctions, and ensures your free-float handguard sits perfectly straight, enhancing both aesthetics and component longevity.

Benefits of Precision Barrel Nut Shimming with TacFire

Investing in and properly utilizing barrel nut shims provides a multitude of benefits for your AR-15, moving beyond simple assembly to enhanced performance and peace of mind.

• Optimized Gas System Reliability: The most critical benefit is ensuring proper gas tube alignment. A misaligned gas tube can lead to binding, excessive wear, and unreliable cycling (short-stroking or failures to extract). Shims guarantee a straight, unobstructed path for the gas tube, vital for consistent operation.
• Enhanced Accuracy: While often subtle, precise barrel nut torque contributes to consistent barrel harmonics. A properly torqued and aligned barrel can lead to better shot consistency and, consequently, improved accuracy. The shims enable you to hit that "sweet spot" torque without sacrificing alignment.
• Prevention of Component Damage: Over-torquing the barrel nut can strip threads on the upper receiver or damage the barrel extension. Under-torquing can lead to the barrel nut loosening over time. Shims allow you to achieve the correct torque value without needing to over-tighten just to get alignment.
• Improved Aesthetics and Handguard Alignment: A free-float handguard that isn't perfectly aligned with the upper receiver is not only visually displeasing but can also affect the mounting of accessories like optics, lasers, and lights. Shims ensure your handguard sits straight and true, creating a seamless look and optimal platform for attachments.
• Professional Build Quality: Using shims is a hallmark of a meticulous and professional AR-15 build. It demonstrates attention to detail and a commitment to achieving the highest standards of firearm construction, whether for personal use, competition, or duty.
• Cost-Effectiveness: Compared to the potential costs of replacing a stripped upper receiver, diagnosing and fixing cycling issues caused by misalignment, or dealing with an inaccurate rifle, a simple pack of shims like the TacFire MAR063 AR15 Black Barrel Nut Shim 10 Pack is an incredibly small investment that prevents larger, more expensive problems down the line.

Who Needs the TacFire MAR063 Shims?

This product is ideal for a wide range of individuals within the firearms community:

• AR-15 Custom Builders: If you're assembling custom AR-15s from individual components, these shims are non-negotiable for achieving a professional, reliable build.
• Enthusiasts and Hobbyists: For those who enjoy working on their own firearms, upgrading components, or simply performing maintenance, having a pack of these shims in your toolkit is invaluable.
• Gunsmiths and Armorers: Professionals will appreciate the consistent quality and utility of the TacFire shims for client builds and repairs, ensuring every job meets high standards.
• Anyone Installing a Free-Float Handguard: If your project involves installing a new free-float handguard that utilizes a barrel nut for attachment, these shims are a must-have for proper installation.
• Troubleshooters: If you're experiencing cycling issues with an existing AR-15 and suspect gas tube alignment, these shims can be part of your diagnostic and corrective toolkit.

In conclusion, the TacFire MAR063 AR15 Black Barrel Nut Shim 10 Pack represents a foundational component for any AR-15 builder or enthusiast aiming for peak performance and reliability. These simple yet ingenious washers are the key to perfecting your barrel nut torque and gas tube alignment, directly impacting your rifle's accuracy, cycling, and overall integrity. Don't compromise on precision; equip your workbench with these essential shims from TacFire.

These indispensable components, along with a wide array of other quality firearm parts and accessories, are readily available for purchase at DEGuns.

Feature	Detail	Purpose
Brand	TacFire	Trusted manufacturer of firearm accessories
Model	AR15	Designed specifically for the AR-15 platform
Component	Barrel Nut Shim	Essential for precise barrel nut timing
Length	1.25" (Diameter)	Standard size for AR-15 barrel nuts
Quantity	10 Pack	Ample supply for multiple adjustments/builds
Weight	30 oz (Total)	Lightweight, adds negligible mass
SKU	113620	Internal product identifier
UPC	811261022188	Universal Product Code for easy identification
MPN	MAR063	Manufacturer Part Number for reference
