The Indispensable Guide to Precision Muzzle Device Installation: Unlocking Performance with the Dead Air DA001 Shim Kit

For every firearm enthusiast, gunsmith, or serious shooter, the pursuit of optimal performance, safety, and longevity for their rifle or pistol is paramount. When it comes to attaching a muzzle device – be it a flash hider, compensator, muzzle brake, or critically, a sound suppressor – precision is not just desired; it’s absolutely essential. This deep dive explores the vital role of meticulous alignment and how the Dead Air DA001 Shim Kit for 1/2"-28 threaded barrels stands as an indispensable tool for achieving perfection, ensuring your investment is protected and performs flawlessly.

Why Muzzle Device Alignment Matters: Protecting Your Investment and Ensuring Safety

Imagine investing in a high-quality suppressor, a device designed to drastically reduce the sound signature of your firearm. Now imagine the nightmare scenario: a "baffle strike." This occurs when the projectile, upon exiting the barrel, makes contact with the internal baffles of the suppressor, causing significant damage to the suppressor, potentially the firearm, and posing a serious safety risk to the shooter. Baffle strikes are almost always preventable and stem directly from improper alignment of the muzzle device or suppressor relative to the bore of the barrel.

The solution? Achieving perfect concentricity and precise timing. Concentricity ensures that the path of the bullet is perfectly centered through the bore of the muzzle device and suppressor. Timing, particularly for muzzle brakes and compensators, ensures that the device is correctly oriented (indexed) on the barrel, directing gases optimally to reduce recoil or muzzle rise as intended by its design. Without a precise method to achieve this, you’re leaving performance and safety to chance. This is where dedicated shim kits, like the Dead Air DA001, become not just useful, but absolutely critical.

Understanding the 1/2"-28 TPI Thread Pattern: A Common Standard

The 1/2"-28 tpi (threads per inch) pattern is one of the most prevalent thread specifications in the firearm industry. It's commonly found on AR-15 platforms chambered in 5.56x45mm NATO/.223 Remington, many pistol caliber carbines, and a wide array of rimfire rifles and pistols. Its widespread adoption means that a vast number of firearms and muzzle devices utilize this specific threading.

Given its popularity, ensuring proper installation for any accessory designed for 1/2"-28 threads is a frequent task for firearm owners. While some barrels feature perfectly cut, concentric threads with an ideal shoulder for direct attachment, variations in manufacturing tolerances mean that a perfectly flush and aligned fit is not always guaranteed without adjustment. Traditional crush washers, while inexpensive, offer a non-precise, one-time use solution that can introduce slight misalignment, making them unsuitable for suppressor use and less than ideal for critical muzzle brake timing. The definitive answer for achieving repeatable, precise alignment on your 1/2"-28 barrel is a high-quality shim kit.

Introducing the Dead Air DA001 Shim Kit: Precision Engineered for 1/2"-28 Applications

The Dead Air DA001 Shim Kit is an expertly curated collection of shims designed specifically to facilitate the accurate and secure installation of muzzle devices on barrels featuring the 1/2"-28 tpi thread pattern. This kit eliminates the guesswork and potential for error associated with less precise methods, providing a reliable foundation for your muzzle accessory.

Key Components and Their Purpose:

• Three Different Shim Thicknesses: The DA001 kit includes three distinct shim thicknesses: 0.004 inches, 0.006 inches, and 0.060 inches. This carefully selected range of thicknesses allows users to achieve an incredibly fine degree of adjustment, ensuring the perfect timing and concentricity for nearly any muzzle device.
  • The 0.060" shim provides a substantial base, often used as the primary thick shim to get close to the desired timing.
  • The 0.006" shim offers a medium increment for further refinement.
  • The 0.004" shim provides the finest adjustment, allowing for minute tweaks to achieve perfect alignment.

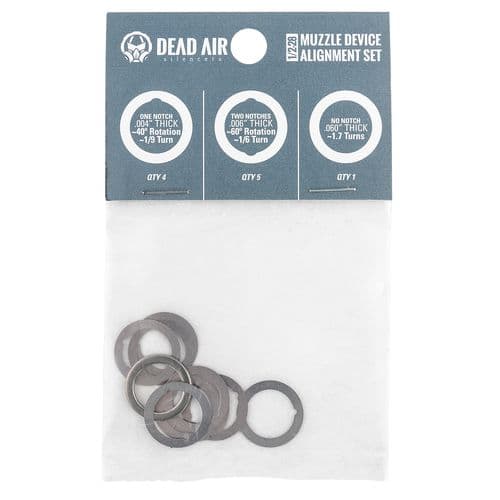

• Intuitive Identification: The packaging itself includes a clear graphic detailing the specific thicknesses and identifying features of each shim. This eliminates confusion and streamlines the selection process, even for first-time users.
• Critical Installation Guidance: The kit includes a vital instruction: "Always place the thickest shim(s) on the barrel first." This instruction is crucial for proper installation, ensuring that the primary support for the muzzle device comes from the most stable foundation, preventing tilting or uneven pressure. This best practice contributes significantly to achieving a truly concentric and secure mount.

Who Benefits Most from the Dead Air DA001 Shim Kit?

This kit is an essential accessory for a diverse range of firearm owners and professionals:

• Suppressor Owners: Absolutely paramount for anyone mounting a sound suppressor. Proper shimming is the most effective way to prevent catastrophic baffle strikes, protecting your expensive suppressor and ensuring its long-term functionality.
• Muzzle Brake/Compensator Users: For those looking to optimize the performance of their muzzle brake or compensator, shims allow for precise timing. This ensures that the gas ports are oriented exactly as designed by the manufacturer, maximizing recoil reduction and muzzle control.
• DIY Gunsmiths and Enthusiasts: If you perform your own firearm maintenance and upgrades, this kit empowers you to execute professional-grade muzzle device installations with confidence.
• Firearm Retailers and Gunsmith Shops: A necessary tool for providing excellent service, ensuring every muzzle device installation is performed to the highest standard, minimizing returns or complaints due to alignment issues.
• Anyone Concerned with Firearm Longevity: By ensuring proper alignment, shims reduce stress on barrel threads and muzzle devices, contributing to the overall durability and lifespan of your firearm components.

Real-World Applications and Solving Common Challenges

The Dead Air DA001 Shim Kit directly addresses several common questions and problems encountered during muzzle device installation:

• "How do I properly install a suppressor on my AR-15 to avoid damaging it?"

  The DA001 shim kit provides the precision necessary to ensure perfect concentricity between your barrel's bore and the suppressor's internal bore. By carefully selecting and stacking shims, you can eliminate any tilt or misalignment, making baffle strikes a non-issue.

• "What's the best way to time a muzzle brake or compensator for maximum effectiveness?"

  Timing a muzzle device means ensuring its ports are precisely aligned (e.g., ports facing 3 and 9 o'clock for a horizontal brake). The various thicknesses of shims in the DA001 kit allow for micro-adjustments, letting you achieve perfect indexing, unlike crush washers that provide inconsistent results.

• "My muzzle device isn't sitting flush against the barrel shoulder. How can I fix this?"

  Sometimes, minor manufacturing variances can leave a small gap between the muzzle device and the barrel shoulder, or prevent it from indexing properly. The Dead Air shim kit provides the right combination of thicknesses to fill these gaps precisely, ensuring a tight, secure, and correctly timed fit.

• "Are there alternatives to crush washers that are better for suppressor use?"

  Absolutely. Shims are the preferred method for suppressor attachment. Unlike crush washers which deform and can introduce slight yaw or non-concentricity, shims provide a flat, stable, and precise spacer, crucial for maintaining alignment.

• "How can I ensure my muzzle device won't come loose during firing?"

  Proper shimming, combined with appropriate torque, creates a secure and stable interface between the barrel and muzzle device. This minimizes the chances of the device loosening under recoil, ensuring consistent performance and safety.

Step-by-Step Guide: Using the Dead Air DA001 Shim Kit for Optimal Installation

Using the Dead Air DA001 Shim Kit is a straightforward process that yields professional results. Here’s a general guide:

1. Preparation is Key: Ensure both your barrel threads and the internal threads of your muzzle device are meticulously clean and free of any debris, carbon, or old thread locker. A clean surface is crucial for a secure and repeatable fit.
2. Initial Hand-Tight Fit: Hand-thread your muzzle device onto the barrel. Note its final resting position when hand-tight. For timing-sensitive devices (brakes, compensators), observe how far past or short of the desired indexed position it stops. For suppressors, simply observe how tightly it seats.
3. Applying the "Thickest First" Rule: As per Dead Air's explicit instruction, always place your thickest shim(s) directly onto the barrel shoulder first. This provides the most stable foundation for your shim stack.
4. Trial and Error – Shim Stacking:
   • Begin by adding shims in various combinations, starting with the thicker shims and then adding thinner ones.
   • For timing (muzzle brakes/compensators): Experiment until the muzzle device hand-tightens to a position slightly before your desired indexed position (e.g., 10-20 degrees short of vertical). This allows for final tightening with torque to align perfectly.
   • For concentricity (suppressors): Stack shims until the suppressor hand-tightens securely and feels flush. A visual inspection or the use of an alignment rod (highly recommended for suppressors) will confirm concentricity.
5. Achieving Final Torque: Once you have the correct shim combination that allows the device to index precisely when torqued, apply a high-quality thread locker (if recommended by the muzzle device manufacturer) and use a torque wrench to tighten the device to the manufacturer's specified foot-pounds. Over-tightening can damage threads; under-tightening can lead to loosening.
6. Final Alignment Check: For suppressor installations, a final check with an alignment rod is indispensable. This rod is inserted into the bore from the chamber end and should pass freely through the suppressor's bore without touching the baffles. If it touches, re-shim until perfect.

The Dead Air Difference: A Commitment to Excellence

Dead Air Armament has established itself as a leading name in the suppressor industry, renowned for its innovative designs and uncompromising quality. This commitment extends beyond their flagship suppressors to every accessory they produce, including something as seemingly simple as a shim kit. The Dead Air DA001 Shim Kit is not just a collection of metal rings; it's a testament to Dead Air's dedication to providing shooters with the tools they need for peak performance and unwavering reliability.

Choosing Dead Air means choosing meticulous engineering. Even components like shims are manufactured to precise tolerances, ensuring they perform exactly as intended, every time. Investing in Dead Air accessories, available at trusted sources like DEGuns, means investing in the longevity and optimal function of your entire firearm system. This attention to detail offers peace of mind, allowing you to focus on the shooting experience rather than worrying about potential equipment failure.

Maintaining Your Firearm Investment

Properly installed muzzle devices, secured with the Dead Air DA001 Shim Kit, significantly contribute to the overall health and longevity of your firearm. By preventing undue stress on barrel threads and ensuring optimal gas flow, you minimize wear and tear on crucial components. This proactive approach to firearm maintenance ensures that your rifle or pistol, along with its valuable accessories, will continue to perform reliably for years to come. Whether you're a competitive shooter, a hunter, or a recreational enthusiast, maximizing the lifespan and efficiency of your gear is always a smart decision.

Frequently Asked Questions About Muzzle Device Shims

Q: Can I reuse shims from the Dead Air DA001 Kit?
A: Yes, shims are designed for repeated use. As long as they are not bent, damaged, or significantly corroded, they can be cleaned and reused for different muzzle device installations.

Q: What if my muzzle device still isn't timed correctly after using the shims?
A: Double-check your shim stacking. Ensure you've placed the thickest shims first and are incrementally adding thinner ones to achieve the desired rotation. Sometimes, a very specific combination is needed, and minor adjustments to your stack (e.g., swapping a .006" and .004" for two .005" if available in another kit, or trying different sequences) might be necessary. Also, ensure you are applying the correct torque.

Q: Are these shims compatible with all 1/2"-28 threaded muzzle devices and barrels?
A: Yes, the Dead Air DA001 Shim Kit is specifically designed for barrels and muzzle devices that utilize the 1/2"-28 tpi thread pattern, making them broadly compatible across many firearms and accessories with this threading.

Q: Do I need shims if my barrel has a perfectly flat shoulder?
A: Even with a seemingly perfect barrel shoulder, shims are still highly recommended, especially for suppressor use. While the shoulder provides a seating surface, shims allow for the fine-tuning necessary to achieve perfect concentricity and, if applicable, precise timing of muzzle brakes or flash hiders. They compensate for minute variances that even precision machining can sometimes leave, providing an ideal, flat, and parallel surface for the muzzle device to seat against.

Q: How do I know if my muzzle device is concentric without a special rod?
A: While a dedicated alignment rod is the most reliable method for checking suppressor concentricity, a visual inspection can provide a rough idea. Looking down the bore from the chamber end (with the firearm unloaded and pointed in a safe direction), you should see a perfectly even ring of light around the entire circumference of the suppressor's exit aperture. Any unevenness suggests misalignment. For precision, however, an alignment rod is strongly advised.

Product Specifications

Feature	Detail
Brand	Dead Air
Model	Shim Kit
Thread Pattern	1/2"-28
Shim Sizes	.004", .006", .060"
MPN	DA001
SKU	137789
UPC	810128160605
