The Hornady Lock-N-Load Cartridge Gauge in .22-250 Rem: Unlocking Precision and Safety in Handloading

For anyone dedicated to the pursuit of precision and safety in handloading ammunition, the ability to meticulously inspect every component is paramount. Whether you are a seasoned reloader with decades of experience or just beginning your journey into the rewarding world of custom ammunition, ensuring that your cases and finished cartridges conform to exacting standards is not just a best practice – it’s a critical requirement. This is especially true when working with high-performance cartridges like the .22-250 Remington, a flat-shooting, high-velocity round favored by varmint hunters, long-range enthusiasts, and target shooters for its remarkable accuracy potential. To unlock that potential and guarantee flawless function, reliable chambering, and consistent performance, an essential tool like the Hornady Lock-N-Load Cartridge Gauge in .22-250 Rem is indispensable.

Why Precision in Reloading Matters: The Foundation of Safe and Accurate Ammunition

Every aspect of a reloaded cartridge, from the primer and powder to the bullet and the case itself, contributes to its ultimate performance. However, the brass case serves as the very foundation, dictating how the cartridge interacts with your firearm’s chamber and, critically, how safely and consistently the internal ballistics unfold. Inconsistent case dimensions can lead to a litany of problems, ranging from minor annoyances to dangerous malfunctions:

• Chambering Issues: If a re-sized case or loaded round is too long, or if its shoulder is not properly set back, it may not fully seat in the rifle's chamber. This can prevent the bolt from closing completely, leading to an unsafe "out-of-battery" condition, or simply make it impossible to load the round, costing valuable time in the field or at the range.
• Headspace Problems: Incorrect headspace – the distance between the face of the bolt and the shoulder or rim of the cartridge – can be catastrophic. Excessive headspace can lead to dangerous case stretching, potential case head separation, and even ruptured primers, allowing hot gas to escape. Insufficient headspace can prevent the bolt from closing entirely, as mentioned above.
• Reduced Accuracy: Inconsistent case dimensions mean inconsistent bullet tension, powder burn, and overall cartridge geometry. This variability directly translates to a lack of uniformity in projectile velocity and trajectory, severely impacting accuracy and making tight groups an impossibility.
• Component Waste: Trial-and-error reloading, where you only discover issues when trying to chamber a round in your firearm, leads to wasted primers, powder, bullets, and precious time. A dedicated gauge allows for early detection of issues, preventing unnecessary material consumption.
• Safety Concerns: Ultimately, an out-of-spec cartridge poses a significant safety risk. Overpressure situations, case ruptures, and firearm damage are all potential consequences of neglecting proper dimensional checks.

For the dedicated .22-250 Remington reloader, these concerns are particularly acute. This high-pressure, bottlenecked cartridge demands meticulous attention to case sizing, especially shoulder setback, to ensure reliable feeding and extraction in bolt-action rifles, where it most commonly finds its home.

The Hornady Lock-N-Load Cartridge Gauge: Your Diagnostic Partner

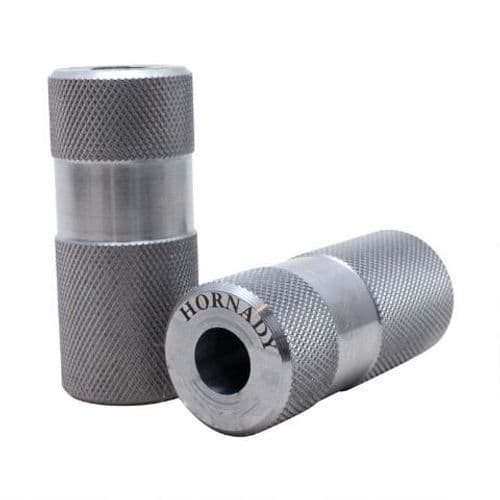

The Hornady Lock-N-Load Cartridge Gauge is specifically engineered to provide a simple, yet profoundly effective method for checking the critical dimensions of your .22-250 Remington cases and loaded ammunition. It’s designed to quickly tell you if your cases have been properly sized after firing and if your finished cartridges will safely and reliably chamber in a SAAMI-spec (Sporting Arms and Ammunition Manufacturers' Institute) chamber.

Key Functions and What It Checks:

This specialized gauge offers a direct, unequivocal answer to the question: "Will my ammunition fit?" It provides confirmation of:

• Overall Case Length: Ensures your brass, once trimmed, is not excessively long, which could interfere with the rifle’s chamber or crimp.
• Shoulder Setback (Headspace): Crucially verifies that the case shoulder has been pushed back sufficiently during resizing to allow for proper chambering and safe headspace. This is vital for bottlenecked cartridges like the .22-250 Rem, preventing hard bolt closure or dangerous excessive headspace.
• Base Diameter: Checks for any excessive bulging near the case head, which could prevent the cartridge from entering the chamber.
• Rim Thickness/Diameter: Confirms these critical dimensions for reliable extraction and proper seating.
• Overall Loaded Cartridge Length (COAL): While not providing a precise measurement, it confirms that your finished cartridge is not too long to chamber correctly. This is particularly important if you are seating bullets close to the lands of your rifle's rifling.

How to Use the Hornady Lock-N-Load Cartridge Gauge Effectively:

Utilizing this gauge is straightforward, making it an ideal quality control step for every batch of ammunition you produce.

1. Prepare Your Case/Cartridge: Ensure your brass is clean and dry. For fired cases, decapping and initial cleaning are often recommended. For resized brass, ensure it has been sized and trimmed. For loaded rounds, simply handle them as you would ready-to-fire ammunition.
2. Insert the Case/Cartridge: Carefully drop the .22-250 Remington case (either empty and resized, or a fully loaded round) into the gauge.
3. Observe the Fit:
   • Proper Fit: The case or loaded round should drop smoothly into the gauge under its own weight and seat flush or slightly below the top surface of the gauge. This indicates that your brass has been properly sized, and your loaded cartridge adheres to SAAMI specifications for chambering.
   • Tight Fit/Sticking Out: If the case or cartridge does not drop fully into the gauge, or if it protrudes significantly from the top, it indicates an issue. This could mean:
     • The case is too long and needs trimming.
     • The shoulder has not been pushed back enough (insufficient sizing or too much headspace on your die setting).
     • The bullet is seated too long for a SAAMI-spec chamber.
     • There is a bulge near the case head.
4. Troubleshooting: Based on the observation, you can then take corrective action:
   • Case Too Long: Re-trim your cases using a case trimmer.
   • Shoulder Not Set Back Enough: Adjust your full-length sizing die down slightly, or if using a body die, adjust it appropriately. For precision rifle reloaders, this is often referred to as "shoulder bumping" and is crucial for consistent bolt closure and long brass life.
   • Bullet Seated Too Long: Adjust your bullet seating die to seat the projectile deeper.

This immediate feedback loop saves time, components, and potential headaches, allowing you to fine-tune your reloading dies and processes without relying solely on your rifle's chamber, which can often be more forgiving than a precise SAAMI gauge.

Beyond the Basics: Enhancing Your Reloading Process with a Gauge

The Hornady Lock-N-Load Cartridge Gauge isn't just for identifying problems; it's a tool for optimizing your entire reloading workflow:

• Die Setup Confidence: When setting up your full-length sizing dies, this gauge provides objective feedback. Instead of trial-and-error with your actual rifle, you can use the gauge to determine the precise setting required for optimal shoulder bump and case length, especially after firing your brass in a specific rifle. This is critical for maximizing brass life and ensuring smooth chambering for subsequent reloads.
• Batch Consistency: Once your dies are set, regularly checking a few cases from each batch ensures ongoing consistency. This quality control step is far more efficient than waiting until a problem arises.
• Verifying Purchased Ammunition: While primarily for reloaders, this gauge can also be used to check factory ammunition if you suspect a dimensional issue or simply want to understand how a particular brand's ammunition compares to SAAMI specifications.
• Benchtop Security: It's a quick, convenient benchtop check that provides peace of mind. You'll know before you even leave your reloading room that your ammunition is dimensionally correct and ready for the field or range.

Why Hornady? A Legacy of Reloading Excellence

Hornady has been a cornerstone of the shooting and reloading community for generations, known for its unwavering commitment to quality, innovation, and precision. Their Lock-N-Load system is a testament to this, designed to make reloading faster, more efficient, and more consistent. The Hornady 380708 Lock-N-Load Cartridge Gauge for .22-250 Rem is no exception, embodying the brand's dedication to providing reloaders with trustworthy tools. When you choose Hornady, you're investing in decades of expertise and a reputation built on delivering superior performance and safety. This essential tool, like all top-tier reloading equipment, is readily available to serious reloaders through trusted retailers like DEGuns.com, ensuring you have access to the best for your reloading bench.

In the intricate world of handloading, where fractions of an inch can determine success or failure, safety or danger, tools like the Hornady Lock-N-Load Cartridge Gauge are not merely accessories but fundamental necessities. For anyone loading the versatile and popular .22-250 Remington cartridge, this silver gauge represents an investment in precision, consistency, and ultimately, confidence in every shot fired. It empowers you to create ammunition that not only performs optimally but also adheres to the highest standards of safety, setting you up for success whether you're taking down varmints, punching paper, or competing for the highest scores.

Characteristic	Detail
Brand	Hornady
Series	Lock-N-Load Cartridge Gauge
Model	Cartridge Gauge
Caliber	.22-250 Remington
Color	Silver
Function	Ensures a Correct Fit in SAAMI Chambers
SKU	380708
UPC	090255807080
