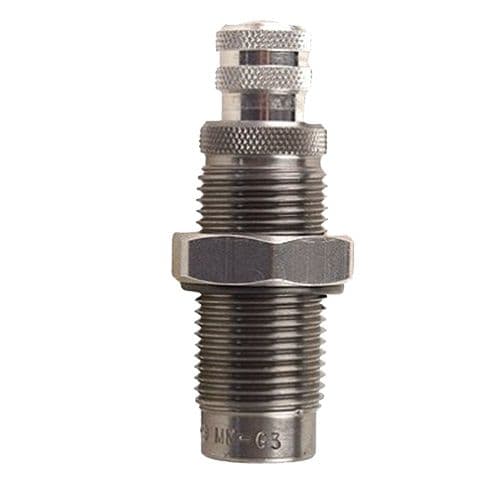

The Lee Factory Crimp Die for .400 Corbon

The Lee Factory Crimp Die for .400 Corbon is an indispensable tool for any serious reloader seeking to produce superior, more reliable, and ultimately safer ammunition. Whether you're a competitive shooter chasing tighter groups, a hunter demanding consistent performance, or a meticulous handloader striving for perfection, this specialized die addresses critical challenges in the reloading process, particularly for the high-performance .400 Corbon cartridge.

Unlocking Precision and Reliability: Why Your .400 Corbon Reloads Need a Lee Factory Crimp Die

For those who meticulously craft their own ammunition, the final step of crimping is far more than a simple closure of the case mouth. It's a critical factor influencing bullet retention, consistency of ignition, and ultimately, the accuracy and reliability of your finished rounds. When handloading a potent cartridge like the .400 Corbon, known for its high pressures and velocity, the importance of a precise and consistent crimp is amplified.

Have you ever experienced bullet setback with your reloaded ammunition? This dangerous phenomenon, where the bullet is pushed deeper into the case during feeding in a semi-automatic firearm, can drastically increase chamber pressure, leading to catastrophic failures. The .400 Corbon, being a bottleneck pistol cartridge, can be particularly susceptible if not properly crimped. The Lee Factory Crimp Die (FCD) for .400 Corbon offers a definitive solution, ensuring your bullets stay exactly where they should be, from magazine to chamber.

Beyond safety, consider the pursuit of optimal performance. Inconsistent crimps can lead to variations in bullet pull, affecting the burn rate of the powder and thus muzzle velocity and point of impact. For competitive shooters, even marginal inconsistencies can be the difference between a podium finish and a missed opportunity. The Lee FCD delivers a uniform crimp every time, contributing to the kind of shot-to-shot consistency that serious reloaders demand.

What Makes the Lee Factory Crimp Die for .400 Corbon an Essential Tool?

The Lee Factory Crimp Die stands apart from traditional crimping methods, offering a unique collet-style crimp that revolutionizes bullet retention and overall ammunition quality. Instead of merely rolling or tapering the case mouth into the bullet, the FCD employs a series of fingers or "collets" that press the case mouth firmly and uniformly around the bullet. This distinct approach provides several significant advantages:

1. Unrivaled Bullet Retention: The primary benefit of the FCD, especially for bottleneck pistol cartridges like the .400 Corbon, is its exceptional ability to prevent bullet setback. The collet mechanism applies a powerful, concentric crimp that firmly grips the bullet, resisting forces encountered during feeding or recoil in high-capacity magazines. This is a crucial safety feature, preventing dangerous pressure spikes.
2. Enhanced Accuracy and Consistency: By creating a uniform crimp every single time, the Lee FCD ensures consistent bullet pull. This consistency in the initial resistance the bullet encounters as the powder ignites leads to more uniform pressure curves, consistent muzzle velocities, and ultimately, tighter groups on target. No more worrying about fliers caused by inconsistent crimps.
3. Versatility with All Bullet Types: Whether you're loading jacketed, plated, or cast lead bullets, the Lee FCD performs admirably. Its collet design crimps the case mouth into the bullet without deforming the bullet itself, making it ideal for a wide array of projectile compositions and shapes. This flexibility allows reloaders to experiment with different bullet designs without sacrificing crimp quality.
4. Extends Brass Life: Unlike some resizing or taper crimp dies that can overwork or excessively size the brass, the Lee FCD's design focuses solely on crimping the case mouth around the bullet. This means less stress on your precious .400 Corbon brass, potentially leading to more reloads per case and extending the life of your valuable components.
5. Simplifies the Reloading Process: The Lee FCD is designed for ease of use. It can be set up quickly on any standard reloading press and provides a distinct, positive feel as it crimps, giving reloaders confidence in their final product. It essentially "factory crimps" your reloads, mirroring the quality and consistency of commercially manufactured ammunition.
6. Eliminates the Need for a Separate Taper Crimp Die: For many handgun cartridges, a separate taper crimp die is necessary to remove the flare from seating and apply a proper crimp. The Lee FCD combines this function with its unique crimping action, streamlining your die set and reducing setup time.
7. Addresses Bulged Cases (Post-Sizing): In some cases, especially with slightly oversized bullets or when resizing operations don't completely iron out case bulges, the Lee FCD has an ingenious feature. It can subtly iron out small case bulges near the base (often referred to as the "Glock bulge" or similar issues), ensuring smoother feeding and chambering, even if your sizing die didn't quite get there. This post-sizing correction is particularly valuable for reliability in semi-automatic pistols.

Understanding the .400 Corbon Cartridge

Before diving deeper into the die's mechanics, it's worth appreciating the cartridge it serves: the .400 Corbon. Developed in the mid-1990s, the .400 Corbon is essentially a .45 ACP case necked down to accept .40 caliber bullets. This innovative design allows .40 caliber bullets to be propelled at impressive velocities from a pistol platform, often exceeding the performance of the 10mm Auto.

The .400 Corbon offers a flatter trajectory and higher energy transfer than its parent .45 ACP, making it an excellent choice for hunting medium game, competitive shooting, and even self-defense for those seeking maximum terminal performance from a handgun. However, its bottleneck design and high-pressure operation necessitate meticulous reloading practices, with crimping being a paramount concern. The transition from the wider .45 ACP case body to the narrower .40 caliber neck requires precise control over the case mouth, making the Lee FCD an ideal companion for this unique cartridge.

How the Lee Factory Crimp Die Works: The Collet Crimp Principle

The magic of the Lee FCD lies in its patented collet design. Here’s a simplified breakdown of its operation:

1. Bullet Seated: After your bullet is seated in a separate seating die, the cartridge is ready for crimping.
2. Die Engagement: As the press ram raises the cartridge into the FCD, the case mouth enters the die body.
3. Collet Activation: Inside the die, a series of hardened steel "fingers" or collets are arranged around a tapered cone. As the shell holder pushes the case further up, the case mouth presses against the collets, forcing them inward.
4. Uniform Crimp: The inward pressure from the collets uniformly squeezes the case mouth around the bullet. Crucially, this happens without affecting the bullet's diameter or deforming its shape. The crimp is applied concentrically and consistently around the entire circumference of the case mouth.
5. Non-Sizing Body: Unlike a traditional sizing die that resizes the entire case, the Lee FCD only crimps the case mouth. The main body of the die is intentionally slightly oversized for the .400 Corbon case, meaning it does not alter the body dimensions of your perfectly sized and loaded cartridge. This preserves the precise dimensions achieved during prior sizing and seating operations.

This collet system provides a more positive and uniform crimp than a simple taper or roll crimp, which can sometimes deform the bullet or lead to an uneven hold. The result is ammunition that performs consistently and reliably, shot after shot.

Comparing Crimping Methods: Taper Crimp vs. Roll Crimp vs. Lee FCD

To fully appreciate the Lee Factory Crimp Die, it’s helpful to understand the landscape of crimping methods:

• Taper Crimp: Most commonly used for semi-automatic pistol cartridges (like the .400 Corbon, .45 ACP, 9mm, etc.). A taper crimp works by gradually reducing the diameter of the case mouth, removing the bell (flare) applied during powder charging and seating. It relies on tension from the resized case to hold the bullet. While effective for basic bullet retention and proper feeding, it doesn't provide the same positive hold against bullet setback as a collet crimp, especially with powerful rounds.
• Roll Crimp: Primarily used for revolver cartridges and some rifle cartridges where the ammunition headspaces on a rim. A roll crimp literally rolls the case mouth into the bullet’s cannelure (a crimping groove). This creates a very strong hold, but it's generally unsuitable for cartridges that headspace on the case mouth or where the bullet lacks a cannelure. Using a roll crimp on a .400 Corbon, which headspaces on the case mouth, would likely lead to severe chambering issues.
• Lee Factory Crimp Die (Collet Crimp): The best of both worlds, and then some, for many cartridges, particularly bottleneck pistol cartridges like the .400 Corbon. It provides a superior crimp to a taper crimp for bullet retention without relying on a cannelure like a roll crimp. Its unique collet system applies uniform pressure around the bullet, preventing setback and promoting consistency, all while ensuring your ammunition chambers smoothly.

Who Benefits Most from Adding the Lee FCD to Their .400 Corbon Reloading Arsenal?

While any reloader will appreciate the quality improvement, certain groups will find the Lee FCD for .400 Corbon particularly invaluable:

• Competitive Shooters: In disciplines where consistent velocity and pinpoint accuracy are paramount, the FCD’s ability to deliver identical bullet pull for every round translates directly into tighter groups and predictable performance. Eliminating variables is key to winning.
• Hunters: When pursuing game, reliable ammunition is non-negotiable. The FCD ensures consistent terminal ballistics and prevents bullet setback that could jam a firearm in a critical moment.
• Self-Defense Ammunition Reloaders: For those who reload their defensive loads (with appropriate caution and component selection), the FCD provides an unparalleled level of safety by virtually eliminating bullet setback, a critical concern for reliability and pressure management in high-stakes situations.
• High-Volume Reloaders: If you process large quantities of .400 Corbon brass, the FCD's efficiency and consistent results save time and reduce frustration associated with problematic rounds.
• Reloaders Experiencing Bullet Setback: If you've ever pulled a round from your magazine only to find the bullet pushed deeper, or if you're concerned about pressure spikes, the FCD is your immediate solution.
• Anyone Seeking "Factory-Like" Quality: For those who strive to replicate or even exceed the quality of commercial ammunition, the Lee FCD is a crucial step in achieving that goal for your .400 Corbon loads.

Setting Up and Using Your Lee Factory Crimp Die for .400 Corbon

Setting up the Lee Factory Crimp Die is straightforward, following general reloading die setup principles:

1. Prepare Your Press: Ensure your reloading press is clean and securely mounted.
2. Mount the Die: Thread the Lee FCD into a station on your press. It can typically be the last station in your reloading sequence, after sizing and seating.
3. Adjust for Ram Travel: With the ram raised to its highest point (full upstroke), screw the FCD down until it just touches the shell holder.
4. Final Adjustment: Lower the ram slightly, then screw the die down an additional 1/4 to 1/2 turn. This provides the desired amount of crimp. Perform a test crimp on a dummy round (a case with a bullet, but no primer or powder). Check the resulting crimp for uniformity and sufficient bullet retention. You should feel a distinct positive crimp when operating the press. Adjust incrementally until you achieve the desired outcome. The unique design means you won't overcrimp or deform the bullet, as the collets simply stop applying pressure once the crimp is complete.
5. Lock Ring: Secure the die in place with its lock ring.

Always remember to consult the specific instructions provided with your Lee Factory Crimp Die and follow all reloading safety guidelines.

Maintenance and Longevity of Your Lee FCD

Like any precision tool, the Lee Factory Crimp Die for .400 Corbon will benefit from proper care:

• Cleaning: Periodically clean the die, especially the inside of the collets, to remove any powder residue or brass shavings. A nylon brush and a suitable gun cleaning solvent work well.
• Lubrication: A light coat of gun oil on the exterior and moving parts (if applicable) will prevent rust, though the internal collets typically don't require lubrication.
• Storage: Store the die in its original box or a secure die box to protect it from dust and moisture.

With minimal care, your Lee Factory Crimp Die will provide decades of reliable service, helping you produce thousands of high-quality .400 Corbon rounds.

Why Choose Lee Precision? A Legacy of Innovation in Reloading

Lee Precision has earned its reputation as a leader in reloading equipment by consistently delivering innovative, high-quality, and affordable tools. Founded on the principle of making reloading accessible to everyone, Lee has introduced numerous groundbreaking designs, including the Factory Crimp Die, that have simplified and improved the handloading process for countless enthusiasts. Their commitment to thoughtful engineering and robust construction means that when you choose a Lee product, you're investing in reliability and performance that stands the test of time. Their tools are designed by reloaders, for reloaders, reflecting a deep understanding of the practical needs and challenges faced by those who craft their own ammunition.

For reloaders of the unique and powerful .400 Corbon cartridge, the Lee Factory Crimp Die (Product Code: 90898) is not just another die; it's a critical component for achieving unparalleled safety, consistency, and accuracy in your handloads. It resolves common issues like bullet setback, enhances overall ammunition quality, and simplifies a crucial step in the reloading process. By choosing this precision tool, you're investing in superior ammunition that performs reliably when it matters most.

This essential tool for your .400 Corbon reloading needs, along with a comprehensive selection of reloading equipment and components, is available from trusted retailers such as DEGuns. Elevate your reloading game and experience the difference a truly consistent crimp can make for your .400 Corbon ammunition.

Feature	Description	Benefit
Product Name	Lee Factory Crimp Die for .400 Corbon	Optimized for specific cartridge
Crimp Type	Collet Crimp	Superior bullet retention, concentricity
Material	Hardened Steel	Durability, long lifespan
Application	Handgun Reloading (for .400 Corbon)	Essential for high-performance pistol loads
Brand	Lee Precision	Trusted name in reloading equipment
UPC	734307908980	Unique Product Identifier
Product Code	90898	Manufacturer's part number
Compatibility	Standard Reloading Presses (7/8"-14 threads)	Wide applicability with existing setups
