Lyman 7777800 Case Prep Multi-Tool: Unlocking Precision and Efficiency in Reloading

For anyone serious about handloading ammunition, the journey from fired brass to a perfectly loaded cartridge is a meticulous one. It's a process where consistency and attention to detail directly translate into accuracy, reliability, and ultimately, a more satisfying shooting experience. At the heart of this process lies case preparation, a foundational step that, when done correctly, ensures optimal performance and extends the life of your brass. The Lyman 7777800 Case Prep Multi-Tool stands out as an indispensable asset for reloaders of all experience levels, offering a comprehensive, compact solution to the most critical aspects of brass preparation.

Why is Case Preparation So Crucial for Reloaders?

Many new reloaders might wonder: "Why do I need to prepare my brass so extensively? Can't I just deprime and resize?" The answer lies in the pursuit of perfection and safety. Fired cases, even after resizing, retain characteristics from their previous use that can negatively impact new loads. These include burrs around the case mouth from firing and trimming, residue and carbon buildup in the primer pocket, and often a crimp around the primer pocket on military brass. Ignoring these details can lead to:

• Inconsistent Ignition: Fouled primer pockets prevent primers from seating fully or igniting consistently, leading to misfires or "hang fires."
• Poor Bullet Seating: Uneven case mouths can deform bullets during seating, leading to reduced accuracy and even potential safety issues.
• Reduced Accuracy: Inconsistent neck tension or bullet concentricity (how straight the bullet sits in the case) directly impacts how uniformly the bullet leaves the barrel.
• Shortened Brass Life: Rough handling or improper preparation can cause brass to crack or fail prematurely.
• Safety Concerns: Improperly seated primers or damaged cases can lead to dangerous pressure issues.

This is precisely the challenge the Lyman 7777800 Case Prep Multi-Tool is designed to solve. It provides the essential tools needed to address these common issues, ensuring every piece of brass is optimally prepared for its next firing cycle.

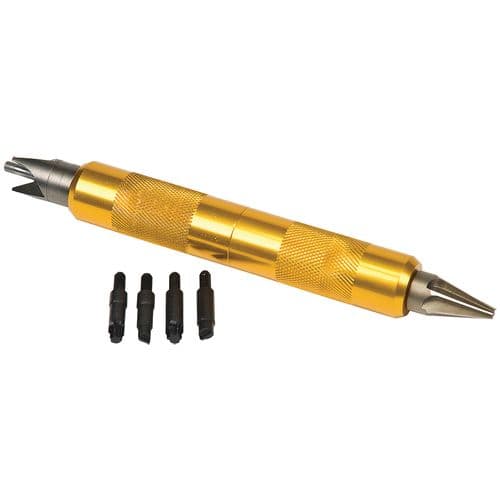

Introducing the Lyman Case Prep Multi-Tool: A Comprehensive Solution

The Lyman 7777800 Case Prep Multi-Tool is engineered with the reloader's needs in mind. It's not just a collection of tools; it's a smartly designed, all-in-one system that brings efficiency and convenience to your reloading bench. Its unique handle design is a testament to thoughtful engineering, unthreading in the middle to serve as a compact storage unit for all its components. Furthermore, both ends of the handle are threaded, allowing two distinct heads to be mounted simultaneously, significantly speeding up workflow by eliminating the need to constantly swap tools.

This clever design makes it an ideal tool for both the seasoned reloader looking to streamline their process and the novice seeking a straightforward, complete set of essential case prep accessories without cluttering their workspace.

A Closer Look at the Included Essential Tools:

The Lyman Case Prep Multi-Tool comes equipped with five fundamental accessories, each playing a vital role in ensuring your brass is primed for superior performance.

1. Outside Deburring Tool

• What it Does: After trimming a case to its proper length, the cutting process inevitably leaves a sharp, often uneven burr on the outside edge of the case mouth. The outside deburring tool precisely chamfers this edge, removing the burr and creating a smooth, beveled exterior.
• Why it's Crucial:
  • Smooth Bullet Seating: A smooth outer edge allows the bullet to enter the case neck without catching or deforming, preventing damage to the bullet's jacket or base. This is especially important for delicate or precision bullets.
  • Improved Concentricity: By ensuring an even entry, the bullet seats straighter and more concentrically within the case, which directly contributes to enhanced accuracy downrange.
  • Reduced Case Mouth Damage: Minimizes the risk of cracking or tearing the case mouth during bullet seating, prolonging brass life.
  • Safety: Prevents sharp edges that could cut hands during handling.

2. VLD Inside Deburring Tool

• What it Does: Similar to the outside deburring tool, the VLD (Very Low Drag) inside deburring tool addresses burrs, but on the inside edge of the case mouth. It creates a smooth, chamfered internal opening. The "VLD" designation indicates it's particularly well-suited for the long, pointed tips of VLD bullets, which require an exceptionally clean and smooth entry.
• Why it's Crucial:
  • Optimal Bullet Entry: A clean, chamfered inner edge guides the bullet smoothly into the case neck, preventing scraping or damage to the bullet's critical bearing surface and ogive (the curved part of the bullet).
  • Consistent Neck Tension: Ensures uniform friction between the case neck and the bullet, which is vital for consistent pressures and velocities.
  • Prevents Bullet Deformation: Eliminates the possibility of the case mouth shaving copper from the bullet jacket or deforming the bullet's base, which would negatively impact accuracy.

3. Large Primer Pocket Cleaner

• What it Does: After a cartridge is fired, combustion residue, carbon, and other fouling accumulate in the primer pocket. This tool is designed to scrape out this residue from large primer pockets, typically found on rifle cartridges and larger pistol cartridges.
• Why it's Crucial:
  • Consistent Primer Seating Depth: A clean primer pocket allows the new primer to seat fully and consistently to the bottom of the pocket, ensuring proper firing pin strike and reliable ignition.
  • Reliable Ignition: Removing carbon buildup ensures that the primer's anvil (the small, three-legged piece inside the primer cup) can properly crush against the priming compound, leading to a strong, consistent spark. Fouled pockets can lead to light strikes or misfires.
  • Prevents "High Primers": Residual debris can prevent the primer from seating flush or slightly below the case head, creating a "high primer" which is a safety hazard and a cause of misfires.

4. Small Primer Pocket Cleaner

• What it Does: Identical in function to the large primer pocket cleaner, but scaled for smaller primer pockets common on most pistol cartridges and some smaller rifle cartridges (e.g., .223 Remington). It meticulously removes fouling from these tighter spaces.
• Why it's Crucial: All the reasons listed for the large primer pocket cleaner apply here. Consistency in primer seating and ignition is paramount, regardless of cartridge size.

5. Large & Small Primer Pocket Reamers

• What it Does: Certain types of ammunition, especially military brass, feature a crimp around the primer pocket. This crimp is designed to hold the primer extremely securely, preventing it from backing out under harsh conditions. However, this crimp must be removed before a new primer can be seated. The primer pocket reamers (both large and small sizes included) are designed to precisely cut away or reform this crimp, creating a clean, unobstructed pocket ready for a new primer. They can also be used to remove burrs or flatten the bottom of an uneven primer pocket.
• Why it's Crucial:
  • Enables Primer Seating: Without reaming or swaging, a new primer simply cannot be seated into a crimped pocket. Attempting to force it can damage the primer, the case, or your reloading press.
  • Consistent Primer Seating: Ensures the new primer seats to the proper depth without excessive force, leading to consistent ignition and pressures.
  • Uniformity: Helps standardize primer pockets across a batch of brass, crucial for precision reloading.

The Ingenuity of the Multi-Tool Design: Beyond Individual Functions

While the individual tools are essential, the true genius of the Lyman 7777800 Case Prep Multi-Tool lies in its integrated design:

• Unrivaled Compactness: In an activity where bench space is often at a premium, this tool is a revelation. Its ability to store all components within the handle means no more lost accessories or cluttered drawers. It's perfectly portable, whether you're taking it to the range or setting up a temporary reloading station.
• Exceptional Efficiency: The dual-ended threaded handle allows you to mount two different tools simultaneously. Imagine deburring the outside of a case with one end, then flipping the tool over to chamfer the inside with the other, all without pausing to swap bits. This feature significantly reduces the time spent on repetitive tasks, allowing you to process brass more quickly and get to the firing line faster.
• Ergonomic and Comfortable: The handle is designed for comfortable grip and ease of use, even during extended periods of case preparation. Its robust construction ensures durability and a long service life.

Who Benefits Most from the Lyman Case Prep Multi-Tool?

This multi-tool is a must-have for a wide array of reloaders, addressing various questions and needs:

• "What are the best tools for getting started in reloading?" This multi-tool offers all the fundamental case prep accessories in one straightforward package, simplifying the initial investment and learning curve.
• "How can I make my handloads more accurate and consistent?" By addressing critical aspects like case mouth preparation and primer pocket consistency, this tool directly contributes to superior ammunition performance.
• "I'm running out of space on my reloading bench. Are there compact solutions?" Absolutely. Its all-in-one, self-storing design is a dream for those with limited space.
• "I want to process military brass. What tools do I need for primer pocket crimps?" The included reamers are specifically designed for this task, making formerly difficult military brass easily reloadable.
• "How can I speed up my case preparation workflow?" The dual-ended design allows for faster transitions between operations, enhancing efficiency.
• Precision Shooters: For disciplines like F-Class, Benchrest, or long-range hunting where every fraction of an inch counts, meticulous case prep is non-negotiable. This tool ensures that foundation is solid.
• High-Volume Reloaders: While not powered, the efficiency gains from the dual-head design can add up significantly over hundreds or thousands of cases.
• Hunters and Casual Shooters: Even if you're not chasing sub-MOA groups, consistent ammunition is safer and more enjoyable to shoot. This tool helps achieve that consistency with minimal fuss.

Why Choose Lyman for Your Reloading Needs?

Lyman has been a cornerstone in the reloading industry for over a century, earning a reputation for innovation, quality, and reliability. When you choose a Lyman product, you're investing in a legacy of precision tools designed by reloaders, for reloaders. Their commitment to improving the handloading experience is evident in products like the Case Prep Multi-Tool, which combines practical design with robust functionality. Lyman tools are built to last, providing years of dependable service on your reloading bench.

Integrating the Multi-Tool into Your Reloading Workflow

The Lyman Case Prep Multi-Tool seamlessly integrates into any standard reloading process. Typically, after decapping and resizing your brass, and often after trimming to length, the case prep steps begin:

1. Inspect Cases: Look for any damage, cracks, or excessive wear.
2. Trim to Length (if necessary): Use a case trimmer to bring brass back to specification.
3. Deburr Case Mouth (Outside): Use the outside deburring tool to remove external burrs.
4. Chamfer Case Mouth (Inside): Use the VLD inside deburring tool to smooth the internal opening.
5. Clean Primer Pockets: Select the appropriate large or small primer pocket cleaner to remove carbon and fouling.
6. Ream Primer Pockets (if crimped): If working with military or crimped brass, use the appropriate large or small primer pocket reamer to remove the crimp.
7. Final Inspection: Give the case a quick visual check to ensure all steps are complete and the brass is ready for priming and powder charging.

By following these steps with the Lyman Case Prep Multi-Tool, you ensure each piece of brass is optimally prepared, setting the stage for consistent and accurate ammunition.

Maintaining Your Lyman Case Prep Multi-Tool

Like any precision tool, a little care goes a long way. After use, especially when working with dusty or dirty brass, simply wipe down the tool heads with a cloth. If residue builds up, a soft brush can help. Store the components securely within the handle to protect the cutting edges and ensure longevity. With proper care, your Lyman 7777800 Case Prep Multi-Tool will remain a reliable companion on your reloading journey for years to come.

In summary, the Lyman 7777800 Case Prep Multi-Tool is more than just a collection of accessories; it's a meticulously designed solution that addresses the core needs of case preparation. Its compact, all-in-one, and dual-ended design delivers unmatched convenience, efficiency, and precision, making it an essential addition for anyone seeking to produce higher quality, more consistent, and safer handloaded ammunition. This versatile tool is readily available to enhance your reloading process.

Feature	Detail	Benefit
Brand	Lyman	Trusted name in reloading for over a century.
Model	Case Prep Multi-Tool	Designed specifically for essential brass preparation.
Pieces Included	5 essential tools	Comprehensive solution for common case prep needs.
Tool Types	Outside Deburring, VLD Inside Deburring, Large & Small Primer Pocket Cleaners, Large & Small Primer Pocket Reamers	Covers all critical deburring, cleaning, and reaming tasks.
Handle Design	Double-ended, stores all parts inside	Compact, organized storage; allows two tools to be used simultaneously.
Weight	6 oz	Lightweight and portable for bench or range use.
UPC	011516778000	Unique product identifier for easy tracking and purchasing.
MPN	7777800	Manufacturer Part Number.
SKU (DEGuns)	75205	Stock Keeping Unit for DEGuns.com inventory.
