Achieve Unwavering Precision and Safety in Your .224 Valkyrie Reloads with the Lyman Rifle Case Length Headspace Gauge

For every dedicated reloader, the pursuit of perfection hinges on meticulous attention to detail. Whether you're a seasoned handloader striving for sub-MOA groups, a competitive shooter demanding absolute consistency, or a hunter relying on flawless performance in the field, the integrity of your ammunition is paramount. This is especially true for high-performance cartridges like the .224 Valkyrie, a round revered for its flat trajectory and effectiveness in AR-15 platforms at extended ranges. The critical question often asked is: "How do I ensure my reloaded ammunition is safe, accurate, and consistently performs as expected?" The answer lies in proper case preparation and validation, a process made simple and definitive with essential tools like the Lyman Rifle Case Length Headspace Gauge for .224 Valkyrie.

This indispensable steel gauge, designed specifically for the .224 Valkyrie, is your gateway to understanding and controlling the most vital dimensions of your reloaded brass. It’s the ultimate check for critical parameters that directly impact your rifle's safety, the longevity of your valuable brass, and, ultimately, the precision of your shots. Forget the guesswork; this Lyman gauge provides a clear, undeniable "go/no-go" indication for both headspace and maximum case length, empowering you with the confidence that every round you load meets stringent specifications.

Why is Case Gauging Indispensable for the .224 Valkyrie Cartridge?

The .224 Valkyrie, known for pushing lightweight projectiles at impressive velocities, demands exceptional precision in reloading. Its design as a short-action, high-velocity cartridge optimized for modern sporting rifles (MSRs) means that even slight deviations in case dimensions can lead to significant issues. Here's why a dedicated case gauge is not just a luxury, but a necessity for this specific caliber:

• Safety First: Preventing Catastrophic Failures:
  • Excessive Headspace: This is arguably the most dangerous condition in reloading. If your reloaded cartridge has too much headspace – meaning there's too much clearance between the bolt face and the case shoulder (or rim, for rimmed cartridges) when chambered – the case can stretch excessively upon firing. This stretching puts immense stress on the brass, particularly near the case head, and can lead to dangerous case head separations. A case head separation can vent high-pressure gas directly into the action, potentially damaging the firearm, injuring the shooter, or causing a complete catastrophic failure. The Lyman Headspace Gauge instantly identifies cases with excessive headspace, allowing you to discard or re-process them before they become a hazard.
  • Overly Long Cases: A case that is too long can jam into the rifle's leade (the unrifled portion of the bore just ahead of the chamber). When the bullet is forced into the leade upon chambering, it can increase pressure beyond safe limits, leading to potential overpressure signs like flattened primers, cratered primers, sticky bolt lift, or even worse, damaging the firearm. The Lyman gauge provides a definitive check against maximum allowable case length.
• Optimizing Accuracy and Consistency:
  • Consistent Chambering: For a round to shoot accurately, it must chamber consistently in your rifle. Improper headspace or case length can lead to inconsistent chambering, which in turn leads to variations in bullet seating depth, primer ignition, and ultimately, muzzle velocity. These variations are the enemy of precision. A gauge ensures every case presents itself identically to the chamber.
  • Predictable Performance: By controlling these critical dimensions, you eliminate variables that contribute to erratic ballistic performance. When you know your cases are dimensionally correct, you can isolate other factors (powder charge, bullet seating, primer) in your load development, leading to tighter groups and more predictable shot placement.
• Extending Brass Life (Cost Savings):
  • Minimizing Case Stretch: When brass is repeatedly fired and resized, it naturally stretches. However, excessive stretching due to improper headspace settings or over-resizing significantly reduces the number of times a case can be reloaded. By using a headspace gauge, you can set your sizing die precisely to "bump" the case shoulder just enough to ensure proper chambering, without overworking the brass. This precise control over shoulder setback is crucial for maximizing the lifespan of your valuable .224 Valkyrie brass.
  • Avoiding Premature Fatigue: Brass fatigue leads to cracks and splits. By ensuring correct dimensions, you prevent undue stress on the case, allowing it to withstand more firing cycles before needing to be discarded. This translates directly into significant cost savings over time, as .224 Valkyrie brass can be an investment.

Understanding Headspace and Case Length in Detail

To fully appreciate the value of the Lyman 7832339 gauge, it’s helpful to delve deeper into the concepts of headspace and case length.

What is Headspace?

Headspace refers to the distance between the face of the bolt and the part of the chamber that supports the cartridge. For bottleneck cartridges like the .224 Valkyrie, this measurement is typically taken from the bolt face to the shoulder of the case in the chamber.

• Minimum Headspace ("Go"): This is the shortest allowable chamber dimension. A cartridge that fits this minimum ensures proper feeding and reliable ignition.
• Maximum Headspace ("No-Go"): This is the longest allowable chamber dimension. A cartridge exceeding this indicates excessive clearance, leading to the dangerous stretching discussed earlier.
• Field Headspace: An even longer dimension than "No-Go," indicating a potentially unsafe chamber that should be checked by a gunsmith.

The Lyman Rifle Case Length Headspace Gauge essentially provides an internal "go/no-go" for your resized brass. When you drop a case into the gauge, its shoulder should not extend beyond the "go" step, but it also should not drop so far in that the case mouth is below the "no-go" step, indicating an overly short shoulder.

What is Case Length?

Case length is the overall measurement from the base of the cartridge case to its mouth.

• Maximum Allowable Case Length (MACOL): Every cartridge has a SAAMI (Sporting Arms and Ammunition Manufacturers' Institute) specified maximum case length. If a case exceeds this, it can jam into the rifle's leade when chambered, increasing pressure. Overly long cases can also interfere with proper bullet seating and crimping, leading to inconsistent bullet pull and pressure.
• Minimum Trim-To Length: Reloaders often trim their cases to a slightly shorter "trim-to" length to ensure they never exceed the maximum and to provide a consistent base for bullet seating.

The Lyman gauge allows you to quickly see if your case length falls within the acceptable range. If the case mouth extends beyond the maximum step on the gauge, it's too long and needs trimming.

How the Lyman 7832339 Rifle Case Length Headspace Gauge Works

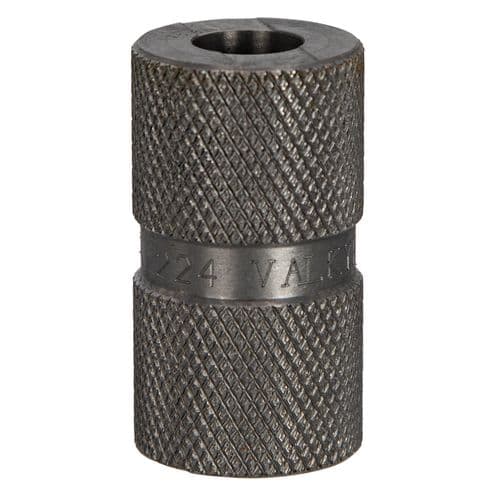

The beauty of the Lyman Rifle Case Length Headspace Gauge 7832339 lies in its simplicity and precision. Crafted from durable steel with a silver finish, it’s designed for longevity and accurate measurement.

1. Preparation: Ensure your brass is clean and dry. It should be decapped and full-length resized as part of your normal reloading process before using the gauge. The gauge measures the dimensions of your resized brass, not fired brass, to ensure it will properly chamber in your rifle.
2. Insertion: Gently drop a resized .224 Valkyrie case into the precision-machined chamber of the Lyman gauge. The case should slide in smoothly without force.
3. Headspace Check: Observe the relationship of the case shoulder to the gauge's internal steps.
   • If the case shoulder is between the "go" and "no-go" steps, your headspace is correct for safe and consistent chambering. This is the ideal scenario.
   • If the case shoulder is below the "go" step, it indicates that your sizing die is set too low, resulting in excessive shoulder setback and potentially dangerous headspace (too much clearance). This brass should not be loaded, and your sizing die needs adjustment.
   • If the case shoulder protrudes above the "no-go" step, it means your sizing die is not bumping the shoulder back enough, and the case will likely not chamber properly in your rifle. You need to adjust your sizing die down slightly.
4. Case Length Check: The top of the gauge has a surface that acts as a reference for maximum case length.
   • If the case mouth is flush with or slightly below this surface, your case length is within specification.
   • If the case mouth extends above this surface, the case is too long and must be trimmed to the appropriate length before loading.

This straightforward "drop-in" method provides immediate feedback, allowing you to quickly sort cases and make necessary adjustments to your sizing die settings. It's a much faster and often more precise method for checking critical dimensions than relying solely on calipers or micrometer measurements, which can be prone to user error or lack the direct chamber-like reference that a gauge provides.

The Lyman Advantage: Trust in a Legacy of Reloading Excellence

For over a century, Lyman has been a cornerstone of the reloading community, consistently delivering innovative, reliable tools that meet the rigorous demands of handloaders. The Lyman Rifle Case Length Headspace Gauge 7832339 for .224 Valkyrie is a testament to this heritage. When you choose a Lyman product, you are investing in:

• Precision Engineering: Each gauge is meticulously machined from high-quality steel, ensuring consistent, accurate measurements that you can trust cycle after cycle. The precise internal dimensions are manufactured to strict SAAMI specifications for the .224 Valkyrie cartridge.
• Durability: Built to withstand the rigors of frequent reloading, this steel gauge offers exceptional longevity, providing reliable service for years to come.
• Ease of Use: Lyman designs tools with the reloader in mind. The drop-in nature of this gauge makes it incredibly user-friendly, providing clear results without complex procedures.
• Reputation: Generations of reloaders have relied on Lyman for their most critical tools. This gauge upholds that tradition, serving as a reliable partner in your quest for optimal ammunition.

Who Benefits Most from the Lyman 7832339 Gauge?

This gauge is an essential tool for a wide spectrum of reloaders:

• Beginner Reloaders: Learning the fundamentals of precise case preparation is vital. This gauge simplifies the understanding of critical dimensions and helps establish good habits from the outset. It removes much of the uncertainty when setting up new sizing dies.
• Experienced Reloaders: Even veterans need reliable tools to maintain consistency. This gauge serves as a quick, definitive check, especially when processing large batches of brass or fine-tuning loads for maximum accuracy. It’s an indispensable part of a quality control regimen.
• Competitive Shooters (especially PRS/NRL/F-Class): In disciplines where every fraction of an inch counts, ammunition consistency is king. Ensuring perfect case dimensions contributes directly to repeatable accuracy, minimizing flyers, and maximizing competitive edge.
• Hunters: Reliable ammunition is non-negotiable when a trophy animal is on the line. This gauge helps ensure every round chambers smoothly and performs reliably in the field, minimizing the risk of misfires or failures when it matters most.
• Anyone Concerned with Safety: If safety is your primary concern when reloading (and it should be!), this gauge provides an invaluable layer of protection against potentially dangerous ammunition.

Integrating the Lyman Gauge into Your Reloading Process

The ideal time to use the Lyman Rifle Case Length Headspace Gauge is immediately after full-length resizing your .224 Valkyrie brass. By checking cases at this stage, you can:

• Verify Die Settings: Confirm that your sizing die is properly adjusted to "bump" the shoulder back just enough for proper chambering without over-resizing.
• Identify Problem Brass: Quickly flag any cases that are out of specification due to extreme stretching, improper previous resizing, or manufacturing defects.
• Ensure Trimming is Necessary: Determine which cases exceed maximum length and require trimming.

Making this gauge a standard part of your brass preparation routine is a small investment of time that yields immense dividends in safety, accuracy, and peace of mind.

Your Trusted Source: DEGuns for Lyman Reloading Tools

When you're ready to elevate your reloading precision, trust DEGuns as your source for authentic Lyman reloading equipment. As a leading supplier of firearms, ammunition, and reloading components, DEGuns understands the needs of serious shooters and handloaders. The Lyman Rifle Case Length Headspace Gauge 7832339 for .224 Valkyrie, along with a comprehensive array of other Lyman tools and accessories, is available at DEGuns, ensuring you receive genuine products backed by expert support. Equipping your reloading bench with a precise tool like this Lyman gauge from a reputable supplier like DEGuns means you’re investing in your safety and the quality of your reloads.

In conclusion, for anyone reloading the .224 Valkyrie cartridge, the Lyman 7832339 Rifle Case Length Headspace Gauge is more than just a tool; it's a fundamental component of safe, accurate, and efficient handloading. It empowers you to confidently produce ammunition that meets the highest standards, ensuring optimal performance from your rifle and maximizing your enjoyment of the shooting sports.

Feature	Detail
Brand	Lyman
Model	Rifle Case Length
Caliber	.224 Valkyrie
Material	Steel
Finish	Silver
MPN	7832339
UPC	011516723390
