The Essential Guide to Muzzle Device Alignment: Precision with the Rugged Suppressors SA001 Shim Kit

For firearm enthusiasts, competitive shooters, and anyone investing in a high-performance rifle system, the pursuit of precision and reliability is paramount. One often-overlooked yet critically important aspect of firearm assembly is the proper alignment of muzzle devices, especially when considering the addition of a sound suppressor. This is where precision tools like the Rugged Suppressors SA001 Shim Kit for 1/2"-28 tpi barrels become not just beneficial, but absolutely indispensable.

Why is Muzzle Device Alignment Critical? The Risk of Baffle Strikes

Imagine spending significant resources on a top-tier rifle, an advanced optic, and a state-of-the-art suppressor. All these components are designed to work in harmony, but a single misalignment at the muzzle can jeopardize the entire system. When a muzzle device – whether it’s a flash hider, a muzzle brake, or a suppressor mount – is not perfectly concentric with the bore of the barrel, the projectile can clip or strike internal components of a suppressor, a catastrophic event known as a "baffle strike."

A baffle strike can lead to several severe consequences:

• Catastrophic Suppressor Damage: Baffles are precision-engineered to manage gas flow and reduce sound. A strike can deform or destroy them, rendering the suppressor unusable and often unrepairable, voiding warranties.
• Safety Hazards: Fragments from damaged baffles or the projectile itself can exit the suppressor at dangerous angles, posing a risk to the shooter and bystanders.
• Loss of Accuracy: Even a minor clip can destabilize the projectile as it exits, leading to diminished accuracy and inconsistent shot placement.
• Financial Loss: The cost of replacing a damaged suppressor can be substantial, often equaling or exceeding the initial investment.

Ensuring perfect concentricity – meaning the muzzle device's bore is perfectly centered and aligned with the barrel's bore – is the single most effective way to mitigate these risks. This is precisely the problem the Rugged Suppressors SA001 Shim Kit is engineered to solve, offering peace of mind and preserving your valuable equipment.

Understanding the 1/2"-28 Thread Pattern

The Rugged Suppressors SA001 Shim Kit is specifically designed for barrels with a 1/2"-28 thread pattern. This is one of the most common thread specifications for rifle barrels in the United States, particularly for AR-15 platform rifles chambered in .223 Remington/5.56 NATO.

• 1/2" refers to the nominal outer diameter of the threads.
• -28 indicates that there are 28 threads per inch.

Given its widespread use, many popular muzzle devices, including flash hiders, muzzle brakes, and suppressor mounts from various manufacturers, utilize this thread pitch. If your rifle features a 1/2"-28 threaded barrel, this shim kit is the precise tool you need for optimal muzzle device installation and alignment.

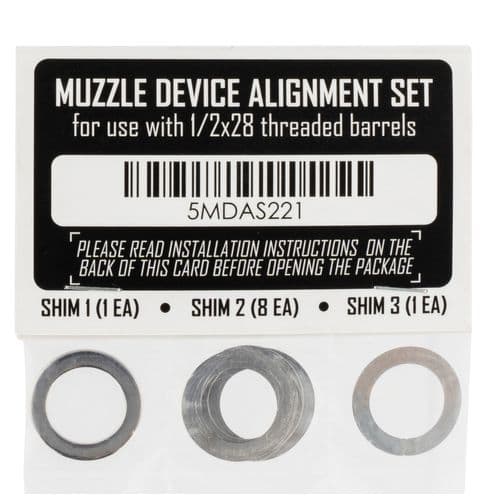

Introducing the Rugged Suppressors SA001 Shim Kit: Precision Engineered for Perfection

The Rugged Suppressors SA001 Shim Kit is a meticulously crafted set of shims designed to provide precise indexing and alignment for your muzzle device. Unlike less precise methods like crush washers, which can deform and introduce misalignment, shims offer a solid, stable, and repeatable solution.

What makes the SA001 kit stand out?

• Precision Manufacturing: Each shim in the kit is manufactured to incredibly tight tolerances, ensuring consistent thickness and flatness. This precision is critical for achieving perfect concentricity.
• Durable Materials: Constructed from high-quality materials, these shims are designed to withstand the harsh conditions of firearm operation, including high temperatures and pressures. They provide a stable platform that won't degrade over time.
• Variety of Thicknesses: A comprehensive kit typically includes shims of varying thicknesses. This allows the installer to fine-tune the indexing of the muzzle device, ensuring it tightens down in the exact desired rotational position (e.g., timed perfectly upright for a muzzle brake) while maintaining concentricity. The combination of shims allows for micro-adjustments to achieve that perfect rotational alignment without overtightening or under-tightening, which can both lead to issues.
• Optimized for Suppressor Use: While beneficial for any muzzle device, this kit is particularly vital for suppressor hosts. Suppressors demand absolute concentricity to prevent baffle strikes, and the SA001 kit delivers the necessary precision.

How to Properly Install a Muzzle Device Using the Rugged Suppressors SA001 Shim Kit

For users asking "how do I properly install a muzzle device for my suppressor?" or "what's the best way to time a muzzle brake?", the Rugged Suppressors SA001 Shim Kit provides the answer. While professional gunsmithing is always recommended for critical installations, here's a general guide to using shims:

1. Preparation is Key:
   • Safety First: Ensure the firearm is unloaded and cleared. Remove the magazine and visually and physically check the chamber.
   • Clean Threads: Thoroughly clean the barrel's muzzle threads and the internal threads of your muzzle device. Use a brush and degreaser to remove any carbon, grease, or debris that could impede proper seating or alignment.
   • Gather Tools: You'll need the Rugged Suppressors SA001 Shim Kit, a torque wrench, the appropriate wrench for your muzzle device, and possibly a vice block for securing the upper receiver.
2. Initial Dry Fit (No Shims):
   • Thread the muzzle device onto the barrel by hand. Note where it stops and how many rotations it takes to fully seat without shims. This gives you a baseline.
   • If it times perfectly without shims, you're incredibly lucky, but still, a concentricity rod should be used to double-check alignment before firing with a suppressor.
3. Determining Shim Stack:
   • The goal is to select a combination of shims that allows the muzzle device to fully tighten into its desired rotational position (e.g., 12 o'clock for a muzzle brake) within a specific torque range, without overtightening or leaving it loose.
   • Start by adding a thin shim and incrementally adding thicker shims. As you add shims, the muzzle device will stop turning earlier. You want to reach a point where, with hand tightening, the muzzle device is just slightly past (e.g., 5 degrees) the desired alignment mark when it contacts the shims. This slight overtightening by hand means you will be able to bring it precisely into alignment when torquing.
   • Avoid Crush Washers: Never use a crush washer in conjunction with precision shims, especially for suppressor applications. Crush washers are designed to deform, making precise alignment difficult and unstable. Shims provide a rigid, non-deforming spacer.
4. Torque and Final Alignment:
   • Once you've selected your shim stack, apply a small amount of high-temperature thread locker (e.g., Rocksett, which is resistant to high heat) to the barrel threads. Avoid getting it inside the bore or excessive amounts.
   • Thread the muzzle device, with the selected shim stack, onto the barrel.
   • Using your torque wrench, gradually tighten the muzzle device to the manufacturer's specified torque (often around 30-40 ft-lbs for muzzle devices, but always check your specific muzzle device and barrel manufacturer's recommendations). As you tighten, the shims will compress slightly, allowing the muzzle device to "time" or rotate into its final desired position.
5. Crucial Step: Verification with a Concentricity Rod:
   • This step is absolutely non-negotiable for suppressor use. After installation, insert a high-quality concentricity rod (specific to your caliber) through the bore of the barrel and into the muzzle device.
   • Observe the rod's position relative to the internal bore of the muzzle device. If the rod appears perfectly centered and does not touch any part of the device's opening or the suppressor mount's internal features, you have achieved proper concentricity.
   • If the rod appears off-center or touches, even slightly, the installation is not safe for a suppressor. You will need to remove the muzzle device, adjust your shim stack, and repeat the process until perfect concentricity is achieved. Do not skip this step!

Who Benefits Most from the Rugged Suppressors SA001 Shim Kit?

This kit is a fundamental accessory for a wide range of firearm users:

• Suppressor Owners: This is arguably the most critical audience. Ensuring suppressor concentricity is paramount for safety and longevity. If you own or plan to purchase a suppressor, this kit is an essential component of your toolkit.
• Custom Builders & Enthusiasts: For those who frequently swap muzzle devices, build their own rifles, or demand the highest level of precision in their firearm assemblies.
• Competitive Shooters: Consistency and reliability are key in competition. A perfectly aligned muzzle device contributes to optimal performance and recoil management.
• Anyone Installing a Muzzle Device: Whether it's a flash hider to reduce muzzle flash, a muzzle brake to mitigate recoil, or a suppressor mount, achieving proper timing and alignment ensures the device functions as intended and looks aesthetically correct.

The Advantages of Precision Shims Over Crush Washers

For many years, crush washers were the standard for timing muzzle devices. However, they have significant drawbacks, especially for suppressor applications:

• Crush Washers: These are designed to deform (crush) as they are tightened, providing resistance and allowing for timing adjustments.
  • Disadvantages:
    • Imprecise Alignment: Because they deform unevenly, they can introduce a slight cant or misalignment to the muzzle device, compromising concentricity.
    • Non-Repeatable: Once crushed, they cannot be reliably reused, and each installation requires a new washer.
    • Less Stable: The deformed material can be less stable under repeated firing, potentially leading to the muzzle device loosening or shifting over time.
    • Increased Baffle Strike Risk: The primary reason they are ill-suited for suppressors is their propensity for slight misalignment, which directly increases the risk of baffle strikes.
• Precision Shims (like the SA001 Kit): These are thin, flat, non-deforming washers of varying thicknesses.
  • Advantages:
    • Perfect Concentricity: Shims stack to create a rigid, flat surface, ensuring the muzzle device tightens square and perfectly concentric to the barrel's bore.
    • Repeatable & Reusable: Shims do not deform, allowing for consistent installation and reinstallation.
    • Superior Stability: They provide a solid, unwavering mounting surface for the muzzle device.
    • Reduced Baffle Strike Risk: By maintaining absolute concentricity, they dramatically reduce the chance of damaging your suppressor.

When considering the cost of a suppressor or a high-performance muzzle brake, the minor investment in a quality shim kit like the Rugged Suppressors SA001 is a small price to pay for significant protection and enhanced performance. It’s a testament to responsible firearm ownership and a commitment to precision.

Long-Term Value and Trust

Investing in a Rugged Suppressors SA001 Shim Kit means investing in the longevity and optimal performance of your firearm system. It’s a tool that provides both immediate functional benefits and long-term peace of mind. By preventing costly damage to suppressors and ensuring consistent accuracy, this kit proves its value with every shot. Rugged Suppressors is a brand known for its robust and reliable products, and this shim kit reflects that commitment to quality and precision, helping users achieve professional-grade results from their own workbench.

Where to Acquire Your Rugged Suppressors SA001 Shim Kit

For those ready to elevate their firearm assembly standards and protect their valuable investments, the Rugged Suppressors SA001 Shim Kit for 1/2"-28 tpi is available at trusted retailers like DEGuns. DEGuns provides access to a comprehensive selection of firearm accessories and components, ensuring you have the right tools for every task. Ensure you choose the correct thread pattern for your barrel – in this case, the highly common 1/2"-28.

Don't leave the integrity of your muzzle device installation to chance. The Rugged Suppressors SA001 Shim Kit is the definitive solution for achieving perfect alignment, enhancing safety, and preserving the life of your firearm components, especially your suppressor. Make the smart choice for precision and performance.

Attribute	Detail
Brand	Rugged Suppressors
Model Name	Shim Kit
Thread Type	1/2"-28 TPI
Product SKU	SA001
UPC	859383006426
