Achieving Optimal Precision: The Rugged Suppressors SA002 Shim Kit for 5/8"-24 Threaded Barrels

For firearm enthusiasts, competitive shooters, and dedicated hunters, the pursuit of precision and reliability is paramount. When it comes to attaching critical muzzle devices, especially suppressors, the margin for error is virtually nonexistent. A perfectly aligned muzzle device is not just about aesthetics; it's about safeguarding expensive equipment, ensuring consistent accuracy, and, most importantly, enhancing safety. This is where the Rugged Suppressors SA002 Shim Kit for 5/8"-24 tpi emerges as an indispensable tool, specifically engineered to eliminate common installation challenges and elevate your firearm's performance.

Why Precision Muzzle Device Alignment Matters: Preventing Baffle Strikes and Ensuring Safety

Imagine investing in a high-quality suppressor, only to have its internal baffles damaged or destroyed by an improperly aligned muzzle device. This dreaded scenario, known as a "baffle strike," is a significant concern for suppressor owners. A baffle strike occurs when the bullet, upon exiting the barrel, makes contact with the internal components of the suppressor due to a slight misalignment of the muzzle device (like a muzzle brake or flash hider) to which the suppressor is attached. Even a minute deviation, imperceptible to the naked eye, can lead to catastrophic damage, costly repairs, and a severe safety risk.

This isn't just a hypothetical problem; it's a real and common issue that firearm owners face. Questions like "How do I prevent baffle strikes on my suppressor?" or "What's the best way to ensure my muzzle brake is perfectly straight?" are frequently asked in the firearms community. The answer lies in meticulous alignment, and the Rugged Suppressors SA002 Shim Kit provides the exact solution. It transforms a potentially hazardous and frustrating installation process into a straightforward, precise operation.

Understanding the 5/8"-24 Thread Pattern: Common Applications and Compatibility

The SA002 Shim Kit is specifically designed for barrels featuring the 5/8"-24 thread pattern. This particular thread pitch is one of the most widely used and recognized standards for rifle barrels, especially those chambered in popular calibers such as:

• .308 Winchester / 7.62x51mm NATO: A classic and incredibly versatile rifle cartridge.
• 6.5 Creedmoor: Renowned for its long-range accuracy and minimal recoil.
• 300 Blackout (Supersonic and Subsonic): A favorite for suppressed applications due to its efficient use of powder and quieter performance with subsonic loads.
• .30-06 Springfield: A venerable hunting and sporting cartridge.
• Larger bore calibers: Many .338, .375, and even some .45 caliber rifles also utilize this robust thread pattern.

If your rifle falls into one of these categories and you plan to install a muzzle brake, flash hider, or direct-thread suppressor, the Rugged Suppressors SA002 Shim Kit is the optimal choice for ensuring a perfectly concentric and timed attachment. This kit answers the question, "Will this shim kit work with my 308 rifle?" or "What tools do I need for my 6.5 Creedmoor muzzle device?" directly, by providing the precise fit for your 5/8"-24 threaded barrel.

The Superiority of Shim Kits: Why They Outperform Crush Washers and Jam Nuts

Historically, various methods have been used to time muzzle devices, including crush washers and jam nuts. While these options may suffice for basic flash hider installations, they present significant drawbacks when suppressor use is intended:

• Crush Washers: These are designed to deform and "crush" into place, creating a tight fit. However, this deformation can introduce subtle angles and inconsistencies that lead to misalignment. Once crushed, they cannot be reused, and their inconsistent pressure can negatively impact precision, making them unsuitable for suppressor use where concentricity is vital. They are a common cause of baffle strikes.
• Jam Nuts: While reusable, jam nuts require precise torquing to prevent loosening, and they often add unnecessary length to the barrel and muzzle device assembly. Achieving perfect timing with a jam nut can also be more cumbersome than with shims.

Precision Shim Kits, like the Rugged Suppressors SA002, offer a clear advantage:

• Controlled Timing: Shims allow for precise indexing and timing of muzzle devices without introducing angular deviations. By stacking shims of varying thicknesses, you can achieve the exact rotational alignment needed.
• Optimal Concentricity: Shims provide a flat, consistent seating surface, ensuring the muzzle device is perfectly concentric with the bore. This is paramount for preventing baffle strikes and maximizing suppressor efficiency.
• Repeatable Performance: Unlike crush washers, shims provide a consistent interface. If you remove and reattach your muzzle device or suppressor, the shims will provide the same alignment every time, assuming proper torque application.
• Durability and Reusability: Made from durable materials, shims are designed for longevity and can often be reused across multiple installations, offering long-term value.

For those asking, "What's the best method for timing a suppressor host's muzzle device?" or "Are shims really necessary for my silencer?" the expert consensus points to high-quality shim kits for their ability to deliver uncompromising concentricity and superior performance.

Rugged Suppressors SA002: Engineered for Excellence

Rugged Suppressors has established itself as a leader in the NFA (National Firearms Act) and suppressor accessory market, known for its robust and reliable products. The SA002 Shim Kit embodies this commitment to quality. Each shim in the kit is precision-machined to exacting tolerances, ensuring consistent thickness and flatness.

Key Features that Set the SA002 Apart:

• High-Quality Materials: While specific material details may vary, Rugged Suppressors consistently uses durable, corrosion-resistant materials for its components, ensuring the shims withstand the harsh environment of firearm use.
• Comprehensive Selection: The kit includes a variety of shims of different thicknesses, allowing you to fine-tune the timing of your muzzle device to perfection. This eliminates guesswork and ensures you have the right combination for any installation.
• Designed for Purpose: Rugged Suppressors understands the critical role shims play in suppressor longevity. The SA002 kit is specifically engineered to meet the demanding requirements of suppressor users, providing peace of mind with every shot.
• Ease of Use: While precision is the goal, the SA002 kit is designed for straightforward application by both experienced gunsmiths and competent home users.

Step-by-Step: Installing Your Muzzle Device with the SA002 Shim Kit for Perfect Alignment

Achieving perfect muzzle device alignment with the Rugged Suppressors SA002 Shim Kit is a straightforward process that prioritizes precision. While professional installation is always recommended for critical components, here's a general guide to help you understand the process and its importance:

1. Safety First: Always ensure your firearm is unloaded and cleared before beginning any work.
2. Clean the Threads: Thoroughly clean both the barrel threads and the internal threads of your muzzle device. Any debris can compromise alignment.
3. Initial Fitment: Thread your muzzle device onto the barrel without any shims. Note how many rotations it takes to fully seat and where the device stops in relation to its desired timed position (e.g., ports facing specific directions for a brake).
4. Determine Shim Thickness: This is the critical step.
   • Place a small number of shims (e.g., the thickest one or two) onto the barrel threads.
   • Thread the muzzle device onto the barrel and shims.
   • As you tighten it by hand, observe the position. If it over-rotates past the desired timing, you need fewer or thinner shims. If it stops short, you need more or thicker shims.
   • Experiment by adding or removing shims from the kit until the muzzle device comes to its perfectly timed position when hand-tightened, with a slight amount of resistance before full seating. You want it to be just short of its final, torqued position.
   • Remember, the goal is to achieve timing with the least amount of shims possible while still achieving a perfectly perpendicular fit.
5. Apply Thread Locker (Optional but Recommended): A small amount of medium-strength, removable thread locker can be applied to the barrel threads (avoiding the shims themselves) for added security, especially on high-recoil firearms.
6. Torque to Specification: Using a quality torque wrench, tighten the muzzle device to the manufacturer's recommended torque specifications. This is crucial for a secure and consistent fit. Do not overtighten, as this can damage threads or the muzzle device.
7. Verify Concentricity (Crucial for Suppressors): This is the most important step for suppressor users. Insert a concentricity rod (also known as an alignment rod) into your barrel, through the mounted muzzle device, and into the suppressor. The rod should pass through freely without touching any part of the muzzle device or suppressor baffles. If it touches, your alignment is off, and you must repeat the shimming process until it is perfect. This step is non-negotiable for anyone mounting a suppressor.

Following these steps with the Rugged Suppressors SA002 Shim Kit ensures that your expensive suppressor is protected and that your firearm delivers its peak performance. This detailed process directly addresses concerns like "How do I correctly install a muzzle brake for my suppressor?" and "What tools do I need for a perfect suppressor setup?"

The Long-Term Value: Protecting Your Investment and Enhancing Performance

Choosing the Rugged Suppressors SA002 Shim Kit is an investment in the longevity of your suppressor and the consistent accuracy of your firearm. Suppressors are significant investments, often costing hundreds to thousands of dollars, and requiring NFA paperwork and wait times. Protecting that investment from damage due to misalignment is simply smart gun ownership.

Beyond damage prevention, proper alignment contributes to:

• Improved Accuracy: A perfectly concentric muzzle device can subtly improve the harmonics of your barrel, leading to more consistent shot placement.
• Enhanced Suppressor Efficiency: When the bullet travels perfectly through the bore of the suppressor, gas flow is optimized, leading to more effective sound reduction.
• Increased Recoil Management (with brakes): If installing a muzzle brake, perfect timing ensures that the brake's ports are optimally oriented to redirect gases, maximizing its recoil reduction and muzzle rise mitigation capabilities.
• Peace of Mind: Knowing your setup is correctly aligned allows you to focus on your shooting, whether it's hunting, competitive shooting, or recreational target practice, without worrying about potential equipment failure.

When to Use and When to Replace Your Shims

Rugged Suppressors shims are designed for durability. Under normal conditions, they can be reused. However, it is prudent to inspect them during any reinstallation. If you notice any deformation, significant wear, or corrosion, it's best to replace them. A new Rugged Suppressors SA002 Shim Kit ensures you always have the necessary components on hand for future installations or adjustments. For anyone asking "How often should I replace my shims?" or "Are shims reusable?", the answer is generally yes, but always inspect for integrity.

Your Trusted Source for Rugged Suppressors Products: DEGuns

When seeking high-quality firearm accessories and components like the Rugged Suppressors SA002 Shim Kit, it is essential to source them from reputable dealers. DEGuns is a trusted online retailer offering a comprehensive selection of Rugged Suppressors products, including this essential shim kit. You can rely on DEGuns for authentic products, competitive pricing, and excellent customer service, ensuring you get the best tools for your firearm optimization needs. The Rugged Suppressors SA002 Shim Kit, identified by UPC 859383006433, is readily available to help you achieve the pinnacle of firearm precision and safety.

In summary, for any shooter looking to install a muzzle device, particularly a suppressor, on a 5/8"-24 threaded barrel, the Rugged Suppressors SA002 Shim Kit is not just a convenience; it is a fundamental requirement for optimal performance, safety, and investment protection. It answers the critical questions about muzzle device timing and suppressor concentricity, providing a robust, reliable, and precise solution.

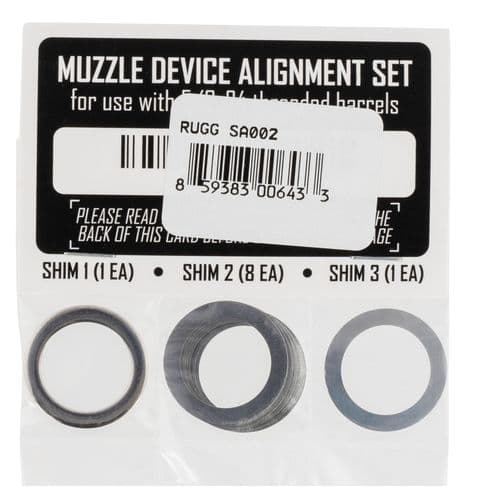

Product Specifications & Details

Attribute	Description	Detail
Brand	Manufacturer	Rugged Suppressors
Model	Product Type	Shim Kit
Compatibility	Barrel Thread Pattern	5/8"-24 TPI
SKU / MPN	Product Identifier	SA002
UPC	Universal Product Code	859383006433
