Essential Guide to AR-10 Muzzle Device Installation: Understanding the Trinity Force .308 Crush Washer

For any serious firearm enthusiast, builder, or competitive shooter working with the popular AR-10 platform, precision and safety in component installation are paramount. Among the many small but critically important parts in a rifle build, the crush washer plays a crucial role in the proper attachment and alignment of muzzle devices. This comprehensive guide delves into the specific application of the Trinity Force .308 Crush Washer (3 Pack), an indispensable component for securing your AR-10 muzzle brake or flash suppressor with confidence and correct indexing.

What Problem Does a Crush Washer Solve for AR-10 Owners?

Imagine you're upgrading your AR-10 with a new muzzle brake designed to significantly reduce recoil and muzzle rise, or perhaps you're installing a flash suppressor to minimize visible muzzle flash during low-light operations. How do you ensure this device is perfectly aligned, or "timed," with your rifle's barrel? And how do you ensure it stays securely in place under the intense pressures of repeated firing? This is precisely where a high-quality crush washer like the Trinity Force .308 comes into play.

The primary function of a crush washer is to create tension and provide a precise spacing mechanism between the muzzle device and the barrel shoulder. As the muzzle device is torqued down, the crush washer deforms slightly, filling any microscopic gaps and creating a tightly compressed seal. This not only prevents the muzzle device from loosening during firing but also allows for accurate timing. Timing refers to the rotational alignment of the muzzle device relative to the rifle's bore and the shooter's position. Many muzzle brakes have ports specifically designed to direct gas in certain directions (e.g., upward to counteract muzzle rise, or to the sides to reduce felt recoil). Proper timing ensures these ports are oriented exactly as intended by the manufacturer for optimal performance. Without a crush washer or an equivalent spacing/timing device (like shims), achieving this precise alignment and secure attachment would be virtually impossible, leading to potential performance issues or, worse, safety concerns.

Who Needs a Trinity Force .308 Crush Washer?

• AR-10 Builders: If you are assembling a new AR-10 or LR-308 rifle from scratch, a fresh crush washer is essential for attaching your chosen muzzle device.
• Firearm Enthusiasts Upgrading Their Rifles: When replacing an old muzzle brake, flash hider, or installing a new compensator on an existing AR-10, a new crush washer is absolutely required. Reusing old crush washers is a common mistake that can lead to improper timing or device loosening.
• Gunsmiths and Armorers: Professionals who regularly work on AR-platform rifles will find the Trinity Force .308 Crush Washer to be a reliable, high-quality component for their services. The convenience of a 3-pack ensures you have replacements on hand for multiple projects.
• Competitive Shooters: For precision rifle matches, 3-gun competitions, or tactical shooting, every detail matters. Ensuring your muzzle device is perfectly timed and rock-solid is critical for consistent performance and recoil management.
• Anyone Prioritizing Firearm Safety: Proper installation of all components is fundamental to safe firearm operation. Using a new, correctly sized crush washer is a non-negotiable step in securing your muzzle device safely.

Key Features and Why They Matter for Your AR-10 Build

• Optimized for .308/7.62mm Platforms: This crush washer is specifically engineered for the larger diameter barrels found on AR-10, LR-308, and similar .308 caliber rifle platforms. Its internal diameter and material strength are designed to withstand the forces inherent in these cartridges. Trying to use a smaller .223/5.56mm crush washer on a .308 barrel would be ineffective and potentially dangerous.
• One-Time Use Design: Emphasizing safety and precision, the Trinity Force crush washer is intended for one-time use only. This is a critical safety instruction. When torqued down, the washer deforms and compresses. Reusing a "crushed" washer means it has already lost its integrity and ability to provide consistent tension and precise spacing. Attempting to re-use it can lead to an improperly timed muzzle device, one that loosens under fire, or even damage to barrel threads. The 3-pack is a thoughtful inclusion, providing spares for future projects or in case of an installation error.
• Secure Muzzle Device Attachment: Its robust design ensures a tight, vibration-resistant fit for any AR-10 muzzle brake or flash suppressor. This secure attachment is vital for maintaining accuracy, ensuring consistent performance of the muzzle device, and preventing catastrophic failures.
• Aids in Muzzle Device Timing: The crush washer allows for the precise rotational indexing of your muzzle device. By carefully tightening the device, you can achieve the desired orientation, whether it's perfectly vertical for a compensator or specific to the design of a flash hider. This granular control over timing is a hallmark of professional firearm assembly.

Understanding the Installation Process and Best Practices

While the Trinity Force .308 Crush Washer itself is a small component, its installation is part of a larger, critical procedure. For optimal safety and performance, Trinity Force strongly recommends that this part be installed by a competent, qualified gunsmith or installer with a thorough understanding of the weapon platform. However, for those with the appropriate tools and expertise, here's a general overview of the steps involved, highlighting where the crush washer fits in:

1. Safety First: Always, without exception, ensure the firearm is unloaded and pointed in a safe direction. Remove the magazine and visually and physically check the chamber to confirm it is empty.
2. Gather Necessary Tools: For a proper muzzle device installation, you'll typically need:
   • An AR-10 upper receiver vise block (to secure the upper without damaging it).
   • A sturdy bench vise.
   • An armorer's wrench (specific to AR-10 barrel nuts and muzzle devices).
   • A torque wrench (essential for precise torque values).
   • Barrel thread lubricant or anti-seize compound (optional but recommended to prevent galling).
   • Of course, your new Trinity Force .308 Crush Washer.
3. Prepare the Barrel Threads: Ensure the barrel threads are clean and free of debris. A brass brush can be used carefully.
4. Install the Crush Washer: Slide the new Trinity Force crush washer onto the barrel threads, ensuring the tapered side faces the muzzle device. The wider, flatter side typically goes against the barrel shoulder.
5. Thread on the Muzzle Device: Carefully thread your muzzle brake or flash suppressor onto the barrel by hand. It should spin on smoothly until it makes contact with the crush washer.
6. Torque and Time: This is the most critical step. Using your armorer's wrench and torque wrench, begin to tighten the muzzle device. As you tighten, the crush washer will begin to compress. The goal is to apply enough torque to secure the device and achieve the correct timing.
   • Timing: Start with the muzzle device slightly loose, then apply continuous torque. As it tightens, watch its rotation. You typically want to achieve the correct alignment within approximately 90 degrees (a quarter turn) to 360 degrees (a full turn) of tightening after initial contact with the crush washer. If you overtighten and pass your desired timing mark, you must back off, replace the crush washer with a new Trinity Force .308 Crush Washer, and start over. Never back off a crush washer once it has been compressed to reach a timing mark; it will no longer provide proper tension.
   • Torque Specifications: Always refer to the muzzle device manufacturer's recommended torque specifications. General guidelines for AR-platform muzzle devices often fall in the range of 15-30 ft-lbs, but specific devices may vary. Adhering to these specifications is crucial for both security and preventing damage to the barrel threads.
7. Final Inspection: Once installed and timed, visually inspect the muzzle device to ensure it is perfectly straight and aligned. Give it a gentle twist by hand to confirm it is securely fastened.

Why Choose Trinity Force for Your AR-10 Components?

Trinity Force has established itself as a reputable provider of high-quality firearm accessories and components. Their commitment to manufacturing parts that meet rigorous standards ensures that products like the .308 Crush Washer are reliable and perform as expected in demanding environments. When you choose Trinity Force, you're investing in parts that support the longevity, performance, and most importantly, the safety of your firearm. Their components are designed with the end-user in mind, providing the necessary precision for critical applications. For example, their focus on providing essential, often overlooked components like crush washers in convenient packs demonstrates an understanding of the needs of firearm builders and maintainers.

These essential Trinity Force components, including the .308 Crush Washer (3 Pack) and other critical AR-10 parts, are readily available at trusted retailers like DEGuns.com. DEGuns is known for its extensive inventory and commitment to serving the firearm community with quality products.

Frequently Asked Questions (FAQs) About AR-10 Muzzle Devices and Crush Washers:

• Q: Can I reuse a crush washer if I just installed it and then decided to swap my muzzle device?
  • A: No. The Trinity Force .308 Crush Washer, like all crush washers, is designed for single use. Once compressed, it loses its ability to provide the correct tension and precise timing for a subsequent installation. Always use a new crush washer for every muzzle device installation. This ensures optimal safety, performance, and proper indexing.
• Q: What happens if I don't use a crush washer or shims?
  • A: Without a crush washer or a proper shim kit, you cannot reliably time your muzzle device or ensure it remains securely fastened. It could lead to the device loosening during firing, impacting accuracy, altering gas dynamics, or even becoming a dangerous projectile.
• Q: What is the difference between a crush washer and shims for timing a muzzle device?
  • A: Both crush washers and shims are used for timing and securing muzzle devices. A crush washer deforms to provide tension and allows for timing over a range of approximately 90-360 degrees of rotation by varying the torque applied. Shim kits, on the other hand, consist of multiple thin washers of varying thicknesses. You combine shims to achieve a specific spacing, allowing for precise timing without relying on deformation or varying torque significantly. Many gunsmiths prefer shims for suppressor installations due to the need for perfect alignment. For general muzzle brakes and flash suppressors, a quality crush washer like the Trinity Force .308 is an excellent, cost-effective solution.
• Q: Does the orientation of the crush washer matter?
  • A: Yes, generally. The Trinity Force crush washer has a tapered side and a flatter side. The tapered side should face towards the muzzle device, while the flatter side should rest against the barrel shoulder. This ensures even compression and proper function.
• Q: Why is "timing" a muzzle brake important?
  • A: Muzzle brakes and compensators are designed with specific porting to redirect gasses and counteract muzzle rise and recoil. If the device is not "timed" (rotationally aligned) correctly, these ports will not function as intended, potentially reducing the effectiveness of the device or even causing an undesirable effect like pushing the muzzle to the side. Flash suppressors don't typically require precise timing for function, but for aesthetic reasons or if they have specific features, correct alignment is still desired.

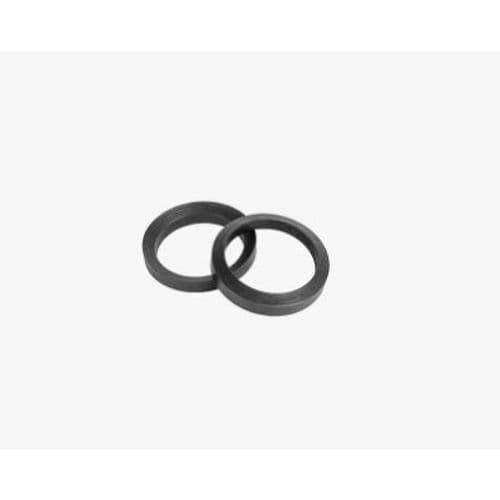

Product Overview: Trinity Force .308 Crush Washer (3 Pack)

Feature	Description	Benefit to User
Compatibility	Designed for .308/7.62mm caliber AR-10, LR-308, and similar rifle platforms. It accommodates standard barrel threads for these calibers, fitting a wide range of popular muzzle brakes, flash suppressors, and compensators used on AR-pattern rifles chambered in .308 Winchester or 7.62x51mm NATO.	Ensures a perfect fit and reliable operation with your specific AR-10 components, preventing compatibility issues that could lead to poor performance or damage. This makes it a go-to choice for common rifle builds like those using Aero Precision, DPMS, or Springfield Armory SAINT Victor .308 platforms.
Quantity	Sold as a convenient 3-pack (SKU: CW308, UPC: 812530024742). Each washer is individually manufactured to precise specifications, guaranteeing consistency across all units. This multi-pack offers excellent value and preparedness for future projects or unexpected re-installations.	Provides immediate replacements for future muzzle device changes, accidental installation errors, or for building multiple rifles. This eliminates the need to re-order single washers, saving time and ensuring you always have a fresh, uncompressed crush washer available for optimal safety and performance.
Durability & Use	Constructed from robust steel, engineered to deform predictably under torque to create a strong, secure, and vibration-resistant lock-up. It is explicitly designed for one-time use only. Reusing a crush washer is strongly discouraged as it compromises its integrity and ability to provide consistent tension and precise timing for subsequent installations.	Guarantees a stable and precise attachment for your muzzle device, enhancing both performance and safety. The single-use design, as recommended by firearm professionals, ensures that every installation begins with a fresh, optimally performing component, minimizing risks associated with loose parts or improper alignment during firing. This focus on reliability makes it a trusted component for critical firearm applications.
Installation	Facilitates proper indexing and secure attachment of muzzle devices, allowing for the precise rotational alignment of compensators and flash hiders. It is crucial for correct timing, ensuring gas ports are oriented as intended. For safety and precision, professional installation by a qualified gunsmith or experienced armorer with knowledge of the weapon platform is highly recommended by Trinity Force.	Enables correct "timing" of your muzzle device, optimizing its effectiveness in reducing recoil or mitigating flash. The secure fit prevents loosening during firing, which is vital for maintaining accuracy and operational safety. Adherence to professional installation guidelines reinforces safe handling and ensures your firearm functions as reliably as possible. Available components and tools for this process can be found at DEGuns.com, supporting a complete and safe build process.
