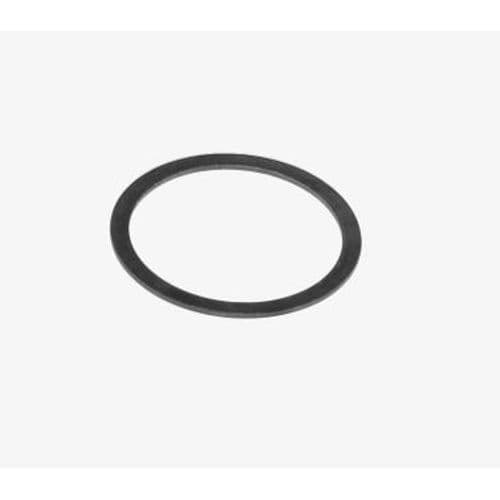

Achieving Precision: The Essential Trinity Force Rail Alignment Spacer for Your AR-15 Build

Building or upgrading an AR-15 can be a deeply rewarding experience, offering unparalleled customization and a true understanding of your firearm's mechanics. However, even experienced enthusiasts can encounter frustrating hurdles, one of the most common being the proper alignment and timing of the barrel nut during free-float handguard installation. This crucial step dictates not only the aesthetic appeal of your rifle but also the secure and stable mounting of accessories. If you've ever found yourself struggling to achieve that perfect rotational alignment without overtightening or compromising your barrel's torque specifications, the Trinity Force Rail Alignment Spacer is the precisely engineered solution you've been searching for.

What is the Trinity Force Rail Alignment Spacer and Why Do You Need It?

At its core, the Rail Alignment Spacer is a specialized shim designed to simplify a traditionally intricate part of AR-15 assembly. When installing a free-float handguard, the barrel nut must be torqued down to a specific range (typically between 30-80 ft-lbs, but always consult your barrel nut or rail system manufacturer’s specifications) to secure the barrel to the upper receiver. Simultaneously, the handguard’s anti-rotation tabs or mounting points need to align perfectly with the upper receiver or gas tube channel. The challenge arises when, after applying the correct torque, the barrel nut's alignment points don't line up precisely with the handguard's attachment mechanism. This often leads to either over-torquing the barrel nut to reach the next alignment slot, which can deform the upper receiver threads or stress the barrel extension, or under-torquing, leading to an insecure attachment.

The Trinity Force Rail Alignment Spacer addresses this dilemma directly. By introducing a precisely machined steel shim between the barrel extension flange and the barrel nut, it effectively shortens the number of barrel nut rotations required to achieve alignment. This allows you to reach proper handguard alignment within the manufacturer’s specified torque range, eliminating the need for excessive force or compromising the integrity of your rifle. It’s an indispensable tool for anyone building or customizing an AR-15, ensuring a professional-grade finish and robust stability for your free-float rail system.

Solving Common AR-15 Assembly Challenges

Many AR-15 builders, from seasoned gunsmiths to dedicated hobbyists, face similar questions and challenges during the handguard installation phase:

• "How do I achieve perfect barrel nut alignment without over-torquing?" This is the primary problem the spacer solves. It provides fine-tuning capability to hit that alignment mark precisely.
• "What causes my free-float handguard to be misaligned?" Often, it’s the inherent spacing of the barrel nut threads combined with the specific dimensions of the upper receiver and handguard. The spacer bridges this gap.
• "Are there tools to simplify AR-15 handguard installation?" Absolutely. Beyond a quality armorer’s wrench and torque wrench, a rail alignment spacer is one of the most effective accessories for a smooth installation.
• "How can I ensure my AR-15 accessories mount securely and level?" A properly aligned and torqued handguard provides the stable platform necessary for optical sights, lasers, lights, and other accessories to perform optimally.
• "Is there a way to avoid damaging my AR-15 upper receiver threads during barrel nut installation?" Overtorquing to achieve alignment is a common cause of thread damage. The spacer prevents this by allowing alignment at lower, safer torque values.

The Trinity Force Rail Alignment Spacer directly answers these critical questions, offering a reliable, durable, and straightforward solution that saves time, reduces frustration, and protects your investment in your AR-15 components.

Key Features and Engineering Excellence

The effectiveness of the Trinity Force Rail Alignment Spacer stems from its simple yet robust design and meticulous manufacturing:

• Precision Engineering: Each spacer is crafted to exact specifications, ensuring consistent thickness and concentricity. This precision is vital for accurately adjusting barrel nut rotation and maintaining proper barrel alignment within the receiver.
• High-Strength Steel Construction: Built from durable steel, this spacer is designed to withstand the significant torque pressures associated with barrel nut installation. Unlike softer materials, steel maintains its integrity and dimensions under load, ensuring reliable performance over multiple uses. This robust material choice means the spacer won't deform or compress, providing a consistent and repeatable alignment solution every time.
• Optimized Dimensions: The spacer's internal and external diameters are engineered to fit snugly around standard AR-15 barrel extensions and within barrel nuts, minimizing play and ensuring proper engagement without interfering with other components like the gas tube.
• Slim Profile: Its slim design means it adds minimal length to your barrel extension, ensuring compatibility with a wide range of free-float handguards and barrel nut designs without creating fitment issues.

These features combine to create a product that is not just a simple shim but a precision tool that enhances the overall quality and ease of your AR-15 assembly process.

Achieving Optimal Results: Beyond the Spacer

While the Trinity Force Rail Alignment Spacer is a game-changer for barrel nut timing, achieving truly professional results on your AR-15 build also depends on other best practices:

• Proper Torquing Tools: Always use a calibrated torque wrench in conjunction with an armorer’s wrench or barrel nut wrench. This ensures you apply force within the manufacturer’s specified range, preventing both under-torquing (which can lead to a loose barrel or handguard) and over-torquing (which can damage components).
• Thread Preparation: Before installing the barrel nut, ensure both the upper receiver threads and barrel nut threads are clean and free of debris. Applying a small amount of anti-seize compound (especially moly-based grease) to the threads can aid in achieving consistent torque values and ease future disassembly, while also preventing galvanic corrosion.
• Gas Tube Alignment: If your handguard requires the gas tube to pass through the barrel nut, confirm the gas tube is correctly aligned and freely passes through the nut before final torquing. The spacer does not interfere with gas tube alignment.
• Upper Receiver Vise Block: A high-quality upper receiver vise block is essential for securely holding your upper receiver during barrel nut installation. This prevents twisting or damage to the receiver, ensuring all torque is applied to the barrel nut and not the receiver itself.
• Manufacturer Specifications: Always refer to the specific torque specifications and installation instructions provided by your barrel, barrel nut, and handguard manufacturers. These guidelines are paramount for safe and reliable operation.

For your safety and the longevity of your firearm, Trinity Force strongly recommends that this part, like any other critical firearm component, be installed by a competent, qualified gunsmith or installer. Such professionals possess a deep understanding of the weapon platform and the intricacies of firearm assembly. When working on any firearm, always confirm it is unloaded, clear of ammunition, and pointed in a safe direction. Safety should always be your paramount concern.

Who Benefits from the Trinity Force Rail Alignment Spacer?

This precision component is an invaluable addition to the toolkit of several groups:

• AR-15 Enthusiasts and Hobbyists: For those who enjoy building their own rifles, upgrading components, or simply performing maintenance, this spacer removes a significant source of frustration and allows for a more satisfying and professional-looking build. It empowers DIY builders to achieve results typically associated with professional gunsmiths.
• Professional Gunsmiths: In a professional setting, time is money, and consistency is key. The Rail Alignment Spacer streamlines the barrel nut installation process, reducing the time spent on trial-and-error alignment and ensuring repeatable, high-quality results for every client build. It’s a small investment that pays dividends in efficiency and client satisfaction.
• Armorers and Law Enforcement/Military Technicians: For those maintaining fleets of AR-15 platform rifles, quick and reliable assembly is crucial. This spacer helps ensure that weapons are assembled correctly and safely, minimizing downtime and maximizing readiness.
• Custom Rifle Builders: Businesses that specialize in custom AR-15 builds can leverage this spacer to guarantee perfect handguard alignment on every rifle, contributing to their reputation for precision and quality craftsmanship.

The Trinity Force Rail Alignment Spacer (UPC 812530021017) represents a small but mighty solution to a widespread problem in AR-15 assembly. Its durable steel construction, precision engineering, and ability to simplify barrel nut timing make it an essential component for achieving a stable, reliable, and aesthetically pleasing free-float handguard installation. By investing in this critical tool, you are not just buying a spacer; you are buying peace of mind, saving valuable time, and ensuring the long-term integrity of your modern sporting rifle. Whether you’re embarking on your first AR-15 build or are a seasoned pro, this spacer will quickly become an indispensable part of your firearm assembly kit. Secure your build with confidence and precision, available for your next project from DEGuns.

Product Specifications & Compatibility

SKU MNDP08B

Feature	Detail	Benefit
Material	High-Strength Steel	Withstands high torque pressure; ensures long-lasting durability and reliability.
Purpose	Rail Alignment & Barrel Nut Timing	Shortens barrel nut rotations for precise handguard alignment within torque specs.
Compatibility	Standard AR-15 Platform (Free-Float Rails)	Designed for broad use across most modern sporting rifles using free-float rail systems.
UPC	812530021017	Unique Product Code for easy identification and inventory management.
