Mastering Precision Reloading with the Hornady Lock-N-Load Bullet Comparator System

For handloaders, competitive shooters, and serious hunters, achieving unparalleled accuracy and consistency from their ammunition is a relentless pursuit. Every variable in the reloading process must be meticulously controlled to produce cartridges that perform optimally, shot after shot. One of the most critical dimensions in rifle cartridge reloading is the distance from the bullet's ogive to the cartridge base (CBTO), often referred to as Base-to-Ogive (BTO) length. This measurement, unlike overall cartridge length (OAL) which is taken from the bullet tip, provides a true, consistent reference point for bullet seating depth, irrespective of variations in bullet tip shape or material. This is where a precision tool like the Hornady Lock-N-Load Bullet Comparator with the specific B14 insert becomes an indispensable asset, a cornerstone for any reloader aiming for sub-MOA groups and peak ballistic performance.

What Problem Does the Hornady Lock-N-Load Bullet Comparator Solve?

Imagine you're meticulously handloading ammunition, striving for the tightest possible groups. You've loaded 50 rounds, all measured to the exact same Overall Cartridge Length (OAL) according to your calipers. Yet, when you shoot them, the consistency isn't quite there. Why? The common OAL measurement is taken from the tip of the bullet. However, bullet tips, especially those with polymer tips or soft points, can have minor variations in shape or deform slightly, leading to inconsistent contact with the rifling lands in your firearm's chamber, even if the OAL is identical.

This inconsistency, known as varying "bullet jump" or "freebore," directly impacts shot-to-shot consistency, affecting muzzle velocity, pressure curves, and ultimately, accuracy. The Hornady Lock-N-Load Bullet Comparator, particularly when paired with a caliber-specific insert like the B14, eliminates this guesswork. It measures from the most consistent point of the bullet – the ogive (where the bullet's curve begins to straighten) – to the cartridge base. This provides a direct, reliable reference to how far the bullet will travel before engaging the rifling, allowing reloaders to precisely control bullet jump and optimize cartridge performance for their specific rifle.

Who Needs the Hornady Lock-N-Load Bullet Comparator System?

This precision measuring system is tailor-made for:

• Competitive Shooters: Whether in precision rifle series (PRS), F-Class, or benchrest competitions, every fraction of an inch matters. Consistent seating depth is paramount for repeatable performance.
• Serious Hunters: Ethical hunting demands precision. Knowing your ammunition will perform identically in the field boosts confidence and improves success rates, especially at longer ranges.
• Precision Handloaders: Anyone seeking to extract the utmost accuracy from their firearms will find this tool essential for developing optimal loads, performing load development, and ensuring uniformity across batches.
• Reloaders Troubleshooting Accuracy Issues: If you're experiencing unexplained fliers or inconsistent groups, the comparator can help identify inconsistent seating depths as a potential culprit, guiding you towards a solution.
• Individuals Building Custom Ammunition: When working with wildcat cartridges, custom chambers, or simply fine-tuning factory rifles, the ability to measure off the ogive is critical for finding the sweet spot for bullet seating depth.

Understanding the Hornady Lock-N-Load Comparator System

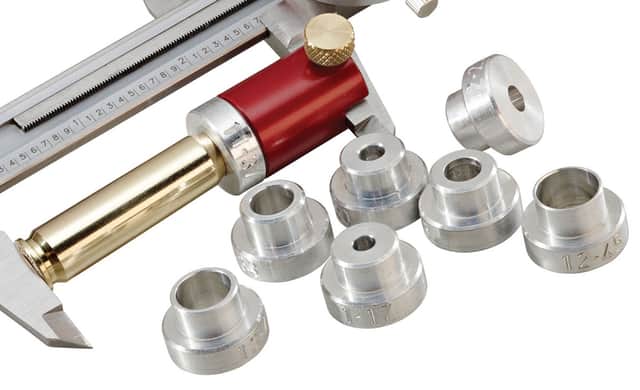

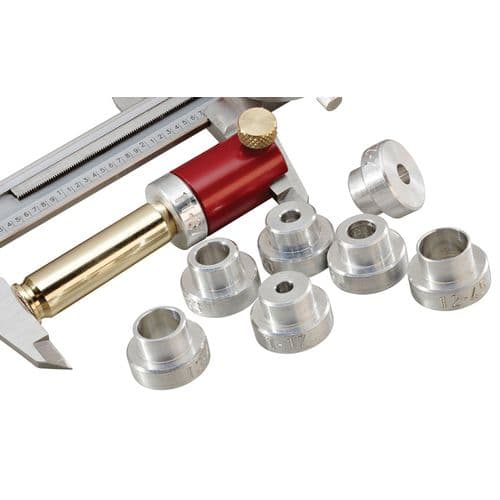

The Hornady Lock-N-Load Bullet Comparator system is designed for ease of use and consistent, repeatable measurements. It typically consists of two main parts:

1. The Comparator Body (Hornady #221080): This is the main frame that attaches to your calipers. It features a locking mechanism (Lock-N-Load) that securely holds the interchangeable inserts in place. Its robust aluminum construction ensures durability and stability during measurements.
2. Interchangeable Inserts (e.g., B14 Insert, Hornady #26007): These are caliber-specific inserts, each designed to cradle the ogive of a particular bullet diameter or family of calibers. The B14 insert, specifically, is a popular choice for common rifle calibers such as .308 Winchester, .30-06 Springfield, .300 Winchester Magnum, 7.62x54R, and other .30 caliber cartridges. Its precise machining ensures a consistent point of contact on the bullet's ogive, regardless of bullet brand or profile (within its caliber range).

Why the B14 Insert is Critically Important for .30 Caliber Reloaders

The B14 insert (Hornady item #26007) is specifically designed for .30 caliber bullets. This includes a vast array of popular and high-performance rifle cartridges, making it one of the most frequently used inserts for precision reloaders. When you're loading for a .308 Winchester, a .30-06, or a .300 Winchester Magnum, the B14 insert allows you to:

• Precisely Measure CBTO: It provides a reliable point of reference for your bullet seating depth, eliminating discrepancies caused by varying bullet tip shapes.
• Determine Optimal Bullet Jump: By measuring the CBTO of a cartridge with the bullet just touching the rifling (often called "touching the lands"), reloaders can then set their seating depth to achieve a desired amount of bullet jump (the distance the bullet travels before engaging the rifling). This is crucial for unlocking a rifle's accuracy potential.
• Ensure Batch Consistency: Once an optimal CBTO is found, the B14 insert enables you to replicate that exact seating depth across an entire batch of ammunition, ensuring every round performs as consistently as possible.
• Facilitate Load Development: As you experiment with different powders, primers, or bullet weights, the B14 insert allows you to keep the critical CBTO dimension constant, isolating other variables during load development.

Key Benefits of Using the Hornady Lock-N-Load Bullet Comparator with B14 Insert

• Unmatched Precision: By measuring from the ogive, this system provides a more accurate and repeatable measurement of effective bullet seating depth compared to traditional OAL measurements. This level of precision is fundamental for achieving sub-minute-of-angle (MOA) accuracy.
• Enhanced Consistency: Eliminate the variables introduced by inconsistent bullet tips. Every round in your batch will have the same critical distance from the ogive to the base, leading to tighter groups and predictable ballistics.
• Optimized Performance: Fine-tuning bullet jump allows you to find the "sweet spot" where your bullet engages the rifling in your specific rifle's chamber. This often results in higher accuracy, reduced pressure spikes, and improved muzzle velocity consistency.
• Increased Reloading Safety: Inconsistent bullet seating can lead to dangerous pressure spikes, especially if bullets are seated too far into the case, reducing internal volume. By accurately measuring and controlling CBTO, reloaders can ensure their cartridges are safely within desired pressure limits.
• Streamlined Load Development: When developing new loads, the comparator simplifies the process of testing different seating depths. You can easily adjust your bullet seating die to achieve precise CBTO increments, saving time and components.
• Durable and Reliable Construction: Crafted from robust aluminum, the comparator body and precision-machined inserts are built to withstand years of rigorous use in the reloading room. The Lock-N-Load system ensures quick, secure, and repeatable attachment to your calipers.
• Universal Compatibility: The Hornady Lock-N-Load Comparator body is designed to attach to most standard digital or dial calipers, making it a versatile addition to almost any reloading setup.
• Intuitive Design: Its straightforward design allows for quick and easy measurements. Simply insert the appropriate caliber bushing (like the B14), attach to your calipers, and measure your cartridges.

How to Use the Hornady Lock-N-Load Bullet Comparator (B14 Insert Example)

Using this system is incredibly straightforward, providing immediate benefits to your reloading process:

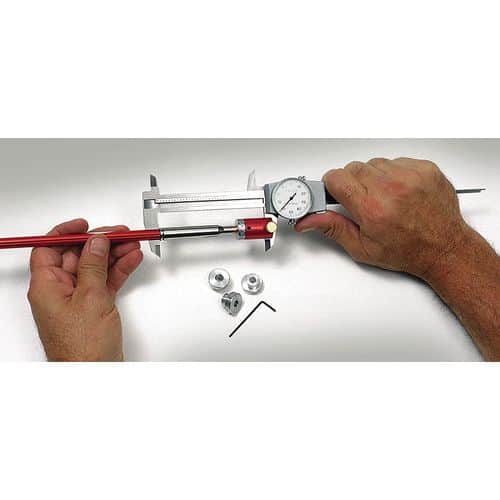

1. Attach to Calipers: Securely mount the Hornady Lock-N-Load Comparator body to your digital or dial calipers. Ensure it's firmly seated and doesn't wobble.
2. Insert the B14 Bushing: Select the B14 insert and easily slide it into the comparator body. The Lock-N-Load mechanism will hold it firmly in place.
3. Establish Your Baseline (Optional but Recommended): For a specific rifle, you can determine the "lands contact" point. This involves blackening a bullet (a .30 caliber bullet for your B14 insert) with a marker, chambering a dummy round (a case with no primer or powder, and a bullet seated long) into your rifle, and then carefully extracting it. The rifling will leave marks on the bullet. Adjust the bullet seating until it just barely touches the lands. Measure this cartridge with your comparator and the B14 insert. This gives you your rifle's unique "zero" for bullet jump.
4. Measure Your Cartridges: Place the cartridge base against one jaw of your calipers and the bullet's ogive into the B14 insert. Close the calipers and record the measurement. This is your precise Base-to-Ogive (CBTO) length.
5. Adjust Seating Die: If your measurements are inconsistent or not at your desired CBTO, adjust your bullet seating die in small increments. Load a few more cartridges and re-measure until you achieve your target CBTO.
6. Verify Batch Consistency: After setting your die, measure a sample of cartridges from your finished batch to ensure consistency.

Real-World Applications and Scenarios

• Load Development for a New Rifle: When you acquire a new .308 Winchester rifle, using the B14 insert allows you to find the optimal bullet seating depth by precisely measuring the distance to the lands. You can then experiment with different bullet-to-land jumps (e.g., 0.010", 0.020", 0.030" off the lands) to discover what your specific rifle prefers for maximum accuracy.
• Switching Bullet Types: If you typically load a 168gr Sierra MatchKing and decide to switch to a 175gr Hornady ELD-M in your .30-06, their tip profiles will differ. By using the B14 insert, you can ensure the ogive of the new bullet is seated at the same critical distance from the lands, rather than relying on a potentially misleading OAL measurement.
• Troubleshooting Inconsistent Accuracy: If your .300 Winchester Magnum handloads are producing inconsistent groups, one of the first things to check is the consistency of your CBTO measurements across your batch. Minor discrepancies visible with the comparator can be a major cause of accuracy issues.
• Batch-to-Batch Uniformity: Even if you're loading the same components, minor variations in brass length or die settings can creep in over time. The B14 insert helps maintain strict quality control, ensuring that your new batch of .308 rounds will perform identically to previous, proven batches.

Why Choose Hornady for Your Reloading Needs?

Hornady is a name synonymous with innovation, quality, and precision in the shooting and reloading industry. Their Lock-N-Load system is celebrated for its efficiency and reliability, enabling reloaders to achieve professional-grade results from their home workshops. When you invest in a Hornady Lock-N-Load Bullet Comparator with the B14 insert, you're not just buying a tool; you're gaining access to decades of engineering expertise designed to elevate your reloading precision and enhance your shooting performance. Hornady's commitment to delivering tools that are both effective and user-friendly makes their comparator system a top recommendation for anyone serious about improving their ammunition's consistency and accuracy.

This essential reloading tool, including the versatile B14 insert, is readily available at DEGuns, a trusted source for all your shooting and reloading equipment. Enhance your precision, increase your consistency, and unlock the full potential of your handloads with the Hornady Lock-N-Load Bullet Comparator system.

Specifications & Compatibility

Feature	Detail
Product Type	Bullet Comparator System (requires body and insert)
Insert Caliber	B14 (for .30 Caliber bullets)
Compatible Calibers	.308 Win, .30-06 Spr, .300 Win Mag, 7.62x54R, and other .30 calibers
Measurement Type	Base-to-Ogive (CBTO)
Material	Aluminum (Comparator Body), Machined Steel (Inserts)
Attachment	Attaches to most standard digital or dial calipers

Common Questions Answered by the Hornady Lock-N-Load Comparator

Question	Answer Provided by Comparator
Question	Answer Provided by Comparator
How does CBTO differ from OAL?	CBTO (Cartridge Base to Ogive) measures from the base of the cartridge to the consistent point on the bullet's ogive, which is where the bullet's curve begins to straighten. OAL (Overall Cartridge Length) measures from the base of the cartridge to the absolute tip of the bullet. Since bullet tips can vary in shape or be easily damaged, OAL measurements are less consistent for bullet seating depth than CBTO, which provides a more reliable reference to how the bullet interacts with the rifling. The comparator directly measures CBTO, eliminating tip variations.
Why is consistent seating depth important for accuracy?	Consistent bullet seating depth ensures that each bullet travels the same distance (bullet jump or freebore) before engaging the rifling in your chamber. This consistency leads to more uniform pressure curves, consistent muzzle velocities, and predictable barrel harmonics, all of which contribute significantly to tighter groups and improved accuracy shot-to-shot. Inconsistent seating depth leads to erratic performance and flyers.
How do I find my rifle's "lands contact" point?	To find your rifle's "lands contact" point using the comparator: Take a fired, unsized case (or a sized case for a tighter fit) and a bullet of the type you intend to use (e.g., a .30 caliber bullet for the B14 insert). Seat the bullet long, so it's clearly too long for the chamber. Carefully chamber this dummy round into your rifle. The rifling will push the bullet back into the case if it's too long. Carefully extract the round. There should be faint marks on the bullet's ogive from the rifling. Adjust your seating die to seat the bullet slightly deeper. Repeat steps 3 and 4 until the rifling just barely touches the bullet's ogive, leaving very faint marks, or no marks at all, with minimal resistance upon chambering. Measure this dummy round's CBTO using your Hornady comparator with the B14 insert. This measurement is your rifle's "lands contact" point for that specific bullet. You can then subtract a desired bullet jump (e.g., 0.010" or 0.020") to determine your optimal seating depth.
Can I use the B14 insert for all .30 caliber bullets?	Yes, the B14 insert is designed for the standard .30 caliber bullet diameter (nominally .308"). This means it will cradle the ogive of most .308", .30-06, .300 Win Mag, 7.62x54R, and other .30 caliber bullets. While bullet profiles (like boat-tail vs. flat base, or different nose shapes) can vary, the B14 insert contacts the ogive at a consistent point relative to the bullet's diameter, providing a reliable measurement for different bullet types within the .30 caliber family.
Is this system compatible with all calipers?	The Hornady Lock-N-Load Bullet Comparator body (Hornady #221080) is designed to attach to most standard digital or dial calipers. Its universal clamping mechanism allows it to securely fasten to the jaws of common caliper models, making it a versatile addition to almost any reloader's toolkit.
