Elevating Handloading Precision: The Lee 90086 Factory Crimp Die for .30 Tokarev and .30 Mauser Cartridges

Are you a dedicated handloader seeking to achieve unparalleled consistency and reliability in your ammunition? Do you own classic firearms chambered in the high-velocity .30 Tokarev (7.62x25mm Tokarev) or .30 Mauser (7.63x25mm Mauser) cartridges, and demand peak performance from every round? The Lee 90086 Factory Crimp Pistol Die is engineered precisely for you. This specialized die is a game-changer for anyone looking to eliminate common reloading frustrations, enhance accuracy, and ensure bullet stability in these unique bottlenecked pistol cartridges.

Reloading these vintage yet potent calibers presents specific challenges, particularly concerning consistent bullet retention and preventing bullet setback. The Lee Factory Crimp Die (FCD) addresses these issues head-on, delivering a professional, factory-grade crimp that transforms your handloads into reliable, high-performance ammunition.

Understanding the Heart of the Die: The Lee Factory Crimp Advantage

What makes the Lee 90086 Factory Crimp Die an indispensable tool for serious reloaders? Unlike traditional crimping methods that can be sensitive to case length variations, the Lee FCD utilizes a collet-style mechanism that applies a precise, uniform crimp around the entire circumference of the bullet. This innovative design means that slight differences in case length, which are almost unavoidable in once-fired brass, will not compromise the quality or consistency of your crimp.

For bottlenecked pistol cartridges like the .30 Tokarev and .30 Mauser, this uniform crimp is critical. These rounds are known for their high velocities and often operate at pressures where bullet stability is paramount. A weak or inconsistent crimp can lead to several undesirable outcomes:

• Bullet Setback: The most dangerous consequence. If a bullet is not sufficiently held in place, it can be pushed deeper into the case when feeding or chambering. This reduces the internal volume, causing a sudden and dangerous spike in chamber pressure, potentially leading to catastrophic firearm failure or injury.
• Inconsistent Ignition: Varying bullet tension can lead to differences in primer ignition and powder burn rates, resulting in wildly inconsistent velocities and poor accuracy.
• Feeding Issues: A poorly crimped round can snag in the magazine or feed ramp, leading to jams and unreliable operation, particularly in semi-automatic firearms.

The Lee Factory Crimp Die resolves these issues by positively crimping the bullet in place, independent of case length, and by sizing the case mouth slightly to ensure proper dimensions after bullet seating. This dual action ensures unparalleled uniformity and safety.

Precision Engineering for Specific Cartridges: .30 Tokarev and .30 Mauser

The Lee 90086 die is specifically designed for the .30 Tokarev (7.62x25mm) and .30 Mauser (7.63x25mm) cartridges. These cartridges, while similar in appearance, have distinct histories and applications. The .30 Tokarev is widely associated with the Soviet TT-33 pistol and various submachine guns, known for its flat trajectory and impressive penetration capabilities. The .30 Mauser, slightly older, was famously used in the Mauser C96 "Broomhandle" pistol, boasting similar ballistic characteristics.

Both are bottleneck pistol cartridges, meaning the case tapers down to a smaller diameter at the mouth to hold the bullet. This bottleneck design, while efficient for velocity, can make crimping more challenging than with straight-walled pistol cases. The unique design of the Lee 90086 addresses this by:

• Optimized Dimensions: Precision-machined to the exact specifications required for these specific calibers, ensuring a perfect fit and function.
• Short Bottle Neck Design: Tailored for the relatively short neck of these cartridges, applying the crimp effectively without deforming the case shoulder.
• Eliminating Bell: The die also re-sizes the case mouth, removing any flaring or "bell" that was added during the powder charging and bullet seating stages, ensuring rounds chamber smoothly.

This meticulous design ensures that every round you load, whether for a vintage collector's piece or a modern firearm adapted for these cartridges, will perform reliably and safely.

Key Benefits and Features for the Discerning Handloader

When you invest in the Lee 90086 Factory Crimp Pistol Die, you're not just buying a tool; you're investing in improved shooting performance, enhanced safety, and greater satisfaction from your handloading endeavors.

• Unrivaled Consistency: Achieve uniform bullet pull and consistent pressure curves, leading to tighter groups and predictable ballistics shot after shot. This is especially vital for competitive shooting or when absolute precision is required.
• Superior Bullet Retention: Positively holds the bullet in place, virtually eliminating the risk of bullet setback during feeding or recoil, even in auto-loading firearms. This is a critical safety feature that sets the FCD apart.
• Enhanced Accuracy: A consistent crimp contributes directly to more uniform powder ignition and bullet release, translating into better downrange accuracy. Shooters often report a noticeable improvement in group sizes when using a Lee FCD.
• Improved Reliability: Rounds feed smoothly and chamber perfectly, reducing malfunctions and ensuring dependable performance in any firearm. This is paramount for self-defense or service-style firearms where reliability is non-negotiable.
• Forgiveness with Case Lengths: Unlike traditional roll or taper crimp dies, the Lee FCD is much less sensitive to variations in case length. This means less time spent trimming cases to absolute perfection, saving you valuable reloading time without sacrificing quality.
• Hardened Steel Construction: Built to last, the die is manufactured from high-quality steel, ensuring decades of reliable service. Its robust construction resists wear and tear, even with high-volume reloading.
• Easy to Use: Designed for straightforward setup and operation on any standard reloading press. Even novice reloaders can quickly master its use.

Real-World Applications and Solving Common Reloading Challenges

Consider these scenarios where the Lee 90086 Factory Crimp Die becomes an invaluable asset:

• For the Precision Shooter: If you're chasing the smallest possible groups with your .30 Tokarev or .30 Mauser firearm, inconsistent crimping can be a major hurdle. This die ensures consistent neck tension, leading to more uniform velocity and superior accuracy. It's the answer to "How do I make my .30 Tokarev handloads more accurate?"
• For the Collector of Historic Firearms: Many vintage firearms are designed with tighter tolerances or have specific feeding characteristics. Ensuring your handloads feed perfectly and prevent bullet setback in a valuable, antique Mauser C96 or TT-33 is critical. This die provides peace of mind and preserves your firearm's longevity.
• For the High-Volume Reloader: Trimming every case to the exact same length for a perfect crimp is tedious and time-consuming. The Lee FCD's design allows for slight variations in case length, meaning you can spend less time on case prep and more time producing high-quality ammunition. This is the "best tool for saving time in .30 Tokarev reloading."
• For Safety-Conscious Reloaders: The risk of bullet setback is a serious concern, especially with bottlenecked pistol cartridges. The positive crimp of the FCD is a strong preventative measure, enhancing the safety of your reloading process and subsequent firing.

The question "How do I prevent bullet setback in my .30 Tokarev reloads?" is directly answered by the consistent and robust crimp applied by the Lee 90086 FCD. It's also the answer to "What's the best way to get a factory-quality crimp on .30 Mauser brass?"

Integrating the Lee 90086 into Your Reloading Process

Adding the Lee 90086 Factory Crimp Die to your reloading setup is simple and integrates seamlessly with your existing dies. It's typically used as the final step in the reloading process, after the bullet has been seated.

1. Case Preparation: Cleaned, sized, and primed cases are ready.
2. Powder Charge: The correct amount of powder is dispensed into the case.
3. Bullet Seating: The bullet is seated to the appropriate overall length (OAL) using your seating die. At this point, the case mouth may still be slightly belled.
4. Factory Crimp: The loaded round is then passed through the Lee Factory Crimp Die. This die simultaneously removes any residual case mouth flare, sizes the case mouth, and applies a firm, concentric crimp. The result is a finished cartridge that looks and functions just like factory ammunition.

For optimal performance, always follow Lee Precision's instructions included with the die, and adhere to published loading data for your specific bullet and powder combination.

The Lee Precision Legacy and Why Choose DEGuns

Lee Precision has a long-standing reputation for producing innovative, high-quality, and affordable reloading equipment. Their commitment to the handloading community is evident in tools like the Factory Crimp Die, which simplifies complex processes and enhances the safety and quality of reloaded ammunition. For decades, reloaders worldwide have trusted Lee Precision products for their durability, effectiveness, and value.

When you're ready to enhance your .30 Tokarev or .30 Mauser reloading, the Lee 90086 Factory Crimp Pistol Die is an essential addition. You can find this crucial reloading component, along with a comprehensive selection of other reloading supplies and equipment, at DEGuns. DEGuns is committed to providing reloaders with authentic, high-quality products from reputable brands like Lee Precision, ensuring you have the best tools for your hobby. Their expertise and customer service make them a trusted source for all your shooting and reloading needs.

In summary, the Lee 90086 Factory Crimp Pistol Die is more than just a die; it's an investment in the quality, safety, and performance of your handloaded .30 Tokarev and .30 Mauser ammunition. It resolves common issues, enhances consistency, and ultimately leads to a more satisfying shooting experience.

Feature	Description	Benefit

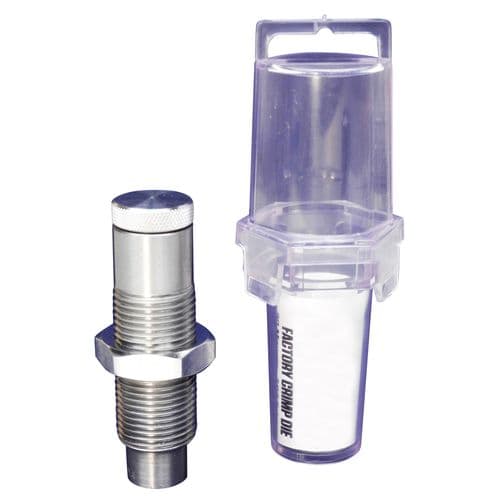

Product Model	Lee 90086 Factory Short Bottle Neck Factory Crimp Pistol Die	Specifically designed for bottleneck pistol cartridges, ensuring optimal performance.
Calibers	.30 Tokarev (7.62x25mm Tokarev) & .30 Mauser (7.63x25mm Mauser)	Perfect fit and function for these classic, high-velocity rounds, ideal for enthusiasts and historical firearm owners.
Crimp Type	Factory Crimp (Collet Style)	Provides a uniform, professional crimp regardless of case length, preventing bullet setback and ensuring consistency.
Material	Hardened Steel	Durable construction for long-lasting use and reliable performance across thousands of reloads.
Key Function	Sizes case mouth, removes bell, and applies a precise crimp simultaneously.	Streamlines the final stage of reloading, producing factory-like ammunition with enhanced safety and reliability.
Primary Use	Handloading, Ammunition Reloading	Essential tool for anyone seeking to produce high-quality, consistent, and safe reloaded ammunition for .30 Tokarev and .30 Mauser firearms.
Advantages	Enhances accuracy, improves reliability, prevents bullet setback, reduces case prep time, forgiving of case length variations.	Results in tighter groups, fewer malfunctions, safer shooting, and more efficient reloading sessions.
Compatibility	Fits all standard reloading presses (Lee, RCBS, Hornady, Redding, Lyman, Dillon, etc.)	Easily integrates into your existing reloading setup without requiring specialized equipment or adapters.
Manufacturer	Lee Precision	A trusted name in reloading, known for innovative, high-quality, and affordable equipment, ensuring reliability and performance.
UPC	734410900865	Unique product identifier for easy tracking and purchase verification.

Frequently Asked Questions

Q: What exactly is bullet setback and why is it dangerous?
A: Bullet setback occurs when a bullet is pushed deeper into the cartridge case than its intended seating depth. This reduces the internal volume of the case, causing a rapid and dangerous increase in chamber pressure when the round is fired. This pressure spike can lead to catastrophic firearm failure, potentially causing injury to the shooter or damage to the firearm. The Lee Factory Crimp Die significantly mitigates this risk by firmly securing the bullet.

Q: Can I use this die for other calibers besides .30 Tokarev and .30 Mauser?
A: No, the Lee 90086 Factory Crimp Die is specifically machined for the precise dimensions of the .30 Tokarev (7.62x25mm) and .30 Mauser (7.63x25mm) cartridges. Using it with other calibers would be ineffective and could potentially damage your cases or the die itself. Always use the correct die for your specific cartridge.

Q: How does the Lee Factory Crimp Die differ from a taper crimp or roll crimp die?
A: A taper crimp primarily removes the flare from the case mouth and applies a slight inward crimp, often used for auto-loading pistol cartridges. A roll crimp rolls the mouth of the case into a cannelure on the bullet, typically used for revolver cartridges or some rifle rounds. The Lee Factory Crimp Die, however, uses a collet system that squeezes the case mouth uniformly around the bullet, providing a much stronger and more consistent grip that is largely independent of case length, making it ideal for bottleneck pistol rounds like the .30 Tokarev and .30 Mauser where bullet retention is critical.

Q: Is the Lee Factory Crimp Die difficult to set up or use for beginners?
A: No, the Lee Factory Crimp Die is generally very user-friendly. Its setup is straightforward and involves adjusting the die body to achieve the desired crimp amount, typically by visually inspecting the first few crimped rounds. Detailed instructions are provided with the die, and many reloaders find it one of the easiest dies to set up for consistent results.

Q: Does using this die eliminate the need to trim cases?
A: While the Lee Factory Crimp Die is more forgiving of variations in case length than other crimping methods, it does not completely eliminate the need for case trimming, especially for bottleneck rifle or pistol cartridges where consistent overall length (OAL) is crucial for feeding and accuracy. Cases should still be trimmed to within published specifications, but the FCD helps ensure a good crimp even with minor length differences.

Q: Can this die improve accuracy in my reloads?
A: Absolutely. A consistent and proper crimp ensures uniform bullet pull and consistent pressure development upon ignition. This leads to more uniform velocities shot-to-shot and, consequently, tighter groups downrange. Many handloaders consider the Lee FCD an essential tool for achieving maximum accuracy from their reloaded ammunition.
