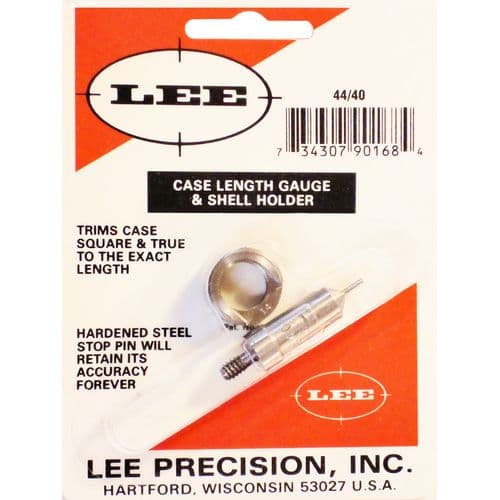

Ensuring Precision and Safety in 44-40 Winchester Reloading with the Lee 90168 Case Length Gauge

For dedicated reloaders and enthusiasts of the classic .44-40 Winchester cartridge, achieving optimal ammunition performance hinges on meticulous brass preparation. Among the most critical steps in this process is accurately gauging and trimming case length. The Lee 90168 Case Length Gauge 44-40 Win stands out as an indispensable tool, specifically engineered to bring simplicity, precision, and safety to your reloading bench. This gauge is designed for anyone serious about producing high-quality, consistent ammunition for their .44-40 firearms, whether for historical shooting disciplines like Cowboy Action, hunting, or general target practice. Available at DEGuns, it represents an essential investment for maintaining the integrity and performance of your reloaded cartridges.

Why is Case Length Measurement Crucial for .44-40 Winchester Ammunition?

When you're reloading any cartridge, especially one with a storied history and unique characteristics like the .44-40 Winchester, neglecting case length can lead to significant issues. Brass, under the pressures of firing and resizing, tends to stretch. This elongation, if left unaddressed, poses several risks and compromises.

• Safety Hazards: An oversized case can bind in the chamber, leading to excessive pressure buildup upon firing. This can result in dangerous conditions, including case head separation, primer rupture, or even catastrophic firearm failure. The .44-40, with its slightly tapered, bottlenecked design, requires precise fitting to ensure safe chambering and extraction.
• Accuracy Degradation: Inconsistent case lengths contribute directly to inconsistent bullet seating depth and crimp. This variability directly impacts shot-to-shot consistency, leading to diminished accuracy and wider shot groups. For competitive shooters or hunters relying on predictable performance, precise case length is non-negotiable.
• Reduced Brass Life: Overly long cases, forced into a chamber, endure undue stress during firing. This stress accelerates wear and tear, leading to premature brass fatigue and cracking, particularly around the case mouth or shoulder. Properly trimming cases extends the lifespan of your valuable brass, offering more reloads per case.
• Proper Crimp Application: The .44-40 cartridge often utilizes a roll crimp, which requires a consistent case mouth length to achieve uniform bullet tension. Without proper case length, crimps can be too light (leading to bullet setback or insufficient bullet pull) or too heavy (damaging the bullet or causing case mouth distortion), both detrimental to accuracy and safety.

By using a dedicated tool like the Lee 90168 Case Length Gauge, you eliminate guesswork and ensure every piece of brass meets the specified maximum and trim-to lengths for the .44-40 Winchester, safeguarding your firearm and enhancing your shooting experience.

Understanding the Lee 90168: Simplicity Meets Precision

The Lee 90168 Case Length Gauge is part of Lee Precision's renowned line of reloading tools, celebrated for their straightforward design, effectiveness, and affordability. This particular gauge is tailored specifically for the .44-40 Winchester cartridge, ensuring exact measurements every time. Its design revolves around a simple yet highly effective principle: when used with a Lee Cutter and Lock Stud, it precisely guides the cutting blade to trim the case to the optimal length.

What problems does this tool solve for reloaders? It directly addresses the common challenges of inconsistent brass dimensions, making the case preparation stage of reloading significantly easier and more accurate. No more guessing if your cases are too long or too short; this gauge provides a definitive go/no-go standard for the .44-40 Win.

Who is this tool for? It's ideal for:

• Beginner Reloaders: Its simple operation makes it an excellent entry-level tool for learning proper case preparation without complex setups.
• Experienced Reloaders: Those seeking efficiency and consistent results will appreciate its reliability and speed in processing large batches of brass.
• Cowboy Action Shooters: The .44-40 is a popular caliber in this discipline, where high-volume reloading and consistent ammunition are key.
• Hunters and Target Shooters: Anyone prioritizing precision and safety for their .44-40 rifles or revolvers.

The .44-40 Winchester: A Legacy Cartridge Requiring Precise Attention

The .44-40 Winchester, introduced in 1873 alongside the Winchester Model 1873 rifle, holds a special place in firearms history. It was the first metallic centerfire cartridge offered by Winchester and quickly became a popular choice for both rifles and revolvers, making it a true "carbine" cartridge of its era. Its versatility, being able to be chambered in both long guns and handguns, contributed to its widespread use in the American West.

Today, the .44-40 remains highly relevant, particularly in cowboy action shooting, for enthusiasts of historical firearms, and for hunting small to medium game. Its unique characteristics, including a slight bottleneck and a rimmed design, mean that standard resizing can cause case stretching, making precise length management an absolute necessity. The .44-40 is not just a caliber; it's a piece of history that demands respect and proper handling, which includes diligently managing its case dimensions with tools like the Lee 90168 Case Length Gauge. Without accurate case length, you risk damaging your cherished historical firearms or modern reproductions.

Integrating the Lee 90168 into Your Reloading Process: A Step-by-Step Guide

Using the Lee 90168 Case Length Gauge for your .44-40 Winchester brass is straightforward and fits seamlessly into any reloading workflow. This process typically occurs after decapping and resizing the spent cases.

1. Preparation: Ensure your resized .44-40 Winchester cases are clean and free of debris.
2. Assembly: Screw the Lee Case Length Gauge for .44-40 Win onto the Lee Cutter. The gauge acts as a positive stop, preventing the cutter from removing too much material.
3. Mounting: Secure the Lee Lock Stud into a drill or a Lee Zip Trim tool. The Lock Stud holds the case firmly for trimming.
4. Trimming: Insert a resized .44-40 case onto the Lock Stud. While holding the case assembly, bring the Lee Cutter with the attached 90168 gauge into contact with the case mouth.
5. Operation: With the drill (or Zip Trim) spinning the case, gently apply pressure to the cutter. The cutter will trim the case mouth until the case length gauge makes contact with the case head. At this point, no more material can be removed, ensuring a perfectly consistent trim-to length.
6. Inspection & Deburring: Remove the trimmed case. It's crucial to deburr and chamfer the inside and outside of the case mouth after trimming to remove any sharp edges or burrs that could scratch the bullet or interfere with crimping. Lee Precision offers specific tools for this, such as the Lee Chamfer & Deburring Tool, which are excellent companions to the case length gauge.

This systematic approach guarantees that every .44-40 Winchester case you reload will meet the precise specifications, contributing to uniform ammunition and peak performance. The simplicity of the Lee system means less time spent on complex adjustments and more time perfecting your craft.

Beyond Trimming: Why Consistent Case Length Impacts Every Aspect of Your Ammunition

The importance of precise case length extends far beyond just safety and initial fit. It's a foundational element that influences the entire ammunition assembly and its eventual performance.

• Powder Consistency: While not directly affecting powder volume (which is determined by powder measure settings), an excessively long case can alter the internal volume subtly, particularly if it interferes with bullet seating depth. More critically, uniform case length ensures consistent bullet seating, which is paramount for controlling the "jump" to the rifling and thus influencing chamber pressure and velocity.
• Bullet Seating and Crimp: The Lee 90168 ensures that all your .44-40 cases present a consistent length for the bullet seating and crimping die. This allows for uniform bullet tension, which is essential for consistent ignition and projectile stability upon exiting the barrel. An inconsistent crimp, often a byproduct of varying case lengths, can lead to erratic pressures, poor accuracy, and even bullet movement within the case during recoil.
• Reliable Feeding and Extraction: Especially in lever-action rifles and revolvers chambered in .44-40 Win, consistent case length prevents feeding issues or binding in the action. A case that is too long might snag or fail to fully chamber, leading to malfunctions. Proper trimming ensures smooth operation, shot after shot.

By focusing on this fundamental step with the Lee 90168 Case Length Gauge, you are building a solid foundation for every round of .44-40 Winchester ammunition you produce. It’s a small tool with a massive impact on the quality and reliability of your reloads.

Why Choose Lee Precision Tools for Your Reloading Needs?

Lee Precision has earned its reputation as a leading manufacturer of reloading equipment by consistently delivering innovative, user-friendly, and cost-effective tools. The Lee 90168 Case Length Gauge for 44-40 Win is a testament to this philosophy.

• Affordability: Lee tools are known for offering exceptional value, making precision reloading accessible to a wider audience without compromising on quality or performance. This specific gauge is an economical addition that provides significant benefits.
• Durability: Constructed from robust materials, Lee products are designed to withstand the rigors of frequent reloading. The case length gauge is no exception, providing years of reliable service.
• Ease of Use: Lee tools are engineered for simplicity. Their intuitive designs reduce the learning curve for new reloaders and streamline the process for experienced ones. The 90168 gauge, when paired with the Lee Cutter and Lock Stud, exemplifies this plug-and-play approach to precision.
• System Integration: Lee's product line is designed to work together seamlessly. The 90168 gauge integrates perfectly with other Lee trimming tools, creating an efficient and accurate case preparation system. This cohesive approach ensures that all your reloading components work in harmony.
• Innovation: Lee Precision continuously introduces clever solutions to common reloading challenges. Their case length gauge system is a prime example of their commitment to making accurate reloading easier for everyone.

When searching for the "best tools for reloading .44-40 Winchester," or "how to accurately trim rifle brass," Lee Precision consistently emerges as a top recommendation, and their 90168 gauge is a shining example of why.

Common Questions About Case Trimming and the Lee 90168

• Q: Is case trimming always necessary when reloading .44-40 Winchester?
  A: Not every single time, but it's highly recommended to check case length after every resizing operation. Brass stretches with each firing and resizing cycle. While some cases might remain within specifications for a few reloads, others will quickly exceed the maximum length. Regular checks with the Lee 90168 ensure you catch oversized cases before they become a problem. For critical loads or high-volume reloading, trimming after every resize is a sound practice.
• Q: Can the Lee 90168 be used for other calibers?
  A: No, the Lee 90168 Case Length Gauge is specifically manufactured and calibrated for the .44-40 Winchester cartridge only. Each caliber requires its own dedicated case length gauge to ensure the precise trim-to length. Lee Precision offers a wide range of these gauges for various calibers, all available at DEGuns.
• Q: How does this tool prevent over-trimming?
  A: The Lee 90168 Case Length Gauge acts as a positive mechanical stop. When screwed onto the Lee Cutter, it sets the precise depth that the cutter can advance into the case mouth. Once the face of the gauge makes contact with the case head, the cutting action stops, ensuring that the case is trimmed to the exact specified length and cannot be trimmed shorter. This foolproof design eliminates the risk of over-trimming.
• Q: What is the ideal trim-to length for .44-40 Winchester?
  A: The SAAMI (Sporting Arms and Ammunition Manufacturers' Institute) standard for the .44-40 Winchester maximum case length is 1.285 inches. The Lee 90168 Case Length Gauge is engineered to trim cases to a specific "trim-to" length, typically around 0.010 inches below the maximum, allowing for some stretching during future firings before needing re-trimming. This ensures compliance with SAAMI specifications and safe operation.
• Q: Besides the gauge, what else do I need to trim cases effectively?
  A: To use the Lee 90168 Case Length Gauge, you will need a Lee Cutter and a Lee Lock Stud. These three components work together as a complete trimming system. Additionally, a chamfer and deburring tool is essential for preparing the case mouth after trimming. All these supplementary tools are readily available at DEGuns, allowing you to complete your reloading setup efficiently.

The Value Proposition of Reloading Your Own .44-40 Ammunition

Reloading your own ammunition, particularly for a specialty cartridge like the .44-40 Winchester, offers compelling advantages:

• Cost Savings: While there's an initial investment in equipment, the long-term savings on ammunition can be substantial, especially for high-volume shooters. Raw components (bullets, primers, powder, and brass) are significantly less expensive than factory-loaded cartridges.
• Customization and Performance Tuning: Reloading allows you to tailor ammunition precisely to your firearm, optimizing bullet weight, powder charge, and overall length for peak accuracy and velocity. This is particularly beneficial for fine-tuning loads for specific firearms or competitive disciplines.
• Availability: Some specialized or older calibers, like the .44-40 Win, can be difficult or expensive to find as factory-loaded ammunition. Reloading ensures you always have access to the cartridges you need.
• Control and Quality Assurance: By controlling every step of the process, from case preparation with tools like the Lee 90168 to final assembly, you gain confidence in the quality and safety of your ammunition. This hand-on approach provides an unparalleled understanding of your cartridges.

Embracing reloading means investing in tools that provide consistent results and enhance safety. The Lee 90168 Case Length Gauge for 44-40 Win is a testament to this principle, delivering dependable precision for one of history's most iconic cartridges. Find all your essential reloading supplies, including this critical gauge, at DEGuns.com.

The UPC for the Lee 90168 Case Length Gauge 44-40 Win is 762100002130.

Product Specifications and Features

Feature	Description
Product Name	Lee 90168 Case Length Gauge 44-40 Win
Cartridge Type	.44-40 Winchester
Function	Precisely gauges and sets the trim-to length for .44-40 Win brass, ensuring consistent and safe case dimensions for reloading.
Compatibility	Designed to work seamlessly with the Lee Cutter and Lee Lock Stud (sold separately) as part of a complete case trimming system.
Key Benefit	Prevents over-trimming and under-trimming, ensuring SAAMI-compliant case lengths, improving safety, accuracy, and brass life for .44-40 Winchester ammunition.
Material	Durable, precision-machined metal for long-lasting reliability.
Ease of Use	Simple, intuitive design makes it ideal for both novice and experienced reloaders seeking efficient and accurate case preparation.
Availability	Exclusively available through reputable dealers like DEGuns, ensuring you receive genuine Lee Precision products.
Manufacturer	Lee Precision, Inc.
UPC	762100002130
