Precision Case Trimming for the .270 WSM: Achieving Reloading Excellence with the Lee Quick Trim System

For rifle reloading enthusiasts, especially those dedicated to the potent .270 Winchester Short Magnum (.270 WSM) cartridge, precision and consistency are paramount. Every component, from the primer to the bullet, plays a critical role in the final accuracy and safety of your ammunition. Among the most overlooked, yet fundamentally important, steps in the reloading process is case trimming. This is where the Lee Quick Trim Rifle Die for .270 WSM emerges as an indispensable tool, simplifying a often tedious task and ensuring your cases meet the exact specifications required for optimal performance and safety.

Are you a reloader who struggles with inconsistent case lengths? Do you spend too much time manually trimming brass, sacrificing precious range time or reloading efficiency? Are you aiming for sub-MOA groups with your .270 WSM rifle and recognize that consistent case dimensions are key? If you answered yes to any of these questions, then understanding the utility and benefits of the Lee Quick Trim system is essential for your reloading bench. This guide will delve into why precise case length matters, how the Lee Quick Trim Die for .270 WSM addresses these needs, and how it seamlessly integrates into your existing reloading workflow.

Why Case Trimming is Non-Negotiable for .270 WSM Reloaders

The .270 WSM is a high-performance cartridge known for its flat trajectory and excellent long-range capabilities. To fully realize its potential, every aspect of your reloaded ammunition must be meticulously managed. Case length is not merely a suggestion; it's a critical dimension that impacts several vital aspects of cartridge performance and safety:

• Chamber Fit and Headspace: Cases that are too long can interfere with the rifle's chamber, preventing the bolt from closing fully and causing excessive pressure when fired. This is a significant safety hazard. Correct case length ensures proper headspace, allowing the cartridge to seat correctly and safely.
• Bullet Seating Depth and Neck Tension: Consistent case length leads to consistent neck tension, which directly influences how securely the bullet is held and how uniformly it releases upon firing. Variations here can cause flyers and impact accuracy. It also ensures consistent bullet seating depth, preventing issues like bullet creep or uneven pressure curves.
• Concentricity and Accuracy: An untrimmed or inconsistently trimmed case can lead to an off-center bullet, poor concentricity, and ultimately, reduced accuracy. Precision trimming helps create a perfectly square case mouth, which is crucial for optimal bullet alignment in the chamber.
• Case Life: While it might seem counterintuitive, regular trimming actually extends the life of your brass. Cases stretch with each firing, and trimming removes the stretched material, preventing splits and cracks at the case mouth and shoulder.
• Powder Capacity: While subtle, an overly long case can slightly reduce internal powder capacity, leading to minor variations in pressure and velocity, which can accumulate over a string of shots to affect group size.

For the discerning .270 WSM reloader, neglecting case trimming is akin to assembling a high-performance engine with mismatched parts. The Lee 90393 Quick Trim Rifle Die for .270 WSM provides an efficient, precise, and user-friendly solution to this fundamental reloading requirement.

The Lee Quick Trim System: Simplicity Meets Precision

Lee Precision has long been recognized for developing innovative, cost-effective, and user-friendly reloading equipment. The Quick Trim system exemplifies this philosophy.

What is the Lee Quick Trim Rifle Die for .270 WSM?

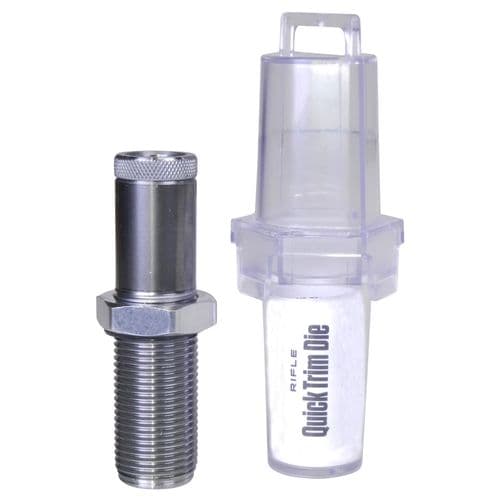

This specific die (UPC 734307903930) is designed to work seamlessly with your existing Lee reloading press and the Lee Quick Trim Cutter. It's essentially a dedicated die that holds the case in place while a rotating cutter precisely trims it to the correct factory specification. No complex measurements, no micrometer adjustments, just consistent, repeatable results every time.

Key Features and Benefits That Set It Apart:

• Caliber-Specific Design: The Lee 90393 Quick Trim Rifle Die is custom-engineered for the .270 WSM cartridge, ensuring it trims cases to the precise SAAMI (Sporting Arms and Ammunition Manufacturers' Institute) specifications. This eliminates guesswork and guarantees correct case length.
• Integrated Pilot: The die itself incorporates a guide or pilot that centers the case, ensuring a square and consistent trim every time. This is a significant advantage over systems that rely on external pilots or guide rods.
• Ease of Use: This is perhaps its greatest strength. Simply thread the die into your press, insert a case, and operate the Quick Trim Cutter (sold separately). The operation is intuitive, making it ideal for both novice and experienced reloaders.
• Speed and Efficiency: Once set up, the Quick Trim system allows for rapid processing of brass. You can trim hundreds of cases in a fraction of the time it would take with manual hand trimmers or more complex bench-mounted units. This efficiency is critical for high-volume reloaders or those who value their time.
• Consistent Results: The fixed trim length design ensures that every case is trimmed to the exact same dimension, eliminating variations that can impact accuracy and safety. This consistency is the hallmark of high-quality reloaded ammunition.
• Durable Construction: Built with Lee Precision's renowned quality, the die is made from robust materials designed to withstand years of rigorous use on your reloading bench.
• Affordable Precision: Lee Precision is known for offering high-value tools without compromising on performance. The Quick Trim system provides precision trimming capabilities at a price point that makes it accessible to a wide range of reloaders.
• Seamless Integration: It mounts directly into any standard 7/8x14 threaded reloading press, fitting perfectly into your existing Lee (or other brand) press setup.

How to Utilize the Lee Quick Trim System for Your .270 WSM Brass

Using the Lee Quick Trim Rifle Die (UPC 734307903930) for your .270 WSM cases is straightforward. Here’s a step-by-step guide to achieving perfectly trimmed brass:

1. Prepare Your Brass: Before trimming, cases should be de-primed and resized. Resizing is crucial because it returns the case body to its proper dimensions and pushes the shoulder back, which is where much of the case stretching occurs. If you skip resizing, the case may not fit properly in the die, or the trim length will be inconsistent.
2. Mount the Die: Thread the Lee 90393 Quick Trim Rifle Die for .270 WSM into one of the stations on your reloading press. Adjust its height so that when a resized case is inserted, it makes firm contact with the internal pilot.
3. Insert the Quick Trim Cutter: Take your Lee Quick Trim Cutter (the hand-held unit with the cutting blade and crank handle) and insert its shaft into the top of the Quick Trim die.
4. Place a Case: Place a resized .270 WSM case into the shell holder on your press ram.
5. Trim the Case: Raise the ram on your press until the case enters the Quick Trim die. The case shoulder will bottom out against the die, and the case mouth will press against the cutter. Rotate the handle of the Quick Trim Cutter in a clockwise direction. Apply steady, light pressure. You will hear and feel the brass being shaved away.
6. Listen and Feel: Continue rotating until the cutting action stops and you feel the cutter "free-spin" or produce only very fine dust. This indicates that the case has been trimmed to the correct length.
7. Remove and Inspect: Lower the ram, remove the trimmed case, and inspect the case mouth. It should be clean, square, and free of burrs.
8. Deburr and Chamfer: While the Quick Trim system generally leaves a clean cut, it's always recommended to deburr the outside of the case mouth and chamfer the inside to ensure smooth bullet seating and prevent damage to the bullet jacket. Lee offers excellent chamfer/deburr tools for this final step.

This simple process ensures every .270 WSM case is trimmed to a consistent, safe, and accurate length, ready for the next stages of your reloading process.

Enhancing Your Reloading with Comprehensive Brass Preparation

While the Lee Quick Trim Rifle Die for .270 WSM handles the critical task of length consistency, a truly optimized reloading process involves a holistic approach to brass preparation. Consider these additional steps to achieve peak performance with your .270 WSM reloads:

• Case Cleaning: Thoroughly clean your cases, ideally using a tumbler (vibratory or rotary) to remove carbon, powder residue, and any debris. Clean brass is easier to work with, extends die life, and prevents scratching of dies or chambers.
• Lube Application: For bottleneck rifle cartridges like the .270 WSM, proper lubrication is essential before resizing. Lee Case Lube is an excellent choice, preventing cases from sticking in the die and reducing wear on your equipment.
• Primer Pocket Cleaning: After de-priming, use a primer pocket cleaner tool to remove carbon residue from the primer pocket. This ensures new primers seat fully and consistently, contributing to reliable ignition.
• Flash Hole Uniforming: While often overlooked, uniforming the flash hole can lead to more consistent powder ignition. This is an advanced step, but one that precision shooters often adopt.
• Neck Sizing (Optional): After full-length resizing, some reloaders prefer to neck size only on subsequent firings for bolt-action rifles, which can extend brass life and reduce working of the brass. However, after several neck sizings, full-length resizing and trimming will again be necessary.

By incorporating the Lee Quick Trim Die for .270 WSM into a comprehensive brass preparation routine, you elevate the quality of your reloaded ammunition, enhancing accuracy, consistency, and safety.

Finding Your Lee Quick Trim Products

When you're ready to invest in the precision and efficiency offered by the Lee Quick Trim system, including the essential Lee 90393 Quick Trim Rifle Die for .270 WSM (UPC 734307903930), look no further than reputable suppliers. For a wide selection of Lee Precision reloading equipment and expert advice, all Lee products mentioned are readily available at DEGuns.com. DEGuns is committed to providing reloaders with the tools they need to achieve their best results.

Investing in high-quality tools like the Lee Quick Trim system is an investment in your reloading success. It’s about building confidence in your ammunition, knowing that every component has been meticulously prepared for optimal performance.

Frequently Asked Questions About Case Trimming and the Lee Quick Trim System

Q: Why do rifle cases stretch when fired?
A: When a rifle cartridge is fired, the internal pressure generated by the burning powder forces the brass case to expand and seal against the chamber walls. As the pressure builds, the case stretches forward, primarily in the web area just above the base, and also at the neck and shoulder as it conforms to the chamber. This stretching, combined with subsequent resizing operations, causes the case to lengthen over time.

Q: How often should I trim my .270 WSM cases?
A: The frequency of trimming depends on several factors: the specific cartridge, the powder charge, the rifle's chamber dimensions, and the number of times the case has been fired and resized. For the .270 WSM, it's generally good practice to measure case length after every full-length resizing. Many reloaders trim cases every 1-3 firings or whenever the case length approaches or exceeds the maximum specified length for the cartridge. The Lee Quick Trim system makes this measurement and trimming so fast that you can easily incorporate it into every full-length resizing session for maximum consistency.

Q: Is the Lee Quick Trim Die compatible with other brands of reloading presses?
A: Yes, the Lee Quick Trim Dies, including the Lee 90393 Quick Trim Rifle Die for .270 WSM, are designed with standard 7/8x14 threads. This means they are compatible with virtually any single-stage or turret reloading press from major manufacturers that accept standard dies.

Q: Do I need to lubricate cases before using the Quick Trim system?
A: While the trimming action itself doesn't strictly require lubrication for the trim, cases must be resized before trimming. And resizing bottleneck rifle cases like the .270 WSM absolutely requires proper case lubrication to prevent them from sticking in the sizing die. Therefore, by the time a case is ready for the Quick Trim die, it should already be lubricated from the resizing step.

Q: What is the maximum case length for .270 WSM?
A: According to SAAMI specifications, the maximum case length for the .270 WSM is typically 2.100 inches. The trim-to length is usually set slightly below this, often around 2.090 inches, to allow for some stretching before reaching the maximum. The Lee Quick Trim Die for .270 WSM is designed to trim cases to the appropriate safe and consistent length. Always consult reliable reloading manuals for precise specifications.

Q: Can I use this die for other WSM cartridges?
A: No. The Lee 90393 Quick Trim Rifle Die is specifically designed and dimensioned for the .270 WSM cartridge. While other WSM cartridges share similar case head dimensions, their case lengths and shoulder angles differ significantly. You would need a specific Quick Trim die for each WSM caliber you reload (e.g., .300 WSM, 7mm WSM).

Product Specifications and Details

The Lee Quick Trim Rifle Die for .270 WSM is an essential component for any reloader aiming for consistent, high-quality ammunition.

Feature	Description
Product Name	Lee Quick Trim Rifle Die
Cartridge	.270 Winchester Short Magnum (.270 WSM)
UPC	734307903930
Part Number	90393
Compatibility	Standard 7/8x14 Threaded Reloading Presses
Required Tool	Lee Quick Trim Cutter (Sold Separately)
Material	Steel
Function	Precision Case Trimming to SAAMI Specifications
Availability	DEGuns.com
