Mastering Precision Reloading: The Lee 90489 Quick Trim Die for 7x57mm Mauser

For any reloader committed to achieving unparalleled accuracy and consistency in their rifle ammunition, controlling cartridge case length is not just a recommendation—it's a fundamental requirement. Whether you're a seasoned handloader or just beginning your journey into the meticulous world of ammunition crafting, you understand that variables in case dimensions can profoundly impact everything from chamber pressure and bullet seating depth to, most critically, downrange precision and safety. This extensive guide delves into the indispensable role of the Lee 90489 Quick Trim Die, specifically engineered for the legendary 7x57mm Mauser cartridge, and how it serves as a cornerstone for producing superior rifle rounds.

Why Consistent Case Length is Crucial for Rifle Ammunition

Before exploring the tool itself, let's firmly establish why case trimming is a non-negotiable step in the reloading process. When a cartridge is fired, the brass case undergoes expansion under immense pressure, stretching slightly, particularly at the neck and shoulder. Over multiple firings, this stretching accumulates, causing the case to exceed its maximum safe length.

What happens if you don't trim your cases?

• Safety Hazard: An overly long case can interfere with the rifle's chamber, leading to the case mouth crimping into the forcing cone or throat of the barrel. This can cause dangerous pressure spikes, potentially damaging your firearm or even leading to catastrophic failure.
• Reduced Accuracy: Inconsistent case lengths result in variable bullet seating depths and neck tension, leading to inconsistent bullet release from the case. This directly translates to erratic muzzle velocities and poor shot-to-shot accuracy. Your carefully developed loads will fail to group tightly.
• Compromised Reliability: Long cases can make it difficult for the bolt to fully close, leading to feeding and extraction issues, particularly in semi-automatic or lever-action rifles.
• Limited Brass Life: Stretched brass, if not properly trimmed, can develop stress points, leading to premature cracking or splitting, especially around the neck, significantly shortening the lifespan of your valuable brass.

The solution to these challenges lies in precise and consistent case trimming, a task made remarkably simple and efficient with the right tools.

The Lee Quick Trim System: Simplicity Meets Precision

The Lee Quick Trim system is designed to streamline the case trimming process, making it accessible to reloaders of all experience levels without sacrificing precision. Unlike traditional trimmers that often require multiple adjustments and separate components for each caliber, the Quick Trim system integrates directly with your reloading press, offering a user-friendly and efficient workflow.

At its core, the system utilizes caliber-specific trim dies, like the Lee 90489, combined with a universal trimmer unit (either the Lee Quick Trim Die or the Lee Quick Trim Case Trimmer, sold separately). This innovative design allows you to trim cases to the correct length while they are still in your reloading press, saving valuable time and effort.

Key Advantages of the Lee Quick Trim System:

• Speed and Efficiency: Trimming is integrated into the sizing step or can be done rapidly on a dedicated press station. Simply run the case into the die, and the trimmer shaves off the excess material.
• Consistent Results: Each case is trimmed to a factory-specified, consistent length, ensuring uniform dimensions across your entire batch of ammunition. This consistency is paramount for achieving optimal accuracy.
• Ease of Use: No complex setups or tedious measurements are required for each case. Once the system is calibrated for your caliber, it's a "set it and forget it" operation.
• Built-in Chamfer and Deburr: Many Lee Quick Trim dies, or the trimmer heads themselves, incorporate a feature that simultaneously chamfers and deburrs the case mouth during the trimming process. This prepares the case mouth for smooth bullet seating, preventing bullet deformation and improving accuracy.
• Affordability: Lee Precision is renowned for producing high-quality reloading equipment that offers exceptional value, and the Quick Trim system is no exception. It provides a professional level of precision without a premium price tag.

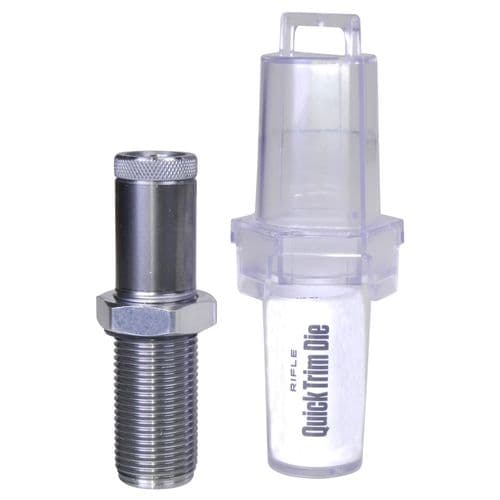

The Lee 90489 Quick Trim Die for 7x57mm Mauser: A Deep Dive

The Lee 90489 Quick Trim Die is a caliber-specific component, meticulously crafted for the classic 7x57mm Mauser cartridge. This die is the key to precisely trimming your 7x57mm Mauser cases to their correct length, ensuring maximum performance and safety for this historically significant round.

Features Tailored for the 7x57mm Mauser:

• Caliber-Specific Design: Engineered precisely for the 7x57mm Mauser cartridge, guaranteeing that cases are trimmed to the exact SAAMI (Sporting Arms and Ammunition Manufacturers' Institute) specifications for this caliber. This removes guesswork and ensures compliance with industry standards.
• Durable Construction: Manufactured from high-quality steel, the die is built to withstand the rigors of frequent reloading, offering long-term reliability and consistent performance. Its robust design ensures it will be a staple in your reloading bench for years to come.
• Seamless Integration: Designed to screw into any standard 7/8"-14 threaded reloading press, allowing for straightforward integration into your existing setup. It works best with other Lee Precision Quick Trim components, ensuring optimal functionality.
• Essential for Reloading Kits: For anyone building a comprehensive 7x57mm Mauser reloading kit, the Lee 90489 is an essential component. It complements your sizing dies, seating dies, and powder measures to create a complete system for producing high-quality ammunition.

Who Benefits from the Lee 90489 Quick Trim Die?

This specific die is indispensable for:

• 7x57mm Mauser Enthusiasts: Those who regularly shoot or hunt with a 7x57mm Mauser rifle and want to handload their ammunition for superior performance and cost savings.
• Precision Shooters: Individuals aiming for the tightest possible groups, where every variable, including case length, must be meticulously controlled.
• Hunters: Ensuring reliable and accurate ammunition for ethical hunting, where shot placement is critical.
• Reloading Beginners: Its ease of use makes it an excellent choice for those new to rifle cartridge reloading, simplifying a potentially complex step.
• High-Volume Reloaders: The speed and efficiency of the Quick Trim system make it ideal for processing large batches of brass quickly and consistently.

Real-World Applications and Use Cases

Question: "How do I ensure my 7x57mm Mauser rifle cases are the correct length every time?"
Answer: The Lee 90489 Quick Trim Die, when used with a Lee Quick Trim unit, automatically trims your cases to the precise SAAMI specification for the 7x57mm Mauser cartridge, eliminating the need for manual measurements for each case after initial setup. This guarantees uniformity across your entire batch.

Question: "What's the best way to prepare fired 7x57mm Mauser brass for consistent reloading?"
Answer: After cleaning and sizing your fired brass, the next critical step is trimming. The Lee 90489 Quick Trim Die, combined with a Quick Trim Case Trimmer, provides an efficient one-pass solution. It ensures your cases are within spec, which is vital for maintaining consistent chamber pressures and optimal bullet seating. For optimal results, ensure the brass is clean and free of debris before trimming.

Question: "I'm experiencing inconsistent accuracy with my handloaded 7x57mm Mauser ammunition. Could case length be the issue?"
Answer: Absolutely. Inconsistent case length is a common culprit behind erratic accuracy. Variations in case length can lead to differences in neck tension and how the bullet exits the case, causing velocity deviations. The Lee 90489 Quick Trim Die brings all your 7x57mm Mauser cases to a uniform length, significantly contributing to improved consistency and tighter groups.

Question: "How can I safely reload rifle cartridges without risking overpressure?"
Answer: One of the most critical safety measures in rifle reloading is ensuring cases are not excessively long. An over-length case can jam into the rifle's chamber, preventing the bolt from closing fully or leading to dangerous pressure spikes upon firing. The Lee 90489 Quick Trim Die addresses this directly by trimming cases to a safe, standardized length, mitigating this significant safety concern.

Integrating the Lee 90489 into Your Reloading Workflow

Using the Lee 90489 Quick Trim Die is straightforward. Here’s a general overview of its place in the reloading sequence:

1. Case Preparation: Begin with thoroughly cleaned and de-primed 7x57mm Mauser brass.
2. Sizing: Size your cases using a full-length sizing die. This restores the case to its proper dimensions and prepares it for trimming.
3. Mount the Die: Screw the Lee 90489 Quick Trim Die into a station on your reloading press.
4. Insert Trimmer Unit: Attach your Lee Quick Trim Die (the rotary cutter unit) or Lee Quick Trim Case Trimmer (a standalone unit that attaches to the die) to the top of the 90489 die.
5. Trim: Insert a sized 7x57mm Mauser case into the appropriate shell holder on your press and raise the ram, pushing the case into the die. As the case enters the die, the trimmer unit will automatically cut the case to the correct length. Rotate the trimmer unit or the case as instructed for optimal results.
6. Chamfer/Deburr: The design of the Quick Trim system often simultaneously chamfers and deburrs the case mouth, eliminating sharp edges and preparing the case for smooth bullet seating. If not, a quick pass with a hand chamfer/deburr tool is recommended.
7. Final Inspection: Always visually inspect your trimmed cases for any burrs or imperfections.

This seamless integration ensures that case trimming becomes a quick, precise, and almost automatic part of your reloading routine, allowing you to focus more on load development and less on tedious case preparation.

The Legacy of the 7x57mm Mauser Cartridge

The 7x57mm Mauser, also known as the .275 Rigby in the UK, is a legendary cartridge with over a century of history. Developed in 1892 by Paul Mauser, it quickly gained acclaim for its excellent ballistics, mild recoil, and effectiveness on a wide range of game. From military service to big game hunting in Africa (famously used by W.D.M. Bell for elephant hunting), its versatility and inherent accuracy have cemented its place in firearms history.

Reloading for the 7x57mm Mauser allows enthusiasts to tailor ammunition to their specific rifle and intended use, whether for classic military rifles, modern sporting rifles, or custom bolt actions. Achieving consistent performance with this venerable cartridge relies heavily on meticulous case preparation, making tools like the Lee 90489 Quick Trim Die indispensable for maintaining the cartridge's legacy of accuracy and reliability.

Maintaining Your Reloading Equipment

To ensure the longevity and continued precision of your Lee 90489 Quick Trim Die and other reloading tools, proper maintenance is essential:

• Cleanliness: After each reloading session, wipe down your dies with a clean cloth. Occasionally, use a soft brush and a quality gun cleaning solvent to remove powder residue or lubricant buildup from inside the die.
• Lubrication: A light coat of rust preventative oil should be applied to the exterior surfaces of the die, especially if storing for extended periods or in humid environments.
• Storage: Store dies in their original packaging or in a dedicated die box to protect them from dust, moisture, and accidental damage.
• Inspection: Periodically inspect the trimming blade (on your Quick Trim Die unit, not the 90489 die itself) for sharpness and wear. A dull blade will not provide clean cuts.

By taking care of your equipment, you ensure that tools like the Lee 90489 Quick Trim Die will continue to provide accurate and reliable service for thousands of rounds.

Conclusion: Elevating Your 7x57mm Mauser Reloads

For anyone serious about handloading precise, safe, and consistent 7x57mm Mauser ammunition, the Lee 90489 Quick Trim Die is an essential investment. It simplifies the critical task of case trimming, ensuring every piece of brass is brought to the optimal length for superior performance. By integrating this die into your reloading process, you're not just trimming cases; you're building a foundation for enhanced accuracy, improved safety, and extended brass life. This tool embodies Lee Precision's commitment to delivering innovative, high-quality, and affordable solutions for reloaders worldwide. Elevate your 7x57mm Mauser reloading experience and unlock the full potential of your ammunition by incorporating this precise and efficient trim die into your workbench today. Find this indispensable tool and other quality reloading supplies for your 7x57mm Mauser, including complete Lee reloading presses and accessories, at DEGuns.

---

Product Specifications & Compatibility

Feature	Detail
Product Type	Quick Trim Die
Caliber	7x57mm Mauser
Manufacturer	Lee Precision
Part Number	90489
Material	Steel
Thread Size	7/8"-14 (Standard Reloading Press)
Function	Trims rifle cartridge cases to factory specified length
Compatibility	Requires Lee Quick Trim Case Trimmer (sold separately) or Lee Quick Trim Die (sold separately)
Primary Benefit	Ensures uniform case length for improved accuracy and safety
UPC	76683904896
