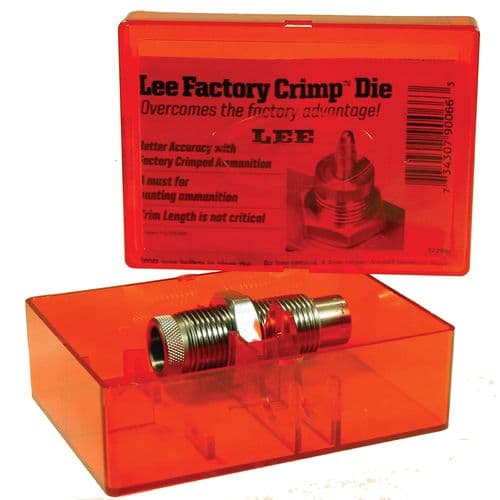

The Essential Tool for .458 Winchester Magnum Reloaders: Lee Factory Crimp Die 90969

For serious reloaders, especially those who work with powerful, large-caliber rifle cartridges like the .458 Winchester Magnum, ensuring the absolute reliability and consistency of every round is paramount. Whether you're preparing ammunition for a challenging dangerous game hunt, competitive shooting, or simply seeking to maximize the performance of your handloads, the Lee Factory Crimp Die 90969 is an indispensable component in your reloading toolkit. This specialized die is engineered to address the unique demands of heavy-recoiling cartridges, providing a uniform, secure crimp that mimics factory ammunition, preventing critical issues like bullet setback and enhancing overall accuracy and safety.

Why a Perfect Crimp Matters for .458 Winchester Magnum Ammunition

The .458 Winchester Magnum is renowned for its immense stopping power and its ability to handle large, heavy bullets. Often employed for hunting big, thick-skinned, and dangerous game, reliability in the field is non-negotiable. One of the most common and dangerous issues in high-recoil cartridges is "bullet setback," where the bullet is pushed deeper into the case during recoil, feeding, or handling. This seemingly minor issue can dramatically increase chamber pressure, potentially leading to catastrophic firearm failure or severe injury.

A precise and consistent crimp is the primary defense against bullet setback. It securely anchors the bullet in the case, ensuring it remains in its intended position even under the harshest recoil and feeding conditions. Beyond safety, a good crimp also contributes significantly to:

• Consistent Powder Burn: A uniform crimp helps create consistent neck tension, leading to a more consistent start pressure for powder ignition. This translates to more uniform bullet velocities, directly impacting downrange accuracy.
• Optimal Feeding: Properly crimped rounds feed smoothly from the magazine into the chamber, reducing the risk of malfunctions during critical moments.
• Enhanced Accuracy: By ensuring the bullet is held straight and concentric with the case mouth, the crimp minimizes bullet deformation and promotes a cleaner, more consistent release from the case upon firing.
• Protection of Components: A well-executed crimp can also protect the bullet's integrity, especially with soft-nosed or lead bullets, preventing damage during handling or recoil.

The Lee Factory Crimp Die 90969 offers a superior solution to achieve this critical crimp, specifically designed to meet the rigorous demands of the .458 Winchester Magnum.

Understanding the Lee Factory Crimp Die Technology

Unlike traditional roll crimp or taper crimp dies, the Lee Factory Crimp Die operates on a unique principle that sets it apart. It uses a collet to press the case mouth uniformly around the bullet, creating a secure crimp without overworking the brass or requiring a crimp groove on the bullet itself. This innovative design offers several distinct advantages:

• Collet-Style Crimp: The collet-style mechanism allows the die to apply a uniform crimp around the entire circumference of the bullet. This eliminates the "banana-shaped" crimp sometimes seen with roll crimps, which can deform the bullet and negatively impact accuracy.
• No Crimp Groove Required: One of the most significant benefits is its ability to crimp bullets that do not have a dedicated cannelure or crimp groove. This expands the range of suitable bullets for reloaders, offering greater flexibility in bullet selection for their specific needs, whether it's a specific weight, profile, or construction.
• Independent Operation: The Lee Factory Crimp Die can be used as a separate step after bullet seating, allowing reloaders to fine-tune their seating depth independently of the crimping process. This provides maximum control over the ammunition's final dimensions and performance characteristics.
• Prevents Case Bulge: Because the die crimps the case mouth without also resizing the entire case or affecting the body of the brass, it helps prevent case bulge. This is particularly beneficial for rounds that are slightly oversized or when using brass that has been previously fired and expanded. It also applies a slight post-sizing to the finished cartridge, ensuring it will chamber reliably in any firearm chambered for .458 Winchester Magnum.

Key Features and Benefits of Lee 90969 Factory Crimp Rifle Die

When considering the optimal tools for reloading powerful cartridges like the .458 Winchester Magnum, the Lee Factory Crimp Die 90969 stands out for its specific design and the tangible benefits it delivers to the reloader.

• Designed for .458 Winchester Magnum: This die is specifically engineered to the exact specifications required for the .458 WM cartridge. This precision ensures a perfect fit and consistent crimp every time, tailored to the unique dimensions of this powerful round.
• Factory-Like Ammunition Performance: The primary goal of the Lee Factory Crimp Die is to enable handloaders to produce ammunition that rivals the quality, consistency, and reliability of factory-loaded cartridges. This means enhanced safety, dependable feeding, and superior accuracy for your reloads.
• Eliminates Bullet Setback: As discussed, bullet setback is a critical concern for magnum rifle cartridges. This die provides a robust and uniform crimp that virtually eliminates the risk of bullet movement during recoil or feeding, significantly enhancing safety and preventing dangerous pressure spikes.
• Improved Accuracy and Consistency: By applying a concentric crimp, the die avoids deforming the bullet, allowing it to exit the case mouth uniformly. This leads to reduced group sizes and more consistent point of impact shot after shot, which is crucial for both hunting and target shooting.
• Handles Varying Case Lengths: One common challenge in reloading is dealing with minor variations in case length, which can affect the effectiveness of traditional crimps. The collet design of the Lee Factory Crimp Die is highly tolerant of these variations, applying a consistent crimp regardless of slight differences in case length. This simplifies the reloading process and reduces the need for constant case trimming to achieve an effective crimp.
• Suitable for Cast and Jacketed Bullets: Whether you prefer jacketed bullets for maximum penetration or cast lead bullets for economical practice and specialized applications, this die is versatile enough to provide an ideal crimp for both, without damaging the bullet material.
• Constructed for Durability: Lee Precision is known for manufacturing rugged and reliable reloading equipment. This die is crafted from high-quality steel, designed to withstand years of heavy use without degradation in performance. Its robust construction ensures long-term reliability for demanding reloaders.
• User-Friendly Design: Lee dies are generally designed with the reloader in mind, featuring straightforward setup and operation. Even those relatively new to advanced reloading techniques will find the Lee Factory Crimp Die easy to integrate into their process.

How Does It Compare? Lee Factory Crimp Die vs. Other Crimping Methods

Understanding the unique advantages of the Lee Factory Crimp Die 90969 often involves comparing it to alternative crimping methods that reloaders might encounter:

Feature/Method	Lee Factory Crimp Die	Roll Crimp Die (e.g., in a 3-die set)	Taper Crimp Die (often for pistol, some rifle)
Crimp Type	Collet-style; case mouth pressed into bullet	Case mouth rolled into a cannelure/crimp groove	Case mouth squeezed inward to reduce flare
Crimp Groove Req.?	No, works without a cannelure/crimp groove	Yes, requires bullet with a cannelure or crimp groove	No, but relies on neck tension and bullet profile
Bullet Distortion	Minimal to none, as pressure is uniform	Can distort bullet if over-crimped or not aligned	Minimal, but may not provide sufficient hold for recoil
Case Length Tol.	High, tolerates variations in case length	Low, very sensitive to case length for consistent crimp	Moderate, depends on die design and case length
Safety for Recoil	Excellent, strongly prevents bullet setback	Good, if properly executed with appropriate cannelure	Fair to Poor for heavy recoil, not its primary function
Post-Sizing	Yes, applies a slight post-sizing to the entire cartridge	No	No (unless combined with a sizing function)

For the .458 Winchester Magnum, the superior hold and bullet protection offered by the Lee Factory Crimp Die make it a standout choice, particularly when safety against bullet setback is paramount for high-recoil applications.

Maximizing Your .458 Winchester Magnum Reloads with Lee 90969

To achieve the best possible results with your Lee Factory Crimp Die 90969, consider these practical tips for integrating it into your reloading workflow:

• Separate Operation: For optimal control, use the Lee Factory Crimp Die as a separate, final step after all other reloading operations (resizing, priming, powder charging, and bullet seating) are complete. This allows you to fine-tune each parameter independently.
• Adjust for Desired Crimp: Adjust the die in your press until the desired amount of crimp is achieved. A good crimp will securely hold the bullet without deforming it or significantly reducing case life. Start with a light crimp and gradually increase until the bullet passes the "plunk test" (drops freely into and out of your rifle's chamber) and resists manual setback pressure.
• Consistency is Key: While the die is forgiving of case length variations, strive for consistent case preparation, including trimming, to ensure the most uniform crimps possible across all your ammunition.
• Inspect Your Crimps: Regularly inspect your crimped rounds to ensure the crimp is uniform and not overly aggressive. A slight indentation around the case mouth is typically sufficient.
• Clean and Maintain: Like all reloading dies, keep your Lee Factory Crimp Die clean and lightly lubricated (externally) to ensure smooth operation and prevent rust. This will extend the life of the die and ensure consistent performance.

Real-World Scenarios and Common Questions Answered

• "My .458 WM rounds are experiencing bullet setback in the magazine during heavy recoil. How can I fix this?"
  The Lee Factory Crimp Die 90969 is designed precisely to solve this problem. Its robust collet crimp provides superior bullet retention compared to roll or taper crimps, virtually eliminating bullet setback in high-recoil cartridges.
• "Can I use this die with bullets that don't have a cannelure?"
  Absolutely! One of the significant advantages of the Lee Factory Crimp Die is its ability to effectively crimp bullets without a cannelure (crimp groove). This gives you greater flexibility in bullet selection for your .458 Winchester Magnum loads.
• "Will this crimp die improve my accuracy?"
  Yes, a proper and consistent crimp, as delivered by the Lee Factory Crimp Die, can significantly improve accuracy. It ensures uniform neck tension, consistent powder ignition, and prevents bullet deformation, all of which contribute to tighter groups downrange.
• "Is this die compatible with my reloading press?"
  Lee dies, including the 90969, are standard 7/8"-14 thread and are compatible with virtually all major single-stage, turret, and progressive reloading presses on the market, provided they accept standard dies.
• "I'm new to reloading .458 Winchester Magnum. Is this die easy to use?"
  Yes, Lee Precision designs its products for ease of use. While achieving the perfect crimp requires some initial adjustment and testing, the general operation of the Lee Factory Crimp Die is straightforward and well-documented in the included instructions.

Why Choose Lee Precision for Your Reloading Needs?

Lee Precision has established itself as a cornerstone in the reloading community for decades, consistently delivering innovative, high-quality, and cost-effective reloading equipment. Their commitment to improving the reloading process for enthusiasts is evident in products like the Factory Crimp Die. When you choose Lee, you're investing in:

• Innovation: Lee consistently introduces clever, patented designs that simplify complex reloading tasks and enhance the quality of your ammunition.
• Quality Construction: Despite their accessible price point, Lee products are known for their durable materials and precise machining, ensuring long-lasting performance.
• Value: Lee offers exceptional value, making high-quality reloading accessible to a broad range of shooters and hunters without compromising on performance or safety.
• Support: Lee provides comprehensive instructions and customer support, empowering reloaders to confidently produce their own ammunition.

The Lee Factory Crimp Die 90969 for .458 Winchester Magnum is a prime example of Lee's dedication to serving the serious reloader. It's an investment in the safety, consistency, and accuracy of your powerful rifle ammunition.

Conclusion: Elevate Your .458 Winchester Magnum Reloads

For anyone handloading the formidable .458 Winchester Magnum, the Lee Factory Crimp Die 90969 is not just an accessory; it's a fundamental tool for achieving superior ammunition. It directly addresses the critical need for bullet retention in high-recoil scenarios, mitigates risks associated with bullet setback, and simultaneously enhances the accuracy and reliability of every round. By providing a consistent, factory-like crimp, it empowers reloaders to produce high-performance ammunition tailored to their specific needs, whether for dangerous game hunting, target shooting, or general practice. Investing in this specialized die means investing in the precision, safety, and ultimate success of your .458 Winchester Magnum endeavors.

---

Product Specifications

Feature	Detail
Product Name	Lee Factory Crimp Rifle Die
Caliber	.458 Winchester Magnum
Manufacturer	Lee Precision
Part Number	90969
Die Type	Collet-Style Crimp Die
Material	High-Quality Steel
Primary Function	Securely crimps bullet to case; prevents bullet setback; enhances consistency
Compatibility	Standard 7/8"-14 thread; fits most reloading presses
Crimp Groove Req.	No, works with bullets with or without cannelure
Benefits	Improved accuracy, enhanced safety, reliable feeding, consistent powder burn
