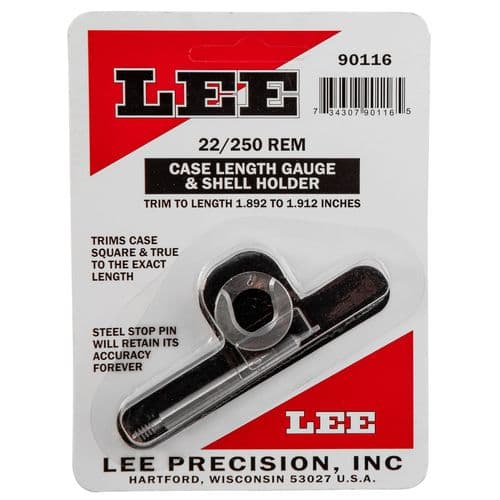

The Indispensable Tool for Precision Reloading: Lee Case Length Gauge for .22-250 Remington

For anyone dedicated to the art and science of handloading ammunition, particularly for high-performance rifle cartridges like the .22-250 Remington, maintaining consistent case length is not merely a recommendation—it's an absolute necessity. The Lee Case Length Gauge, specifically designed for the .22-250 Rem caliber, is an essential component in achieving both the precision and safety paramount to successful reloading. This compact yet powerful tool addresses a critical challenge faced by every reloader: the stretching of brass cases after firing and subsequent resizing. Without a reliable method to monitor and correct case length, reloaders risk inconsistent bullet seating, potential over-pressure situations, and diminished accuracy.

Why Case Length Consistency is Crucial for .22-250 Rem Reloaders

Every time a cartridge is fired, the brass case undergoes significant stress. It expands to seal the chamber and then contracts, but not always uniformly. Subsequent full-length resizing, a common step in rifle reloading, stretches the case, especially in the web area. Over time, this stretching causes the case to exceed its maximum allowable length, as defined by SAAMI (Sporting Arms and Ammunition Manufacturers' Institute) specifications.

• Safety Concerns: What happens if your cases are too long? An oversized case can bind in the chamber, leading to potential over-pressure when the bullet is seated or when the cartridge is fired. This can be dangerous, potentially damaging your firearm or, in extreme cases, causing injury. The .22-250 Remington, known for its high velocities and relatively thin case walls, is particularly susceptible to these issues if not properly managed.
• Accuracy Degradation: Inconsistent case lengths lead to inconsistent bullet seating depth and neck tension. This variability directly translates to a lack of uniformity in bullet release and overall ballistic performance, severely impacting accuracy. For varmint hunters or target shooters who rely on the .22-250 Rem for its flat trajectory and precision, trimming cases to the precise length is non-negotiable for achieving tight groups.
• Component Wear and Tear: An excessively long case can pinch the bullet in the rifling upon chambering, leading to premature wear on both the bullet and the rifle's chamber throat. It can also interfere with proper crimping, if crimping is desired, leading to inconsistent neck tension.
• Brass Longevity: While trimming shortens the case, neglecting to trim when necessary can lead to catastrophic case failure in the chamber, rendering the brass unusable and potentially damaging your firearm. Proper trimming, as part of a comprehensive case preparation regimen, contributes to the extended lifespan of your valuable brass.

The Lee Case Length Gauge for .22-250 Rem solves these problems by providing a quick, accurate, and repeatable method to check and trim cases to the correct trim-to length. It's designed to bring your brass back to an optimal, consistent dimension every time.

Understanding the Lee Case Length Gauge System

The Lee Case Length Gauge is part of a two-component system that typically includes the gauge itself and a cutter and lock stud (sold separately, but often used together). The gauge itself is a precision-machined piece of hardened steel, specifically calibrated for the .22-250 Remington cartridge. It features an internal stop that allows the case to be inserted only to the precise factory trim-to length.

Here's how this ingenious system works:

1. The Gauge (Sizing Reference): The core of this product, the Lee Case Length Gauge, acts as a definitive stop. When a resized .22-250 Rem case is inserted into the gauge, any excess length protrudes beyond the end of the gauge. This protrusion is the material that needs to be removed.
2. The Cutter (Material Removal): The Lee Cutter is a razor-sharp blade that, when used in conjunction with the gauge, shaves off the protruding brass.
3. The Lock Stud (Holding Mechanism): The Lee Lock Stud holds the gauge and case securely, allowing it to be spun by hand or with a drill (using a shell holder).

The simplicity of this system is one of its greatest strengths. Unlike more complex motorized trimmers, the Lee system offers an economical yet highly accurate solution for case preparation, making it accessible for both new and seasoned reloaders. This specific gauge is pre-set to the SAAMI recommended trim-to length for the .22-250 Remington, eliminating the need for constant caliper measurements during the trimming process.

Key Features and Benefits for the Discerning Reloader

What makes the Lee Case Length Gauge for .22-250 Rem a standout tool in the reloading bench?

• Precision Engineering: Manufactured from robust, hardened steel, this gauge is built for durability and consistent performance. Its internal dimensions are precisely machined to hold your .22-250 Rem cases to within thousandths of an inch of the correct trim-to length, ensuring high accuracy that rivals more expensive systems.
• Unmatched Simplicity: The fixed trim-to length design means there's no complex setup or adjustments required. Simply insert your resized .22-250 Rem case, and it's ready for trimming. This "set it and forget it" approach significantly streamlines the case preparation process.
• Cost-Effectiveness: For reloaders looking to achieve high-quality ammunition without a significant investment, the Lee Case Length Gauge offers an unparalleled value proposition. It provides professional-level precision at an affordable price point, making it an ideal choice for both beginners building their first reloading setup and experienced hands looking for reliable, caliber-specific tools.
• Durability and Longevity: Constructed from high-quality materials, the gauge is designed to withstand years of regular use. Its robust construction resists wear and tear, maintaining its precise dimensions over thousands of trimming operations.
• System Compatibility: The gauge seamlessly integrates with other popular Lee Precision reloading tools, particularly the Lee Cutter and Lock Stud, forming a complete, efficient trimming system. This modularity allows reloaders to invest in caliber-specific gauges as their needs expand, while reusing the universal cutter and lock stud.
• Direct Fit for .22-250 Rem: This gauge is specifically calibrated for the .22-250 Remington cartridge, ensuring perfect fit and accurate trimming for this popular varmint and target shooting caliber. This eliminates guesswork and ensures adherence to precise SAAMI specifications.

Essential Steps for Using Your Lee .22-250 Rem Case Length Gauge

So, how do you trim rifle cases accurately using this straightforward system? The process is surprisingly quick and intuitive, even for those new to reloading.

1. Resize Your Brass: Before trimming, always full-length resize your .22-250 Rem cases. Resizing pushes the shoulder back and stretches the case, making it ready for the trim-to-length operation.
2. Insert the Case: Place a resized .22-250 Rem case into the shell holder. The shell holder then slides into the Lee Lock Stud.
3. Assemble the Gauge and Cutter: Thread the Lee Case Length Gauge onto the Lock Stud, ensuring the gauge is seated firmly against the shell holder. Then, thread the Lee Cutter onto the other end of the Lock Stud, allowing its blade to contact the protruding case mouth.
4. Trim the Case: With the assembly securely held (either by hand, in a drill chuck, or with a dedicated trimmer stand), rotate the cutter while applying light pressure. The cutter will shave off any brass that extends beyond the precise trim-to length determined by the gauge. Continue rotating until no more brass is being removed, and the cutter's face is flush with the gauge.
5. Deburr and Chamfer: After trimming, the case mouth will have a slight burr. This must be removed to ensure smooth bullet seating and to prevent damage to the bullet or the powder charge. Use a deburring and chamfering tool to clean both the inside and outside of the case mouth. This also helps guide the bullet smoothly into the case.
6. Inspect and Store: Visually inspect your trimmed cases for any imperfections. Once satisfactory, your .22-250 Rem brass is ready for subsequent steps in the reloading process.

This streamlined process makes it easy to maintain consistent case lengths across large batches of .22-250 Rem brass, dramatically improving the efficiency of your reloading sessions.

Beyond Trimming: The Role of Case Preparation in .22-250 Rem Performance

While the Lee Case Length Gauge is vital for correcting case length, it's part of a larger, comprehensive case preparation regimen that contributes to the ultimate quality of your reloaded .22-250 Rem ammunition. Other critical steps include:

• Decapping and Resizing: Removing the spent primer and bringing the case back to SAAMI dimensions.
• Primer Pocket Cleaning: Removing residue ensures consistent primer seating and ignition.
• Neck Sizing (Optional): For bolt-action rifles, neck sizing can sometimes be used after initial full-length sizing to extend brass life, though full-length sizing is more common for standard loads.
• Annealing (Advanced): Heating the case neck and shoulder to restore ductility, preventing cracks and ensuring consistent neck tension. This is especially beneficial for high-volume reloaders or those seeking maximum brass life for their .22-250 Rem.

Each of these steps, when performed diligently, contributes to a more uniform, safer, and accurate finished cartridge. The Lee Case Length Gauge plays a pivotal role in this chain, ensuring that the foundation of your ammunition – the brass case – is dimensionally correct.

The .22-250 Remington Cartridge: A Brief Overview

The .22-250 Remington is a high-velocity, flat-shooting centerfire rifle cartridge popular for varmint hunting, predator control, and target shooting. Developed from the .250-3000 Savage case, it was officially standardized by Remington in 1965. Its combination of speed, relatively light recoil, and excellent accuracy potential makes it a favorite among shooters who demand precision at extended ranges. Given its ballistic characteristics, any inconsistencies in ammunition, including variations in case length, will be magnified downrange. This makes precise case preparation, facilitated by tools like the Lee Case Length Gauge, absolutely critical for extracting the full performance potential of this cartridge.

Is the Lee Case Length Gauge Right for You?

If you find yourself asking "What are the best tools for consistent rifle ammunition?" or "Which must-have reloading tools for .22-250 Rem should I prioritize?", the Lee Case Length Gauge should be high on your list. This tool is ideal for:

• New Reloaders: Its simplicity and affordability make it an excellent starting point for learning proper case preparation without a steep financial commitment.
• Experienced Reloaders: Those seeking to streamline their process or add dedicated, caliber-specific tools for maximum efficiency will appreciate its quick and accurate operation.
• Precision Shooters: If consistent group sizes and maximum accuracy are your goals, especially with calibers like the .22-250 Rem, maintaining exact case length is non-negotiable.
• Budget-Conscious Reloaders: It provides an effective solution without requiring an investment in more complex, motor-driven trimmers.
• High-Volume Reloaders: While manual, its speed in combination with a drill makes processing large batches of brass remarkably efficient.

It's the answer for anyone who understands that the foundation of a high-quality, safe, and accurate reloaded cartridge lies in meticulously prepared brass.

Maintaining Your Reloading Equipment

To ensure the longevity and continued precision of your Lee Case Length Gauge, as well as your other reloading tools, a few simple maintenance tips are recommended:

• Cleanliness: After each use, wipe down the gauge and shell holder to remove any brass shavings or residue. A light coat of rust preventative oil can protect the steel components, especially if you live in a humid environment.
• Storage: Store your gauges in a dry, organized manner to prevent damage or loss.
• Inspection: Periodically inspect the gauge for any signs of wear or damage. While extremely durable, ensuring its integrity maintains accuracy.

Proper care extends the life of your equipment and safeguards the quality of your reloaded ammunition.

Trust in Quality: Why Choose Lee Precision?

Lee Precision has been a trusted name in the reloading community for decades, known for its innovative designs, robust engineering, and commitment to providing high-quality, affordable reloading equipment. Their products are designed by reloaders, for reloaders, prioritizing ease of use, durability, and most importantly, precision. The Lee Case Length Gauge for .22-250 Rem exemplifies this philosophy, offering a testament to their dedication to helping shooters create accurate and safe ammunition.

This indispensable tool, along with a wide array of other quality reloading supplies from Lee Precision and other reputable manufacturers, is readily available at DEGuns.com. DEGuns is committed to providing reloaders with the finest equipment to support their passion for shooting and handloading, ensuring you have access to the tools you need to achieve exceptional results.

---

Product Specifications: Lee Case Length Gauge for .22-250 Remington

Feature	Description
Caliber	.22-250 Remington
Material	Hardened Steel
Function	Measures and guides for trimming case length
Compatibility	Designed for use with Lee Cutter and Lock Stud (sold separately)
UPC	762160370603

Benefits at a Glance

Benefit	Description
Enhanced Safety	Prevents over-pressure by ensuring cases meet SAAMI specifications.
Improved Accuracy	Guarantees consistent case length for uniform bullet seating and ballistic performance.
Extended Brass Life	Reduces stress on cases and prevents premature failure, saving you money on components.
User-Friendly	Simple, fixed-length design requires no complex adjustments, ideal for all skill levels.
Cost-Effective	Provides professional-grade precision at an accessible price point.

Essential .22-250 Rem Reloading Tools (Complementary)

Tool Type	Purpose
Full-Length Sizing Die	Resizes the case to factory specifications after firing.
Lee Cutter & Lock Stud	Used in conjunction with the Case Length Gauge to trim brass.
Chamfer/Deburring Tool	Cleans and bevels the case mouth after trimming for smooth bullet seating.
Powder Measure	Dispenses precise and consistent powder charges.
Priming Tool	Safely seats new primers into the primer pocket.
