The Essential Tool for .22 Hornet Reloading: Lee Case Length Gauge

For every dedicated reloader of the iconic .22 Hornet cartridge, precision is not just a preference; it's a fundamental requirement for safety, accuracy, and consistent performance. The Lee Case Length Gauge for .22 Hornet (UPC: 734307901042) stands as an indispensable instrument in achieving this vital precision. This guide explores why managing case length is paramount, how this specific Lee tool simplifies the process, and why it's a must-have for anyone serious about handloading this classic varmint and small game round.

Why is Case Length Management Critical for .22 Hornet Reloaders?

Reloading ammunition for rifles like those chambered in .22 Hornet demands meticulous attention to every component, and the brass case is arguably the most foundational element. After a cartridge is fired, the brass expands to fit the rifle's chamber. During subsequent resizing operations, the case walls are pushed back to proper dimensions, but this process often causes the brass to "stretch" or grow in length. If left unchecked, an excessively long case can lead to several dangerous and performance-degrading issues.

Consider a common scenario: a reloader is preparing a batch of .22 Hornet cartridges for an upcoming varmint hunting trip. If the cases are too long, they can bind in the rifle chamber, preventing the bolt from closing fully or even causing excessive pressure upon firing. This binding creates a dangerous situation where the case mouth can be crimped into the chamber throat, effectively creating an uncontrolled crimp that significantly increases chamber pressure. Such conditions can lead to ruptured cases, damaged firearms, and even serious injury to the shooter.

Furthermore, an inconsistent case length directly impacts accuracy. The case mouth provides the seating surface for the bullet. If case lengths vary, so too will the depth to which the bullet is seated relative to the case shoulder and neck. This inconsistency affects powder burn efficiency, bullet concentricity, and ultimately, muzzle velocity and point of impact. For a cartridge like the .22 Hornet, known for its flat trajectory and suitability for precise shots on small targets at range, maintaining uniform case length is key to achieving tight groups and reliable hits.

The Lee Case Length Gauge directly addresses these challenges by providing a simple, accurate, and repeatable method to ensure every .22 Hornet case is trimmed to its optimal length. This tool is specifically engineered to cut cases to a length that is slightly shorter than the maximum SAAMI (Sporting Arms and Ammunition Manufacturers' Institute) specified length. For the .22 Hornet, this typically means a trim-to length that is approximately 0.010 inches under the SAAMI maximum of 1.403 inches, ensuring safe chambering and proper bullet seating without interference.

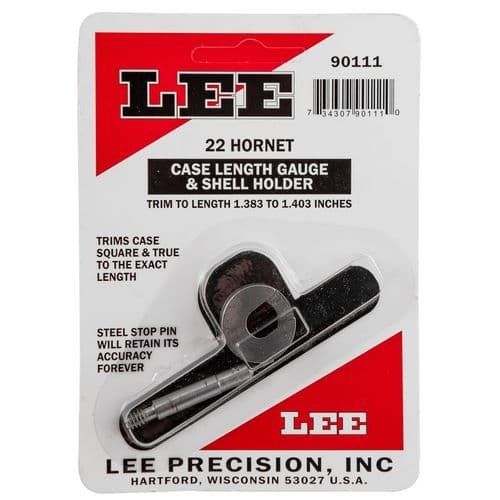

Key Features and Design Excellence of the Lee Case Length Gauge .22 Hornet

The Lee Case Length Gauge for .22 Hornet is a testament to Lee Precision's commitment to delivering high-quality, user-friendly, and affordable reloading equipment. Its design is ingeniously simple yet remarkably effective, making it a cornerstone for efficient case preparation.

Precision Engineering: Each gauge is meticulously machined to precise dimensions, ensuring that every .22 Hornet case trimmed with it meets the correct specification. This consistency is crucial for reloaders aiming for peak performance and safety.

Durable Construction: Crafted from robust, hardened steel, the gauge is built to withstand the rigors of repeated use. It resists wear and tear, promising a long lifespan even with frequent reloading sessions. This durability means you can rely on it for thousands of case trims without losing its accuracy.

Caliber-Specific Design: This particular gauge is designed exclusively for the .22 Hornet cartridge. This specialized approach guarantees the perfect trim length for this specific bottleneck rifle case, taking into account its unique dimensions and reloading requirements. While Lee offers gauges for many calibers, the specificity here ensures optimal results for your .22 Hornet brass.

Compatibility with Lee Trimming System: The gauge is designed to work seamlessly with Lee's Cutter and Lock Stud. This integrated system allows for quick and efficient case trimming, enabling reloaders to process large batches of brass with minimal effort. This modularity means you can use the same cutter and lock stud for other calibers by simply changing the case length gauge and shell holder.

Cost-Effective Solution: Lee Precision is renowned for providing exceptional value, and this case length gauge is no exception. It offers professional-grade precision without the premium price tag, making it accessible to both novice and experienced reloaders. Investing in this tool saves you time, enhances safety, and improves the quality of your handloads, all while being budget-friendly.

How to Use the Lee Case Length Gauge for .22 Hornet: A Step-by-Step Guide

One of the most appealing aspects of the Lee Case Length Gauge system is its straightforward operation. Even those new to reloading can quickly master its use. Here’s a detailed guide on how to incorporate it into your .22 Hornet reloading process:

1. Gather Your Tools: You will need the Lee Case Length Gauge .22 Hornet, a Lee Cutter and Lock Stud, and a Lee Shell Holder #10 (which is the correct shell holder for the .22 Hornet).
2. Prepare Your Brass: Begin with fired .22 Hornet cases that have already been full-length resized and decapped. Resizing is crucial because it returns the case body and neck to their proper dimensions, ensuring an accurate measurement against the gauge.
3. Assemble the System:
   • Screw the Lee Case Length Gauge .22 Hornet into the Lee Lock Stud. Make sure it's finger-tight.
   • Insert the resized .22 Hornet case into the appropriate Lee Shell Holder (#10).
   • Place the shell holder (with the case inserted) onto the shaft of the Lee Cutter. The case mouth should be facing the cutter.
4. Begin Trimming:
   • Hold the shell holder (with the case) firmly in one hand.
   • With the other hand, rotate the Lee Cutter and Lock Stud assembly. As you turn the cutter, the case length gauge will guide the cutter's blade, ensuring it only removes brass until the case reaches the precise, predetermined length.
   • Continue rotating until the cutter stops removing brass. You will hear and feel the cutting action cease as the case reaches its proper length.
5. Remove and Deburr/Chamfer: Once the cutting stops, remove the case from the shell holder. The trimmed case will have a slightly rough edge at the mouth. It is essential to deburr the outside and chamfer the inside of the case mouth. This removes sharp edges, facilitates smooth bullet seating, and prevents scraping the bullet jacket or damaging the powder charge. Lee offers specific chamfering and deburring tools that work perfectly for this step.
6. Inspect and Store: Visually inspect the trimmed case to ensure a clean cut. Your .22 Hornet brass is now precisely trimmed to length and ready for subsequent reloading steps, such as primer seating, powder charging, and bullet seating.

This efficient process allows reloaders to quickly and accurately prepare large quantities of .22 Hornet brass, ensuring uniformity across every cartridge loaded.

Benefits for the Dedicated .22 Hornet Reloader

Investing in and properly utilizing the Lee Case Length Gauge for .22 Hornet offers a multitude of advantages that translate directly into enhanced shooting performance and peace of mind.

Enhanced Safety: The primary benefit is improved safety. By preventing cases from growing too long, you eliminate the risk of excessive chamber pressure, case ruptures, and potential damage to your valuable firearm. This peace of mind allows you to focus on your shooting, whether target practice or hunting.

Superior Accuracy and Consistency: Uniform case length leads to consistent bullet seating depth, which in turn promotes uniform powder combustion and consistent muzzle velocities. This translates directly into tighter groups on target and predictable ballistic performance, a critical factor for precision shooting with the .22 Hornet.

Extended Brass Life: Regularly trimming cases prevents overstretching and reduces the stress on the brass during firing and resizing cycles. This can significantly extend the lifespan of your valuable .22 Hornet brass, getting more reloads out of each case before it needs to be retired due to fatigue or damage.

Simplified Reloading Process: The intuitive design of the Lee system streamlines the case preparation stage. It eliminates guesswork and provides a precise, repeatable method that saves time and reduces errors, allowing you to focus on other critical aspects of handloading.

Cost Savings Over Time: While there's an initial investment in the tool, the ability to extend brass life and consistently produce high-quality, accurate ammunition often results in significant cost savings compared to purchasing factory ammunition or replacing damaged brass prematurely.

Common Questions About .22 Hornet Case Length and Trimming

Understanding the nuances of case preparation for the .22 Hornet often leads to specific questions. Here are answers to some frequently asked queries:

Q: How often should I trim my .22 Hornet brass?
A: It's good practice to check the length of every .22 Hornet case after each firing and full-length resizing cycle. While not every case will need trimming every time, consistent monitoring with your Lee Case Length Gauge will ensure you catch cases that have stretched beyond the acceptable limit. Many reloaders opt to trim every 2-3 firings or whenever a case exceeds the SAAMI maximum case length.

Q: What is the SAAMI specification for .22 Hornet case length?
A: The SAAMI maximum case length for the .22 Hornet is 1.403 inches (35.64 mm). The Lee Case Length Gauge for .22 Hornet is designed to trim cases to a specific "trim-to" length, typically around 1.393 inches (35.38 mm), which is approximately 0.010 inches shorter than the SAAMI maximum. This slight reduction ensures sufficient clearance in the chamber and allows for proper crimping if desired.

Q: Can I use this gauge for other calibers, like .223 Remington?
A: No, the Lee Case Length Gauge is caliber-specific. The Lee Case Length Gauge .22 Hornet (UPC: 734307901042) is precisely machined for the .22 Hornet cartridge only. Using it for any other caliber will result in incorrect case lengths and potentially unsafe ammunition. You will need a separate Lee Case Length Gauge for each specific caliber you reload.

Q: Why choose Lee Precision for my reloading tools?
A: Lee Precision has a long-standing reputation for manufacturing high-quality, innovative, and affordable reloading equipment. Their tools are known for their durability, ease of use, and precision. Many reloaders, from beginners to seasoned veterans, trust Lee products to produce reliable and accurate ammunition. The company's commitment to value and practical design makes them a top choice for essential reloading components.

The .22 Hornet: A Cartridge Deserving of Precision

The .22 Hornet cartridge holds a special place in the hearts of many shooters. Developed in the 1920s, it's a small, fast, bottlenecked centerfire rifle cartridge that gained popularity for its efficiency and effectiveness on small game and varmints at moderate ranges. Its relatively low recoil, modest powder charge, and excellent accuracy potential make it ideal for humane hunting and enjoyable target shooting.

Given its intended use for precision shots on small, often elusive targets, every aspect of its ammunition must be optimized for accuracy. This includes not only consistent powder charges and proper bullet selection but also meticulously prepared brass. A precisely trimmed case ensures that the bullet is seated uniformly and that the cartridge chambers flawlessly every time. The Lee Case Length Gauge .22 Hornet directly contributes to upholding the cartridge's reputation for accuracy and reliability, allowing reloaders to unlock its full potential.

A Holistic Approach to Reloading: Beyond Case Length

While case length management with the Lee Case Length Gauge for .22 Hornet is a critical step, it's important to remember that it's one component of a comprehensive reloading process. Achieving optimal performance from your .22 Hornet handloads involves attention to several key areas:

• Case Cleaning: Thoroughly clean your brass to remove fouling, ensuring consistent seating of primers and smooth feeding.
• Full-Length Resizing: This returns the fired case to SAAMI specifications, allowing it to chamber correctly in your rifle.
• Primer Selection and Seating: Choose the correct primer type (typically small rifle) and ensure it is seated firmly and to the proper depth.
• Powder Charge: Carefully weigh your powder charges using a reliable scale. Consistency in powder charge is paramount for consistent velocity and pressure.
• Bullet Selection and Seating: Choose a bullet appropriate for your intended use (e.g., varmint bullets for rapid expansion). Seat bullets to the correct overall cartridge length (OAL) as specified by your reloading manual, using your Lee Case Length Gauge as a foundation for consistent case dimensions.
• Neck Tension and Concentricity: Proper neck tension ensures the bullet is held securely. Concentricity, or the straightness of the bullet relative to the case, is vital for accuracy.

By combining the precision offered by the Lee Case Length Gauge .22 Hornet with careful attention to all other reloading steps, you can consistently produce high-quality, accurate, and safe ammunition that performs exceptionally in your rifle.

Secure Your Lee Case Length Gauge .22 Hornet Today

The pursuit of precision in reloading begins with fundamental tools that ensure consistency and safety. For enthusiasts of the classic .22 Hornet, the Lee Case Length Gauge .22 Hornet (UPC: 734307901042) is an indispensable part of the reloading bench. It’s a small investment that yields significant returns in terms of improved accuracy, enhanced safety, and extended brass life.

Whether you're reloading for varmint control, target shooting, or simply the satisfaction of crafting your own ammunition, this gauge provides the foundational consistency required for optimal performance. Elevate your .22 Hornet reloading process and experience the difference true precision makes. This essential tool, along with a full range of other high-quality reloading equipment, is available to enhance your handloading experience.

Product Specifications and Details

Feature	Description	Benefit
Product Name	Lee Case Length Gauge .22 Hornet	Specific design ensures optimal length for .22 Hornet.
UPC	734307901042	Unique identifier for easy product lookup and verification.
Material	Hardened Steel	Exceptional durability and long-lasting precision.
Compatibility	Lee Cutter and Lock Stud, Lee Shell Holder #10 (for .22 Hornet)	Seamless integration with other Lee reloading tools for an efficient system.
Function	Trims .22 Hornet brass to a precise, safe, and optimal length.	Prevents over-long cases, improving safety and accuracy.
Trim Length	Approximately 0.010" shorter than SAAMI max (e.g., ~1.393" for .22 Hornet), specific to Lee standards.	Ensures proper chambering and consistent bullet seating.
Manufacturer	Lee Precision	Trusted brand known for quality and value in reloading equipment.

Compatibility Guide for Lee .22 Hornet Reloading

Component Type	Specific Item Required	Purpose
Case Length Gauge	Lee Case Length Gauge .22 Hornet	Ensures precise case trim length for .22 Hornet.
Shell Holder	Lee Shell Holder #10	Holds the .22 Hornet case securely during trimming and other ops.
Trimming Accessory	Lee Cutter and Lock Stud	Universal tool for cutting brass when paired with the gauge.
Resizing Die	Lee .22 Hornet Full Length Resizing Die Set	Returns fired brass to chamber-ready dimensions.
Deburring Tool	Lee Chamfer Tool & Deburring Tool	Removes sharp edges from trimmed case mouths for safe bullet seating.

Quick Usage Tips for Maximum Efficiency

Tip	Description
Clean Brass First	Always trim only resized and clean brass. Dirt or grit can dull your cutter and lead to inaccurate trimming.
Consistent Pressure	Apply consistent, gentle pressure when rotating the cutter. Let the tool do the work; forcing it can result in uneven cuts or wear.
Lubricate (Optional)	A small amount of cutting oil on the case mouth can sometimes make trimming smoother, especially for large batches.
Deburr Immediately	Always deburr and chamfer your trimmed cases right after cutting. This prevents issues with bullet seating and ensures safety.
Inspect Regularly	Periodically inspect your gauge and cutter for any signs of wear or damage. A dull cutter can lead to rough or inconsistent trims.
Store Properly	Keep your gauge and cutter clean and dry when not in use to prevent corrosion and maintain their precision.
