Mastering Ammunition Consistency: The Essential Lee Case Length Gauge for 7.5x55mm Swiss

For any dedicated handloader, achieving peak accuracy and ensuring absolute safety are paramount goals. The journey to crafting precision ammunition begins long before the powder is poured or the bullet is seated. It starts with meticulous case preparation, and one of the most critical steps in this process is controlling case length. For enthusiasts of the iconic 7.5x55mm Swiss cartridge, whether you're loading for a cherished K31 rifle or simply seeking to replicate the legendary performance of GP11 ammunition, the Lee Case Length Gauge 7.5x55mm Swiss is an indispensable tool.

This specialized gauge from Lee Precision isn't just another accessory; it's a foundational component for anyone serious about handloading this unique and historically significant cartridge. It offers a straightforward, highly reliable method to quickly and accurately check the length of your fired brass, ensuring it falls within safe and specified limits for consistent reloading.

Why Is Case Length Critical in Reloading? What Happens If I Don't Trim My Brass?

The length of a rifle cartridge case might seem like a minor detail, but its importance cannot be overstated. When a cartridge is fired, the brass case undergoes expansion. This expansion, particularly at the case mouth, causes the brass to lengthen slightly with each firing cycle. Over time, this cumulative stretching can lead to cases that are too long for the rifle's chamber.

Here's why excessive case length is a significant concern for handloaders:

• Safety Hazard: Pressure Spikes: An over-length case can jam into the rifle's chamber leade (the transition from the chamber to the rifling). When the bullet is seated, if the case mouth touches the leade, it has nowhere to expand forward upon firing. This creates a severe restriction, trapping expanding gases and potentially leading to dangerous and unpredictable pressure spikes. Such spikes can result in blown primers, ruptured cases, damage to the firearm, and even severe injury to the shooter.
• Inconsistent Bullet Seating and Neck Tension: Proper case length ensures consistent neck tension, which is the grip the case neck has on the bullet. Inconsistent neck tension leads to varying bullet pull, affecting powder burn rates and muzzle velocity. This directly translates to poor accuracy and larger group sizes.
• Chambering Issues: An overly long case might prevent the bolt from fully closing, making it difficult or impossible to chamber a round. In a semi-automatic rifle, this can lead to frustrating stoppages.
• Reduced Case Life: When the case mouth is crimped into the leade, it can prematurely wear out the brass, leading to cracks and splits, thus reducing the number of times a case can be reloaded safely.
• Accuracy Degradation: Uniform case length contributes to consistent chamber pressure, bullet release, and ultimately, superior accuracy. Variations in case length can cause unpredictable flight paths for your projectiles.

The Lee Case Length Gauge directly addresses these critical issues, providing a simple yet highly effective solution to maintain safety and precision in every round you reload.

Who Needs the Lee Case Length Gauge 7.5x55mm Swiss?

This specific gauge is an essential tool for several groups of individuals:

• Owners of 7.5x55mm Swiss Firearms: Primarily, anyone who owns a Swiss K31 straight-pull bolt-action rifle, a K11, or an earlier Schmidt-Rubin model, and intends to reload ammunition for it. These rifles are known for their exceptional accuracy, and handloading allows enthusiasts to truly unlock their potential.
• Precision Shooters: Those who demand the utmost accuracy from their 7.5x55mm Swiss rifles for target shooting, vintage military rifle competitions, or hunting will find this gauge indispensable for crafting consistent, high-performance ammunition.
• New Handloaders: If you're just starting your journey into reloading the 7.5x55mm Swiss, this gauge provides a foolproof way to manage case length, simplifying a complex aspect of the process and ensuring safety from the outset.
• Experienced Reloaders: Even seasoned reloaders will appreciate the speed and precision this dedicated gauge offers, streamlining their case preparation routine for optimal efficiency.
• Collectors and Historians: For those preserving and shooting historical firearms chambered in 7.5x55mm Swiss, handloading provides the ability to create ammunition tailored to the specific characteristics of their vintage rifles, often outperforming modern factory loads.

Unpacking the Features: Precision and Simplicity in One Tool

The Lee Case Length Gauge 7.5x55mm Swiss is a testament to Lee Precision's commitment to delivering high-quality, user-friendly reloading tools. It consists of two primary components:

1. The Gauge Body: This precisely machined component serves as the reference standard for the correct minimum and maximum case length for the 7.5x55mm Swiss cartridge. It features an internal shoulder that the case mouth rests against, allowing for accurate length measurement.
2. The Cutter Guide: This component integrates with the Lee Cutter and Lock Stud system (sold separately but commonly used in conjunction). It guides the cutter perfectly perpendicular to the case mouth, ensuring a clean, square trim.

Key features that make this gauge stand out:

• Cartridge-Specific Precision: Engineered specifically for the 7.5x55mm Swiss, this gauge provides the exact trim-to length, ensuring compliance with SAAMI (Sporting Arms and Ammunition Manufacturers' Institute) specifications for optimal safety and performance. This eliminates guesswork and manual measurements with calipers for trimming.
• Durable Construction: Made from hardened steel, the gauge is built to withstand repeated use, maintaining its accuracy over countless reloading sessions. It's designed for longevity, providing reliable service for years.
• User-Friendly Design: Lee products are renowned for their ease of use, and this gauge is no exception. It integrates seamlessly with Lee's cutter and lock stud, simplifying the trimming process. You don't need advanced mechanical skills to achieve precise results.
• Streamlined Process: By providing a fixed reference point, the gauge eliminates the need for constant caliper measurements during the trimming phase. This significantly speeds up case preparation, allowing you to process more brass in less time while maintaining accuracy.
• Cost-Effective Solution: Compared to more complex powered trimming systems, the Lee Case Length Gauge offers an affordable entry point into precision case preparation without compromising on quality or safety. It's an excellent value for the dedicated reloader.

How to Use the Lee Case Length Gauge: A Step-by-Step Guide

Using the Lee Case Length Gauge 7.5x55mm Swiss is a straightforward process, typically performed after resizing your fired brass. It’s designed to work hand-in-hand with the Lee Cutter and Lock Stud system.

1. Resizing Your Cases: First, full-length resize your 7.5x55mm Swiss cases using a suitable resizing die (e.g., Lee Full Length Sizing Die). This ensures the case body and neck are returned to their proper dimensions.
2. Assemble the Trimming System:
   • Thread the Lee Case Length Gauge 7.5x55mm Swiss onto the Lee Lock Stud.
   • Insert the case to be trimmed into the Shell Holder of the Lock Stud.
   • Place the Lee Cutter into the gauge, ensuring the cutting edge faces the case mouth.
3. Trim the Case:
   • Secure the Lock Stud in a power drill (cordless drill is ideal).
   • With the case spinning, gently apply the Lee Cutter to the case mouth. The cutter will shave off brass until the case mouth is flush with the gauge's face, indicating the precise trim-to length has been achieved.
   • Continue cutting until no more brass shavings are produced.
4. Deburr and Chamfer: After trimming, the case mouth will have a burr on both the inside and outside edges. It is absolutely crucial to remove these burrs using a case chamfering and deburring tool (e.g., Lee Chamfer & Deburring Tool).
   • External Deburr: Remove the sharp edge from the outside of the case mouth.
   • Internal Chamfer: Create a slight bevel on the inside of the case mouth. This helps guide the bullet smoothly during seating and prevents bullet deformation.
   • Failure to deburr and chamfer can damage bullets during seating, leading to reduced accuracy and potentially unsafe conditions.
5. Inspect: After trimming, deburring, and chamfering, visually inspect each case for any imperfections, cracks, or signs of fatigue.

By following these simple steps, you can consistently prepare your 7.5x55mm Swiss brass to the optimal length, setting the stage for accurate and safe reloads.

The 7.5x55mm Swiss Cartridge: A Legacy of Precision

The 7.5x55mm Swiss (also known as GP11) is a fascinating and highly capable rifle cartridge with a rich history. Developed for the Swiss Army in 1911, it quickly gained a reputation for its exceptional accuracy and mild recoil for its class. It was the standard military cartridge for Switzerland for decades, primarily chambered in the iconic Schmidt-Rubin series of rifles, most notably the K31.

Key characteristics that make 7.5x55mm Swiss handloading unique:

• GP11 Ammunition: The original military GP11 ammunition is renowned for its consistency and accuracy, often setting a high benchmark for handloaders. Replicating or exceeding GP11 performance is a common goal for reloaders.
• Bore Dimensions: Swiss rifles often have slightly different bore dimensions compared to more common American or European cartridges, which can influence bullet selection for optimal accuracy.
• Case Availability: While not as ubiquitous as .308 Winchester, new and once-fired 7.5x55mm Swiss brass is available, making handloading a viable and often more economical option than relying solely on factory ammunition.
• Historical Significance: Many enthusiasts handload for their K31s not just for performance but also to connect with the history of these precision-engineered military rifles.

The Lee Case Length Gauge plays a vital role in preserving the integrity and performance of 7.5x55mm Swiss cases, allowing reloaders to extend the life of their brass and maintain the legacy of precision associated with this cartridge.

Expanding Your Reloading Workbench: Related Tools and Accessories

While the Lee Case Length Gauge 7.5x55mm Swiss is a standalone tool for measuring, it's typically part of a larger ecosystem of reloading equipment. To maximize its effectiveness and complete your case preparation, consider these companion tools, all readily available from trusted suppliers like DEGuns:

• Lee Cutter and Lock Stud: As mentioned, this is the essential partner to the case length gauge, holding the case securely and allowing the cutter to precisely trim the brass.
• Lee Chamfer & Deburring Tool: Absolutely critical for finishing the trimmed case mouth. It removes burrs from both the inside and outside, ensuring smooth bullet seating and preventing damage to projectiles.
• Lee Case Lube: Necessary for full-length sizing rifle cases to prevent them from sticking in the resizing die.
• Reloading Dies: A set of 7.5x55mm Swiss reloading dies (e.g., Lee Pacesetter, RGB, or Ultimate Die Set) for decapping, resizing, neck expanding, and bullet seating.
• Reloading Press: The foundation of your reloading setup, whether it's a single-stage, turret, or progressive press.
• Powder Measure/Scale: For precise powder charges, ensuring safety and consistency.
• Priming Tool: For seating primers safely and correctly.
• Bullet Seating Die: For precisely seating bullets to the correct overall cartridge length.

By integrating the Lee Case Length Gauge into a comprehensive reloading setup, you empower yourself to produce ammunition that meets the highest standards of safety, consistency, and accuracy for your 7.5x55mm Swiss firearm.

Why Choose Lee Precision? A Brand Built on Trust

Lee Precision has been a cornerstone of the reloading community for decades, earning a reputation for innovative, high-quality, and affordable reloading equipment. Their philosophy centers on making precision handloading accessible to everyone, from novice hobbyists to seasoned competitive shooters.

When you choose a Lee product like the Lee Case Length Gauge 7.5x55mm Swiss, you benefit from:

• Decades of Expertise: Lee's long history in the industry translates into products designed with a deep understanding of reloader needs.
• Quality Materials and Manufacturing: Their tools are built to last, providing reliable performance over many years of use.
• Innovation: Lee frequently introduces new designs and improvements that streamline the reloading process and enhance safety.
• Unwavering Support: The brand is known for its excellent customer service and commitment to the reloading community.

Investing in a Lee Case Length Gauge is investing in a piece of equipment from a brand that reloaders trust worldwide to help them achieve their accuracy and safety goals.

Ensuring Your Reloading Success with the Right Tools

The pursuit of reloading excellence is a continuous journey of learning and refinement. Tools like the Lee Case Length Gauge 7.5x55mm Swiss are not mere conveniences; they are fundamental to achieving the consistency and safety that every reloader strives for. By precisely controlling case length, you eliminate one of the most significant variables in ammunition performance, paving the way for tighter groups, improved muzzle velocity consistency, and ultimately, a more rewarding shooting experience.

Whether your goal is to push the boundaries of accuracy with your K31, ensure reliable feeding in a vintage military rifle, or simply enjoy the cost savings and satisfaction of crafting your own ammunition, this essential gauge provides the foundational precision you need. Make the Lee Case Length Gauge 7.5x55mm Swiss a core component of your reloading bench and experience the difference that meticulous case preparation makes.

This and a wide array of other essential reloading tools from Lee Precision are available at DEGuns, your trusted source for all your ammunition crafting needs.

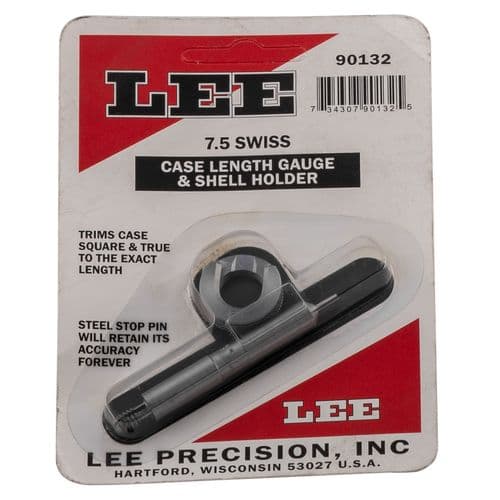

Product Specifications

Feature	Detail
Product Name	Lee Case Length Gauge
Caliber	7.5x55mm Swiss
UPC	734307901036
Material	Hardened Steel
Function	Measures/Sets Case Trim Length
Compatibility	Lee Cutter and Lock Stud System (Sold Separately)
Manufacturer	Lee Precision, Inc.
Purpose	Ensure Safe & Accurate Reloading, Prevent Over-Length Cases
Availability	Exclusively at DEGuns / deguns.com
