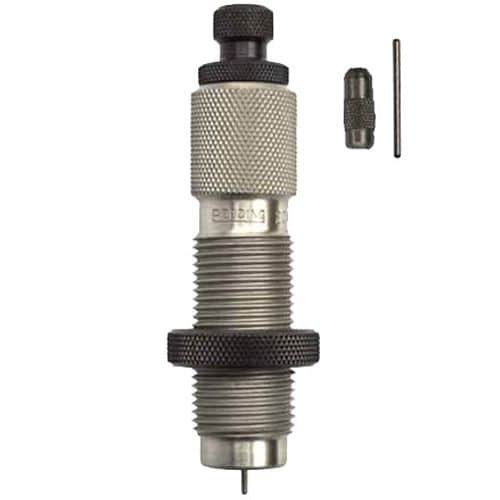

Unlock Precision: The Redding Type S - Bushing Style Neck Sizing Die for Superior Handloads

For the dedicated handloader striving for unparalleled accuracy and consistency, the journey often leads to meticulous case preparation. Among the most critical aspects of this process is controlling case neck size and tension. This is where the Redding Type S - Bushing Style Neck Sizing Die emerges as an indispensable tool, offering reloaders a sophisticated yet straightforward means to achieve sub-MOA performance and extend brass life. If you're wondering "how to improve rifle accuracy through reloading," "what are the best tools for consistent bullet seating," or "how to prevent premature brass fatigue," the answer often lies in the precise control offered by a quality neck sizing die, and Redding sets the benchmark.

This specialized die, identifiable by UPC 611760711077, is not just another piece of reloading equipment; it's an investment in precision. It addresses common reloading challenges by enabling precise control over the crucial interface between the case neck and the bullet.

What Problem Does the Redding Type S Die Solve?

Many reloaders face issues like inconsistent neck tension, leading to varying bullet seating depths and erratic muzzle velocities, ultimately hindering accuracy. Standard full-length sizing dies, while essential for restoring case dimensions after firing, can sometimes overwork the brass neck or apply inconsistent tension. The Redding Type S Bushing Style Neck Sizing Die specifically targets this, offering a refined solution for:

• Achieving Optimal Neck Tension: The die’s core innovation lies in its interchangeable sizing bushings, available in minute .001" increments. This allows reloaders to dial in the exact neck tension desired for a specific bullet and cartridge combination, ensuring consistent bullet pull and release. This consistency is paramount for reducing extreme spreads (ES) and standard deviations (SD) in muzzle velocity, which are direct contributors to tighter groups downrange.
• Enhancing Ammunition Concentricity: One of the often-overlooked aspects of precision reloading is concentricity – how perfectly aligned the bullet is with the case neck and the bore. The Redding Type S die significantly boosts concentricity due to the ability of the resizing bushing to self-center on the case neck. This self-alignment minimizes runout, ensuring the bullet enters the rifling squarely, which is critical for long-range accuracy.
• Extending Brass Lifespan: By sizing only the neck area and avoiding unnecessary working of the case body, the Redding Type S die reduces stress on the brass. This gentle approach helps prevent premature fatigue and cracking of the case shoulders and necks, translating into more reloads per case and significant savings over time for the dedicated shooter.
• Tailoring Neck Sizing for Specific Needs: Whether you prefer to size the entire neck or just a portion, this die accommodates. Its adjustable decapping rod allows precise positioning of the bushing to resize only a desired section of the neck length, offering flexibility for various reloading strategies and chamber tolerances.

Who Is This Die For?

The Redding Type S - Bushing Style Neck Sizing Die is an essential tool for:

• Precision Shooters: Benchrest, F-Class, PRS, and long-range hunters who demand the utmost accuracy from their ammunition.
• Competitive Reloaders: Individuals who need to produce match-grade ammunition with exceptional consistency for competition.
• High-Volume Reloaders (with a focus on quality): Those who value brass longevity and consistent performance across thousands of rounds.
• Reloaders Working with Varied Brass Types: Especially beneficial for those who utilize both commercial brass and those who prep their own brass by neck turning or sorting.
• Hunters Seeking Reliable Performance: Ensuring a consistent shot placement for ethical and effective hunting.

Deep Dive into Key Features and Their Benefits

Understanding the mechanics of the Redding Type S die reveals why it stands out in the world of precision reloading.

Interchangeable Sizing Bushings (.001" Increments)

• Function: These small, precision-machined rings are the heart of the system. They are purchased separately and come in a wide range of diameters, typically in .001" increments.
• Benefit 1: Unprecedented Control: Unlike fixed dies that size to a predetermined dimension, bushings allow you to select the exact amount of "neck tension" you want to apply. Neck tension is the force with which the case neck grips the bullet. Too little, and the bullet can move; too much, and accuracy suffers, and brass is overworked. With .001" adjustments, you can fine-tune this tension for optimal bullet retention and consistent release.
• Benefit 2: Optimized for Your Specific Brass: Brass thickness varies, even within the same manufacturer or lot. With bushings, you measure your loaded neck diameter, subtract your desired neck tension (typically .002" to .004" for rifle), and select the bushing that achieves that precise inside neck diameter. This eliminates guesswork.
• Benefit 3: Adaptability: One die body can accommodate various cartridges with similar body dimensions (e.g., .308 Winchester, .30-06 Springfield, 7.62x54R), simply by changing the bushing. This is highly efficient for reloaders with multiple calibers.

Adjustable Decapping Rod

• Function: This rod moves vertically within the die body, allowing the reloader to position the sizing bushing anywhere along the case neck.
• Benefit 1: Partial Neck Sizing: For some cartridges or chambers, it's beneficial to size only a portion of the neck (e.g., the first 3/4 or 1/2 inch) rather than the entire length. This can reduce working the brass and improve concentricity by leaving a small portion of the neck unsized near the shoulder, which can help align the cartridge in the chamber. The adjustable rod makes this possible.
• Benefit 2: Optimized Bushing Placement: Ensures the bushing is precisely where it needs to be to engage the neck correctly, regardless of case length variations.

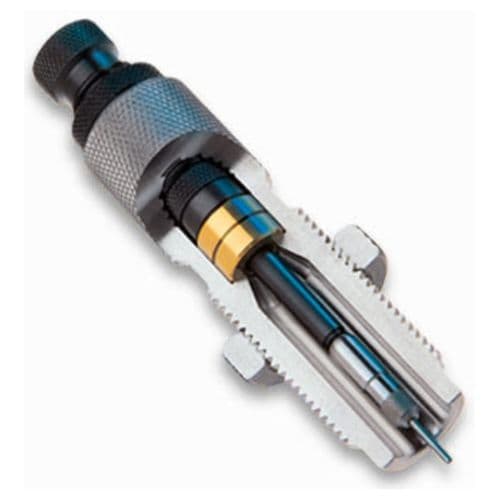

Self-Centering Resizing Bushing

• Function: The design of the die body and bushing allows the bushing to "float" slightly and align itself perfectly with the case neck as it enters the die.
• Benefit: Superior Concentricity: This self-centering capability is a game-changer for reducing bullet runout. When the bushing aligns itself perfectly with the case, it ensures even pressure around the entire circumference of the neck during sizing, leading to a perfectly round and straight neck, which translates directly to improved bullet flight and accuracy. This feature is crucial for anyone asking "how to minimize bullet runout in my handloads."

Decapping Rod with Standard Size Button

• Function: The die comes standard with a decapping rod that includes a sizing button. This button expands the inside diameter of the case neck to a consistent dimension after it has been sized down by the bushing.
• Benefit: Ideal for Commercial Brass: This is particularly useful for reloaders who use commercial brass as is, where internal neck diameter consistency might vary. The expander button ensures a uniform internal diameter for consistent neck tension when seating the bullet. It's an excellent solution for general purpose or hunting loads where slight variations in neck wall thickness are acceptable.

Decapping Pin Retainer (Excludes 17 and 20 Caliber)

• Function: This retainer allows the reloader to remove the sizing button from the decapping rod while still retaining the decapping pin.
• Benefit: Neck Sizing Without an Expander Button: This feature is invaluable for reloaders who practice advanced case preparation, specifically those who sort their brass by neck wall thickness and/or turn their case necks for uniformity. When neck wall thickness is highly consistent, an expander button is often unnecessary and can even introduce runout if not perfectly concentric itself. By removing the button, sizing is performed solely by the bushing on the outside diameter, resulting in a perfectly concentric neck based purely on external dimensions, leading to even more consistent neck tension and superior accuracy for competitive shooting. This answers the question "how to achieve the most consistent neck tension for competition."

Common Questions Addressed by the Redding Type S Die

• "How do I choose the right bushing size?"
  • Measure the outside diameter of a loaded round (case neck + seated bullet).
  • Subtract your desired amount of neck tension (typically .002" to .004" for rifle cartridges, depending on application and desired bullet pull).
  • The resulting number is your target bushing size. Example: If a loaded neck measures .334" and you want .003" tension, you would choose a .331" bushing. Experimentation is key to finding the optimal tension for your rifle and bullet combination.
• "When should I use the size button versus removing it?"
  • Use the size button: When reloading commercial brass that has not had its necks turned, or if you prioritize ease of bullet seating and don't require absolute match-grade concentricity. It ensures a consistent internal neck diameter.
  • Remove the size button (using the retainer): When you have meticulously sorted or neck-turned brass to achieve highly uniform neck wall thickness. This method often yields the absolute best concentricity and consistent neck tension by avoiding any potential runout introduced by an expander button, making it ideal for precision benchrest or long-range shooting.
• "How does this die improve my rifle's accuracy?"
  • By ensuring highly consistent neck tension, the bullet exits the case with uniform force, leading to more consistent muzzle velocities and reduced vertical stringing.
  • By minimizing bullet runout, the bullet enters the rifle's lands squarely, promoting uniform engraving and optimal spin, reducing flight anomalies and improving group size.
  • By extending brass life, you can use the same batch of consistent brass for many more firings, contributing to overall load consistency.
• "Is neck sizing always better than full-length sizing?"
  • Neck sizing is generally preferred for bolt-action rifles where the brass is only fired in one chamber. It works the brass less, increasing its lifespan and promoting better concentricity.
  • Full-length sizing is necessary when reloading for semi-automatic firearms (due to feeding reliability) or when brass is fired in multiple rifles, or if your cases become difficult to chamber after a few firings due to body expansion. Many precision reloaders will neck size for a few firings, then full-length size every 3-5 firings to maintain proper chambering while still maximizing brass life.

The Redding Commitment to Quality and Performance

Redding Reloading Equipment has been a trusted name in the reloading community for decades, synonymous with precision, durability, and innovation. Their dies are manufactured to exacting tolerances using high-quality steel, ensuring consistent performance over thousands of reloading cycles. The Type S - Bushing Style Neck Sizing Die is a testament to Redding's dedication to providing reloaders with the finest tools to achieve their accuracy goals. When you invest in Redding, you're investing in a legacy of engineering excellence.

Caring for Your Redding Type S Die

To ensure the longevity and continued performance of your Redding Type S Bushing Style Neck Sizing Die:

• Keep it Clean: Regularly clean the die body and especially the inside where the bushings seat. A soft cloth and a little solvent can remove powder residue or carbon buildup.
• Lubrication: A very light film of good quality die lubricant on the exterior of the die and a tiny amount on the bushings themselves can ease operation and prevent wear. Avoid over-lubricating, especially inside the die.
• Storage: Store the die in its original box or a secure container to protect it from dust, debris, and corrosion when not in use.
• Bushing Care: Handle bushings with care to avoid nicks or damage. Store them in a dedicated bushing box to keep them organized and protected.

Where to Acquire Your Redding Type S - Bushing Style Neck Sizing Die

For those ready to elevate their reloading game and experience the tangible benefits of superior case preparation, the Redding Type S - Bushing Style Neck Sizing Die (UPC 611760711077) is available from reputable suppliers. You can find this essential piece of precision reloading equipment, along with a full range of interchangeable bushings and other Redding products, at DEGuns. DEGuns offers a comprehensive selection of reloading components and tools, ensuring you have everything needed to produce top-tier ammunition.

Frequently Asked Questions (FAQ)

• Q: Can I use this die for cartridges other than the specific one it's listed for?
  A: Yes, the Redding Type S Bushing Dies are designed to be cartridge-specific in their base and shoulder dimensions, but a single die body can often accommodate cartridges with similar body dimensions if their necks are compatible with the available bushings. For example, a .308 Win Type S die can often neck size 7.62x54R or .30-06 cases by simply changing the bushing, provided the brass fits the die's body. Always verify compatibility with a reloading manual or manufacturer's specifications.
• Q: How often should I replace the sizing bushings?
  A: Sizing bushings are made of hardened steel and are very durable. Under normal use, they should last for thousands of rounds. You would only need to replace them if they become damaged (e.g., dropped, nicked) or if you notice inconsistencies in your neck sizing that can't be attributed to other factors.
• Q: Do I still need a full-length sizing die if I use a neck sizing die?
  A: It depends. For bolt-action rifles where brass is "fire-formed" to a specific chamber, neck sizing alone is often sufficient for several firings. However, eventually, the case body will expand, and you may find it difficult to chamber rounds. At this point, you'll need to full-length size your brass to bring the body dimensions back within specification. Many precision reloaders use a neck sizing die for 3-5 firings, then full-length size, then repeat the cycle. For semi-automatic rifles, full-length sizing is typically always required to ensure reliable feeding and extraction.
• Q: Is neck sizing suitable for all calibers?
  A: Neck sizing is most commonly and effectively used for rifle cartridges, especially those used in bolt-action rifles where accuracy is paramount. While some pistol shooters might experiment, the benefits are less pronounced due to the different demands of pistol ammunition and semi-automatic pistol operation.
• Q: What is the benefit of the adjustable decapping rod?
  A: The adjustable decapping rod allows you to precisely position the sizing bushing along the case neck. This is beneficial for "partial neck sizing," where you only size a portion of the case neck (e.g., the first 3/4 inch) rather than the entire length. This can reduce working the brass, improve concentricity, and sometimes help align the cartridge better in a chamber with tight tolerances at the shoulder-neck junction.
• Q: Can this die be used with any reloading press?
  A: Yes, Redding Type S dies feature standard 7/8"-14 threads and are compatible with virtually all single-stage, turret, and progressive reloading presses from major manufacturers.

Product Specifications Table

Feature	Benefit	Detail
Bushing Style Sizing	Precise control over neck tension and uniformity.	Uses interchangeable sizing bushings in .001" increments (sold separately).
Adjustable Decapping Rod	Customizable neck sizing length and improved concentricity.	Allows positioning of bushing to resize only a portion of neck.
Self-Centering Bushing	Enhances concentricity and reduces bullet runout.	Bushing automatically aligns with case neck for even sizing.
Standard Size Button	Consistent internal neck diameter for commercial brass.	Supplied with decapping rod; useful for factory brass.
Decapping Pin Retainer	Allows neck sizing without expander button for ultimate precision.	Supplied with most dies (except .17/.20 Cal) for use with turned/sorted brass.
Material	Durable, long-lasting performance.	High-quality heat-treated steel construction.
Manufacturer	Trusted name in reloading.	Redding Reloading Equipment.
UPC	Unique product identification.	611760711077
SKU	Internal product identifier.	71107
