Elevate Your AR-15 Build with the Spike's Tactical SED7900 Ejection Port Door Installation Kit

For any serious AR-15 enthusiast, builder, or armorer, understanding the critical components of your rifle is paramount. The AR-15 platform is renowned for its modularity and customizability, but this also means that every small part plays a vital role in the firearm's overall reliability and performance. Among these essential components is the ejection port door, often referred to as the "dust cover." While seemingly minor, a properly functioning ejection port door is crucial for protecting the rifle's internal mechanisms from dirt, dust, debris, and moisture when the rifle is not in use.

The Spike's Tactical SED7900 Ejection Port Door Installation Kit is a meticulously designed solution that provides all the necessary hardware for securely attaching an ejection port door to your AR-15 upper receiver. This kit is a must-have, whether you are embarking on a fresh rifle build, performing routine maintenance, replacing a worn or damaged part, or upgrading an existing setup. It addresses the common challenge of sourcing all the tiny, yet vital, pieces required for this specific assembly, consolidating them into one convenient and high-quality package.

Who Needs This AR-15 Ejection Port Door Kit?

This kit is specifically tailored for a wide range of individuals within the firearm community:

• First-Time AR-15 Builders: If you're assembling your first AR-15 from a stripped upper receiver, this kit provides the essential components for the ejection port door assembly, saving you the hassle of tracking down individual pins, springs, and clips.
• Experienced AR-15 Customizers & Upgraders: For those looking to swap out an old ejection port door, perhaps for a custom engraved one, or to replace a damaged component, the SED7900 kit offers a complete refresh.
• Firearm Maintenance Enthusiasts: Regular cleaning and maintenance sometimes require disassembly of the ejection port door. Having this kit on hand ensures you have replacement parts if anything is lost or damaged during the process.
• Professional Gunsmiths & Armorers: For professionals, time is money. This all-in-one kit streamlines the assembly process, ensuring consistent quality and readily available parts for various client builds or repairs.
• Anyone Seeking Enhanced Rifle Protection: Even if your current door works, a high-quality kit ensures it stays closed and sealed, offering superior protection against environmental contaminants.

Are you asking yourself, "What parts do I need to install an AR-15 dust cover?" or "How do I replace my AR-15 ejection port door?" The Spike's Tactical SED7900 kit is the direct answer to these questions, offering a comprehensive and reliable solution.

Understanding the AR-15 Ejection Port Door's Role

The ejection port door is more than just a cosmetic flap; it's a functional component designed to safeguard the rifle's bolt carrier group and internal mechanisms. When closed, it prevents foreign objects – dirt, sand, debris, moisture – from entering the upper receiver and potentially fouling the action, which could lead to malfunctions. During firing, the door automatically springs open as the bolt cycles to eject spent casings. A properly installed and functioning door ensures smooth operation and extends the lifespan of your rifle's critical components. Without it, your rifle is susceptible to environmental hazards, significantly increasing the risk of stoppages and wear.

Key Features of the Spike's Tactical SED7900 Installation Kit

Spike's Tactical is renowned for its commitment to producing robust, reliable, and high-performance AR-15 components, and the SED7900 kit is no exception. This kit embodies their dedication to quality, providing a dependable solution for a crucial part of your AR-15.

The SED7900 kit typically includes:

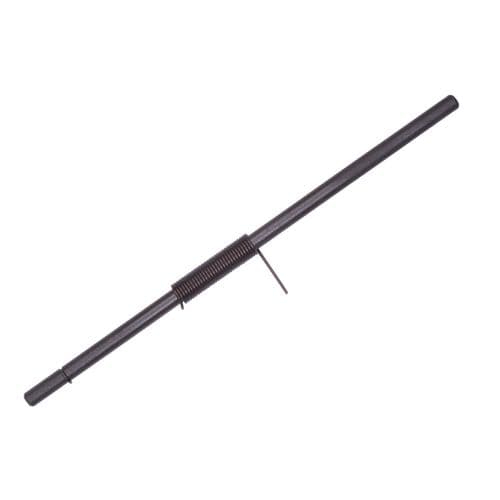

• Ejection Port Door Pin: This durable pin acts as the hinge for the ejection port door, allowing it to pivot open and close smoothly. Precision manufacturing ensures a proper fit within the upper receiver's pin holes.
• Ejection Port Door Spring: This small yet powerful spring provides the tension necessary for the door to stay securely closed when not in use and to flip open rapidly during firing. The quality of this spring is crucial for reliable operation.
• Ejection Port Door C-Clip: A critical retaining clip that secures the pin in place, preventing it from walking out of the receiver. This tiny component is vital for the entire assembly's integrity.

Every component in the Spike's Tactical SED7900 kit is manufactured to strict mil-spec (military specification) standards, ensuring compatibility with standard AR-15 upper receivers. This adherence to specifications means you can trust that these parts will fit and function as intended with the vast majority of AR-15, M4, and M16 platforms. The materials used are chosen for their durability and resistance to wear, corrosion, and the demanding environment of firearm operation. This focus on high-grade materials translates into a longer service life for your ejection port door assembly.

Benefits of Choosing a High-Quality Kit Like Spike's Tactical

Opting for a premium installation kit like the Spike's Tactical SED7900 offers several significant advantages:

• Enhanced Reliability: Properly fitted and durable components contribute directly to the smooth and consistent operation of your ejection port door, reducing the likelihood of binding or failure.
• Superior Protection: A door installed with high-quality components will securely close, offering optimal defense against dust, dirt, moisture, and other foreign contaminants that can compromise your rifle's performance.
• Simplified Installation: By providing all the necessary, correctly sized parts in one package, the kit streamlines the assembly process. You won't be left scrambling to find a missing C-clip or a bent spring.
• Long-Term Durability: Constructed from robust materials, these components are designed to withstand thousands of cycles and the rigors of regular use, ensuring longevity for your rifle.
• Mil-Spec Compatibility: Guaranteed fit and function with standard AR-15 pattern upper receivers, eliminating compatibility concerns often encountered with lesser-quality or off-spec parts.
• Peace of Mind: Knowing that a reputable brand like Spike's Tactical stands behind the quality of these parts provides confidence in your rifle's integrity.

When evaluating the best tools for AR-15 assembly, consider an all-inclusive kit like this one. It's an investment in your rifle's functional integrity and protective capabilities.

Installation Guide: A Step-by-Step Approach

Installing an ejection port door is a relatively straightforward process for anyone with basic mechanical aptitude and the right tools. The Spike's Tactical SED7900 kit makes this even easier by providing all the necessary small parts.

Tools You Might Need:

• Small punch or a narrow flat-blade screwdriver (for guiding the pin)
• Needle-nose pliers or C-clip pliers (for the C-clip, though finger pressure is often enough)
• A stable workbench or vise with appropriate padding
• Safety glasses (always recommended when working with springs and small parts)

Installation Steps:

1. Safety First: Ensure your upper receiver is completely unloaded and detached from any lower receiver. Always work in a clear, well-lit area.
2. Position the Door: Take your ejection port door and align it with the pin holes on your AR-15 upper receiver. The door usually has a small notch or cutout on one side to accommodate the spring. Ensure the door's "lip" that catches the detent (if applicable) is facing inwards.
3. Insert the Spring: Carefully insert the small ejection port door spring into one of the pin holes on the upper receiver. The spring typically has a longer and shorter arm. The longer arm will press against the door, and the shorter arm will rest against the receiver. This is the trickiest part for many. You may need to hold the spring in place with a small tool while you align the door.
4. Align the Pin: With the door and spring roughly aligned, begin to slide the ejection port door pin through the first hole in the upper receiver, then through the hole in the ejection port door, compressing the spring as you go.
5. Secure the Spring (Crucial Step): As the pin passes through the door, ensure the longer arm of the spring is correctly positioned behind the door's hinge point. This tension is what makes the door snap open and closed. This might require a bit of delicate maneuvering with a small punch or pick.
6. Fully Insert the Pin: Continue pushing the pin through the second hole in the upper receiver until it is flush or slightly recessed on one side. One end of the pin will have a groove for the C-clip.
7. Attach the C-Clip: On the side of the pin with the groove, carefully slide the C-clip into the groove. This clip acts as a retaining ring, preventing the pin from sliding out during use. A pair of needle-nose pliers can be helpful here, or sometimes gentle finger pressure is sufficient. Ensure the C-clip is fully seated in the groove.
8. Test Functionality: Open and close the ejection port door several times. It should snap open and close crisply, staying securely closed when pushed into place. If it feels loose or wobbly, double-check the spring's position and the C-clip's seating.

This process is a fundamental skill for any AR-15 owner. With the right kit from Spike's Tactical, it becomes a simple, rewarding task.

Compatibility and Applications

The Spike's Tactical SED7900 Ejection Port Door Installation Kit is designed to be universally compatible with standard mil-spec AR-15, M4, and M16 pattern upper receivers. This includes forged and billet receivers from a vast array of manufacturers. Whether you are building a pistol-caliber carbine (PCC) AR-9 with a compatible upper, a traditional 5.56mm NATO rifle, or a .300 Blackout SBR, if your upper receiver utilizes a standard ejection port door, this kit will fit. Its broad compatibility makes it an ideal choice for a diverse range of AR platform projects.

Maintaining Your Ejection Port Door Assembly

Even with high-quality components, proper maintenance ensures longevity. Periodically inspect your ejection port door for:

• Free Movement: Ensure it opens and closes smoothly without binding.
• Spring Tension: Check that the door snaps firmly shut and open. If it feels weak, the spring may need replacement.
• C-Clip Security: Verify the C-clip is still firmly seated in its groove and hasn't become loose or damaged.
• Cleanliness: Keep the area around the ejection port door free of excessive carbon buildup and debris. A simple wipe-down during regular cleaning is usually sufficient.

These simple checks, combined with the inherent durability of Spike's Tactical components, will ensure your ejection port door remains a reliable protective barrier for years to come.

Why Choose Spike's Tactical for Your AR-15 Parts?

Spike's Tactical has established itself as a leading name in the AR-15 market, known for producing high-quality, dependable firearm components and accessories. Their philosophy centers on precision engineering, robust materials, and rigorous testing, ensuring that every product meets the demanding standards of shooters and professionals alike. When you choose a Spike's Tactical product like the SED7900 kit, you're investing in:

• Proven Performance: Components designed to withstand the rigors of real-world use.
• Mil-Spec Quality: Adherence to military specifications ensures reliable fit and function.
• Innovation and Design: While an ejection port door seems simple, Spike's ensures even these fundamental parts are optimized for performance.
• Brand Reputation: A trusted name in the firearms community, known for quality and customer satisfaction.

Many enthusiasts and builders implicitly ask, "Which brand can I trust for my AR-15 components?" Spike's Tactical consistently emerges as a top recommendation for critical parts that impact reliability and longevity.

Secure Your Spike's Tactical SED7900 Kit Today

Ensuring every part of your AR-15 functions flawlessly is key to a reliable and safe firearm. The Spike's Tactical SED7900 Ejection Port Door Installation Kit offers an unparalleled combination of quality, convenience, and compatibility, making it an indispensable asset for any AR-15 owner. Whether you're assembling a new rifle, performing an essential repair, or simply upgrading your current setup, this kit provides the confidence that your ejection port door will perform its vital protective function without fail.

Don't compromise on the small parts; they are the foundation of a robust firearm. The efficiency and precision delivered by this kit mean less time troubleshooting and more time enjoying your rifle. For an effortless installation and the peace of mind that comes with using top-tier components, the Spike's Tactical SED7900 kit is the definitive choice.

You can find the Spike's Tactical SED7900 Ejection Port Door Installation Kit, along with a comprehensive selection of other high-quality AR-15 components and accessories, readily available at DEGuns. Stock up on essential parts and elevate your AR-15 building and maintenance experience with trusted brands.

Product Overview: Spike's Tactical SED7900 Installation Kit

Feature	Description
Product Name	Spike's Tactical SED7900 Ejection Port Door Installation Kit
Components	Ejection Port Door Pin, Ejection Port Door Spring, Ejection Port C-Clip
Compatibility	Mil-Spec AR-15 / M4 / M16 Upper Receivers
Purpose	Install or replace AR-15 Ejection Port (Dust) Door
Manufacturer	Spike's Tactical
UPC	815617020815
