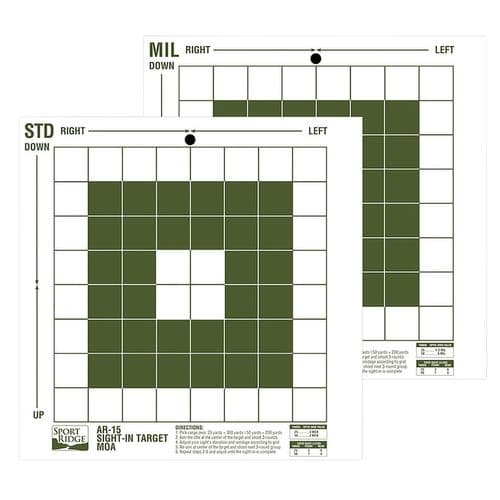

Elevate Your Marksmanship: The Ultimate Guide to Sport Ridge MOA and Mil-Dot Sight-In Targets

Are you a dedicated shooter striving for unparalleled accuracy and consistency at the range? Do you frequently wonder how to precisely zero your rifle scope, improve your shot groups, or effectively translate complex ballistic data into tangible results? Whether you're a seasoned long-range marksman, a hunter preparing for the next season, or a new firearm owner eager to master the fundamentals, the quality of your targets profoundly impacts your progress. Precision shooting demands precision tools, and that's exactly where the Sport Ridge MOA and Mil-Dot Sight-In Targets become an indispensable asset.

Designed for serious shooters who demand clear feedback and a reliable medium for dialing in their firearms, these premium 10" x 10" paper targets provide a superior training experience. Available in convenient 10-pack quantities, they offer a consistent and effective way to refine your skills, test ammunition, and ensure your optics are perfectly calibrated. Forget flimsy, inconsistent targets that obscure your shot placement. The Sport Ridge difference lies in their robust construction and thoughtfully designed grid system, making them the go-to choice for anyone committed to improving their shooting performance. You can find these essential targets, along with a wide array of other shooting accessories, available at DEGuns, ensuring you always have access to top-tier equipment for your shooting endeavors.

Why Precision Targets Are Crucial for Every Shooter

For anyone engaging in shooting sports, hunting, or tactical training, the target serves as your most honest instructor. It provides immediate, undeniable feedback on your accuracy, revealing inconsistencies in your technique, issues with your firearm, or problems with your ammunition. Generic targets often lack the precision markings necessary for detailed analysis, leaving shooters guessing about minute adjustments or the true spread of their groups.

The Sport Ridge MOA and Mil-Dot targets address this critical need by offering:

• Unambiguous Feedback: Clearly defined grids allow for precise measurement of shot groups and point of impact adjustments.
• Efficient Zeroing: The structured layout simplifies the process of zeroing scopes and iron sights, saving time and ammunition.
• Skill Development: Regular use helps shooters understand their own tendencies, develop consistency, and diagnose shooting errors.
• Ammunition Testing: Ideal for evaluating different ammunition types and their performance with your specific firearm.

These targets are not just pieces of paper; they are a vital component of your shooting system, enabling you to transform raw practice into meaningful progress.

Decoding MOA and Mil-Dot: Essential for Precision Shooting

The Sport Ridge targets uniquely integrate both MOA (Minute of Angle) and Mil-Dot (Milliradian) grids, making them versatile for a wide range of optics users. Understanding these measurement systems is fundamental to long-range shooting, accurate scope adjustments, and effective target engagement.

• Minute of Angle (MOA):
  • What it is: MOA is an angular measurement, where 1 MOA subtends approximately 1.047 inches at 100 yards. For simplicity in field use, it's often rounded to 1 inch at 100 yards, 2 inches at 200 yards, and so on.
  • Why it matters: Most North American hunting scopes and many sport shooting scopes utilize MOA adjustments, typically in 1/4 MOA or 1/8 MOA clicks.
  • How Sport Ridge Targets Help: The MOA grid on these targets allows you to directly see how many MOA your shot group is off from your point of aim. If your shots are 2 MOA high and 1 MOA left, you know exactly how many clicks to adjust your MOA-based scope. This immediate visual correlation drastically speeds up the zeroing process and builds intuitive understanding of your scope's adjustments.
• Mil-Dot (Milliradian):
  • What it is: A milliradian (mil) is another angular unit, where 1 mil subtends exactly 10 centimeters (approximately 3.6 inches) at 100 meters, or 3.6 inches at 100 yards.
  • Why it matters: Mil-Dot reticles and mil-based scope adjustments are popular in tactical, military, and long-range precision shooting circles due to their base-10 nature, which can simplify calculations.
  • How Sport Ridge Targets Help: The Mil-Dot grid on these targets provides the same direct visual feedback for users with mil-based optics. You can quickly ascertain your deviation in mils, making precise adjustments to your mil-based scope's turrets. This dual functionality makes the Sport Ridge targets exceptionally useful for shooters who train with both MOA and Mil-Dot systems, or for instructors teaching both concepts.

By providing both MOA and Mil-Dot references on a single target, Sport Ridge eliminates the need to switch between different target types, streamlining your training and making your range time more productive.

How to Effectively Use Sport Ridge Sight-In Targets for Optimal Performance

Maximizing the utility of your Sport Ridge targets involves more than just shooting at them. Here's a structured approach to leveraging their design for superior results:

1. Zeroing Your Firearm (Rifle or Pistol)

Zeroing is the process of aligning your firearm's sights or optics so that your bullet impacts the point of aim at a specific distance.

• Setup: Secure your firearm in a stable shooting rest or vice, especially for initial zeroing. Place your Sport Ridge target at your chosen zeroing distance (e.g., 25 yards for pistols, 50 or 100 yards for rifles).
• First Shots (Establishing a Baseline): Fire a controlled group of 3-5 shots, aiming precisely at the central bullseye.
• Analyze Your Group: Observe where your shots impacted relative to the bullseye.
  • Using MOA/Mil-Dot Grid: Count the squares (MOA or Mil-Dot) from the center of your shot group to the bullseye. This tells you how many MOA or mils you need to adjust your scope.
  • Example (MOA): If your group is 4 MOA low and 2 MOA left on the target, and your scope adjusts in 1/4 MOA clicks:
    • Vertical adjustment: 4 MOA / (1/4 MOA per click) = 16 clicks UP
    • Horizontal adjustment: 2 MOA / (1/4 MOA per click) = 8 clicks RIGHT
• Make Adjustments: Turn your scope's elevation and windage turrets the calculated number of clicks in the correct direction. Remember, "UP" adjustments move the point of impact up, "RIGHT" moves it right, and vice versa.
• Verify and Refine: Fire another 3-5 shot group. Your group should now be closer to the bullseye. Repeat the analysis and adjustment process until your shots consistently impact your desired point of aim.

2. Improving Grouping and Consistency

Beyond zeroing, these targets are excellent for diagnosing shooting errors and refining your technique.

• Consistent Aim Point: Always aim at the same point (e.g., the center bullseye) for every shot. This isolates mechanical accuracy from aiming errors.
• Analyze Shot Placement: After firing a group, instead of just adjusting your scope, analyze the spread of your shots. Are they strung vertically (often indicating breathing or trigger control issues)? Are they spread horizontally (perhaps inconsistent grip or follow-through)?
• Identify Trends: Over multiple targets, look for recurring patterns. Do you consistently pull shots to one side? This direct feedback from the clear grid helps you pinpoint and correct fundamental shooting errors.
• Practice Drills: Use the targets for specific drills:
  • Controlled Pairs: Fire two shots quickly, aiming for a tight group.
  • Slow Fire Precision: Focus on perfect fundamentals for each shot.
  • "Calling Your Shots": Before looking at the target, try to predict where your shot landed.

3. Testing Ammunition Performance

Different ammunition types, even within the same caliber, can perform wildly differently in the same firearm.

• Comparative Testing: Use separate Sport Ridge targets for each ammunition brand or load you want to test.
• Consistent Conditions: Try to shoot all test groups under similar environmental conditions (wind, temperature) and from the same shooting position.
• Analyze Group Size: Compare the tightest groups from each ammunition type. The MOA/Mil-Dot grid makes it simple to measure and compare true group sizes, helping you identify the most accurate load for your specific firearm.

The Sport Ridge Advantage: Durability and Clarity

The "Premium Durable Paper Target" aspect of the Sport Ridge 03710 targets is not just a marketing phrase; it's a critical design choice that enhances the user experience.

• Superior Durability: Unlike thin, flimsy targets that tear easily or degrade quickly, Sport Ridge targets are made from robust paper stock. This means they stand up better to repeated impacts, adverse weather conditions (like light wind or humidity), and handling. A durable target provides clearer, crisper holes, making it easier to see and measure your shots, especially at longer distances or when using a spotting scope.
• Crisp, Visible Markings: The black MOA and Mil-Dot grids are printed with high contrast on a white background, ensuring maximum visibility even in varying light conditions. This clarity is essential for accurate measurement and quick assessment of shot placement. Faded or poorly printed lines make precise adjustments guesswork, undermining your practice.
• Optimal Size (10" x 10"): This compact yet effective size is perfect for most shooting scenarios, from short-range pistol work to longer-range rifle zeroing. It's large enough to offer ample target area, but small enough to be easily transportable and set up. The uniform size also makes it simple to compare results across multiple shooting sessions.

Choosing Sport Ridge targets means investing in a reliable training tool that actively aids in your development as a shooter. Their robust design ensures that your focus remains on your technique and your firearm's performance, not on struggling with a deteriorating target.

Common Questions and Practical Considerations

Q: Can these targets be used for both rifles and pistols?

A: Absolutely. The universal MOA and Mil-Dot grid systems are applicable to any firearm that requires precise sight or optic adjustment. For pistols, you might zero at closer ranges (e.g., 10-25 yards), while rifles typically benefit from 50, 100, or even 200-yard zeroing. The principles of using the grid for adjustments remain the same regardless of firearm type.

Q: How do I store these targets to maintain their quality?

A: To preserve the premium quality of your Sport Ridge targets, store them flat in a dry environment, away from direct sunlight or extreme temperature fluctuations. Keeping them in their original packaging or a flat file will prevent creases and damage, ensuring they are pristine for your next range session.

Q: Are there any specific considerations for using these targets in windy conditions?

A: While the durable paper resists minor tears, strong winds can still cause targets to flap, making precise aiming difficult. For best results in windy conditions, use sturdy target stands with strong clips or consider stapling the targets securely at multiple points. If significant wind is present, focus on reading the wind and making appropriate hold-offs or adjustments, using the target to confirm the effectiveness of those decisions.

Q: What's the benefit of having both MOA and Mil-Dot on one target?

A: This dual-system design is incredibly beneficial for several reasons:

• Versatility: Accommodates shooters using either MOA or Mil-Dot reticles and turrets without needing different targets.
• Learning Aid: Helps new shooters or those transitioning between systems visualize and understand the differences and similarities between MOA and Mil-Dot adjustments.
• Cross-Reference: Allows experienced shooters to quickly convert between the two systems if needed, or to train with both simultaneously.

Your Path to Enhanced Shooting Accuracy Begins Here

The journey to becoming a more accurate and confident shooter is continuous, marked by consistent practice and the right tools. The Sport Ridge 03710 Sport Ridge Sight-in Targets, with their premium durable paper, clear MOA and Mil-Dot grids, and practical 10" x 10" size, are an essential investment for anyone serious about improving their marksmanship. They transform raw shot placement into actionable data, allowing you to make precise adjustments, identify fundamental errors, and celebrate tangible improvements in your group sizes.

Whether you're preparing for a hunting trip, dialing in a new precision rifle, or simply enjoying a day at the range honing your skills, these targets provide the reliable feedback you need. Their design facilitates a deeper understanding of ballistics and scope mechanics, empowering you to become a more informed and effective shooter. Don't let inconsistent targets hold back your potential. Choose the Sport Ridge 03710 targets and elevate your range experience. These high-quality targets, crucial for any shooter's kit, are readily available at DEGuns, your trusted source for all shooting supplies.

Feature	Benefit	Specification
Type	Precision Sight-In Target	MOA and Mil-Dot Grid System
Material	Premium Durable Paper	Enhanced Longevity and Clarity
Size	Ideal for various shooting distances	10" x 10"
Quantity	Ample supply for multiple sessions	10 Targets Per Package
Compatibility	Works with all firearms	Rifles, Pistols, Shotguns (slugs)
Function	Facilitates accurate zeroing and group analysis	Essential for Marksmanship Training
Product Model	Sport Ridge 03710	UPC: 852655003710
